All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Includes all mechanical components for Bally pinball machine left and right side linear style flipper assemblies on games with 3 flipper units manufactured from May 1980 through November 1988.
These linear style flipper assemblies have no fiber links connecting the coil plunger to the crank as do conventional flipper mechanisms.

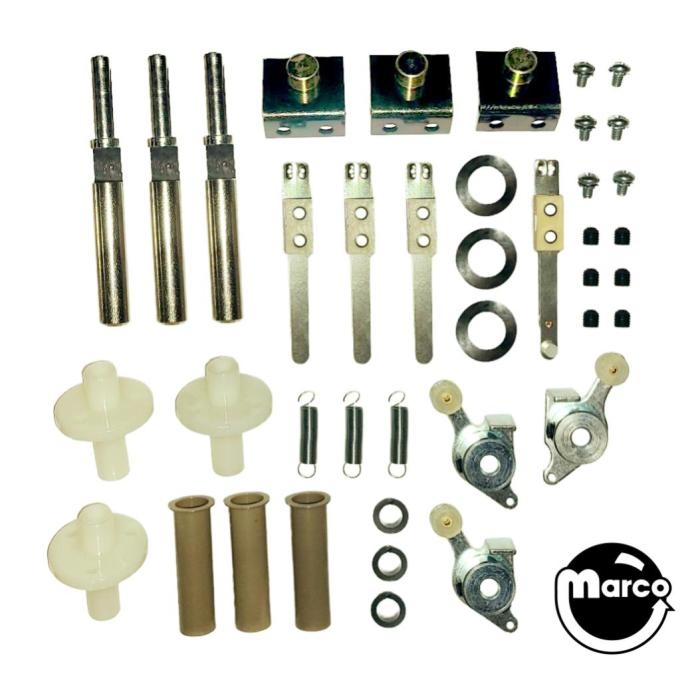

Parts included in this kit:
- (2) A-3711-4 - Flipper crank Bally linear left
- (1) A-3711-5 - Bally linear right flipper crank
- (3) S-496-217 - Plunger
- (3) ASW-A20-34 - Leaf switch Bally flipper EOS 3 blade w/lifter ...
- (3) A-613-127 - Coil stop Bally flipper AS-613-127
- (3) C-649-53 - Flipper bushing Bally early 0017-00042-0413
- (3) SP-100-363 - Spring
- (3) 20-8790-2 - Nyliner® 5/16" bearing 545-5485-00 C-537-8
- (3) 4705-00002-00 - Spring washer .515 x .875 x .013 inch P-1158...
- (6) 4323-01158-06 - Set Screw 1/4-28 x 3/8 inch sh-kn-cp
- (6) 4323-01158-04 - Set screw 1/4-28 x 1/4 inch sh-kn-cp M-1369
- (6) 4008-01003-04 - Machine screw 8-32 x 1/4 inch p-ph-sems 232-...
- (3) 03-7066 - Coil sleeve
- (1) ASW-A10-45 - Leaf switch Bally flipper EOS N.O. secondary
Rebuilds:
- (1) Bally ASE-1587-111 (right side) flipper assembly
- (2) ASE-1587-112 (left side) flipper assemblies
Reference:
- ASE-1587-111 right side flipper assembly
- ASE-1587-112 left side flipper assembly
- AC70-00022-0200 left side single switch flipper assembly
- AC70-00023-0100 right side double switch flipper assembly
- AC70-00023-0200 left side double switch flipper assembly
0.89
lb
