Flipper Rebuild kit includes all mechanical components for Bally pinball machine left and right side linear style flipper assemblies on games with 4 flipper units manufactured from May 1980 ROLLING STONES through November 1988 TRUCK STOP (upper flippers).
These linear style flipper assemblies have no fiber links connecting the coil plunger to the crank as do conventional flipper mechanisms.
Rebuilds (3) Bally ASE-1587-111 (right side) and (1) ASE-1587-112 (left side) flipper assemblies.
Applies to the following Bally game titles:
--- Date --- Game ---
1980-05 ROLLING STONES
1980-06 HOTDOGGIN'
1980-06 MYSTIC
1980-07 VIKING
1980-09 SKATEBALL
1980-11 FRONTIER
1980-11 XENON
1981-02 FLASH GORDON
1981-06 EMBRYON
1981-06 FIREBALL II
1981-08 FATHOM
1981-09 MEDUSA
1981-12 ELEKTRA
1982-02 VECTOR
1982-05 MR. & MRS. PAC MAN
1982-08 SPEAKEASY 2 and 4 Player
1982-08 SPECTRUM
1982-12 EIGHT BALL DELUXELimited Edition
1984-01 GRANNY and the GATORS
1984-02 X's & O's
1984-03 KINGS of STEEL
1984-10 SPY HUNTER
1986-06 KARATE FIGHT
1986-06 MOTORDOME
1986-08 BLACK BELT
1986-09 SPECIAL FORCE
1986-11 STRANGE SCIENCE
1987-04 HARDBODY
1987-05 PARTY ANIMAL
1987-08 HEAVY METAL MELTDOWN
1987-10 DUNGEONS & DRAGONS
1988-01 ESCAPE from the LOST WORLD
1988-03 BLACKWATER 100
Reference:
ASE-1587-111 right side flipper assembly
ASE-1587-112 left side flipper assembly
AC70-00022-0200 left side single switch flipper assembly
AC70-00023-0100 right side double switch flipper assembly
AC70-00023-0200 left side double switch flipper assembly
Select manufacturer to view game compatibility
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Nyliner nylon bearing 5/16 inch inner diameter.
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Set screw 1/4-28 x 1/4 inch sh-kn-cp M-1369
Spring washer .50 x .875 inch
This is the left crank or pawl or lever arm hub and cap assembly used in...
Right crank used in many mid 1980's Bally pinball...
Bally flipper coil stop for all Bally flipper assemblies (1968-1987) inclu...

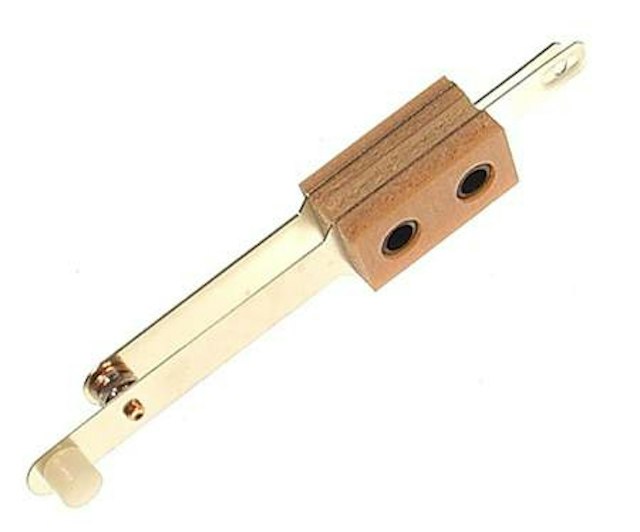

Normally Open (N.O.) secondary EOS (end-of-stroke) switch.
Flipper End Of Stroke (EOS) switch. Used in Bally/Midway linear flipper as...
Bally flipper bushing for machines made before 1985. 1.65 inch long
Plunger - linear flipper Bally/Midway No.0360-00718-00XF plunger.

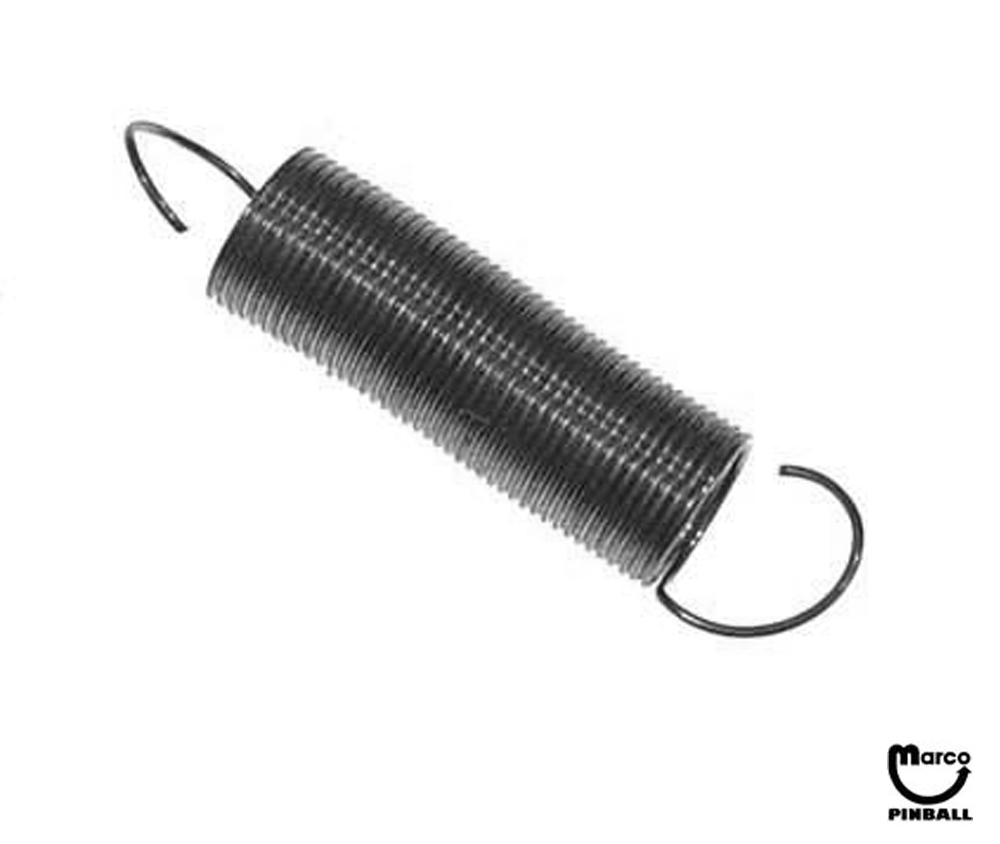

Spring - extension flipper return
Normally Open (N.O.) secondary EOS (end-of-stroke) switch.
