X-FILES (Sega) File cabinet assembly
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

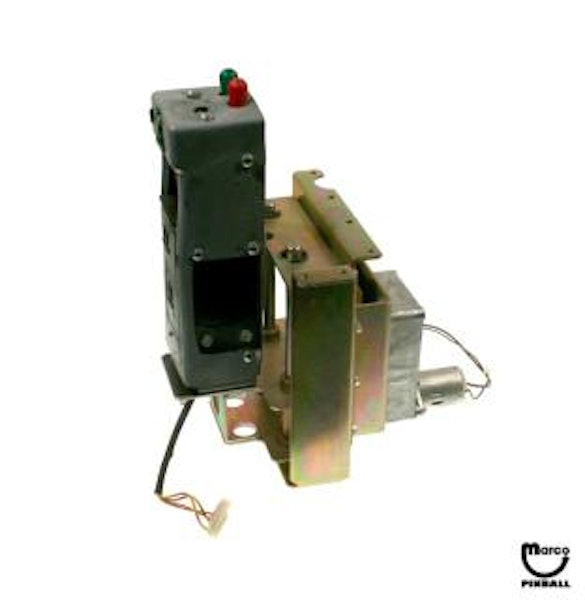

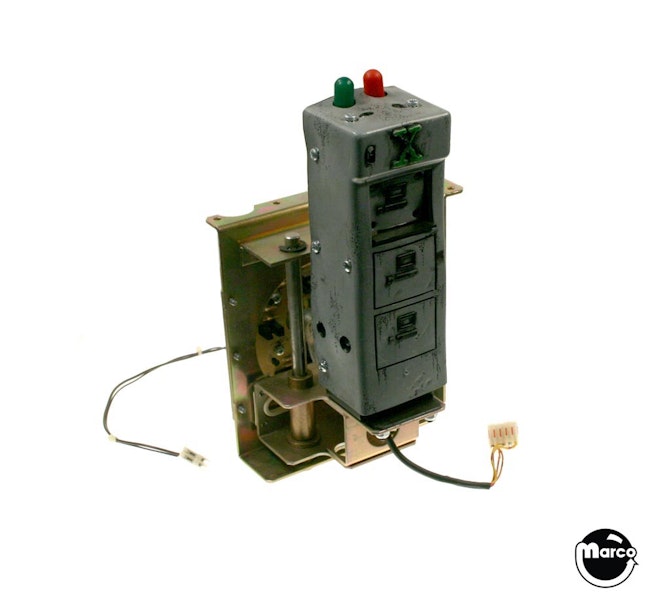

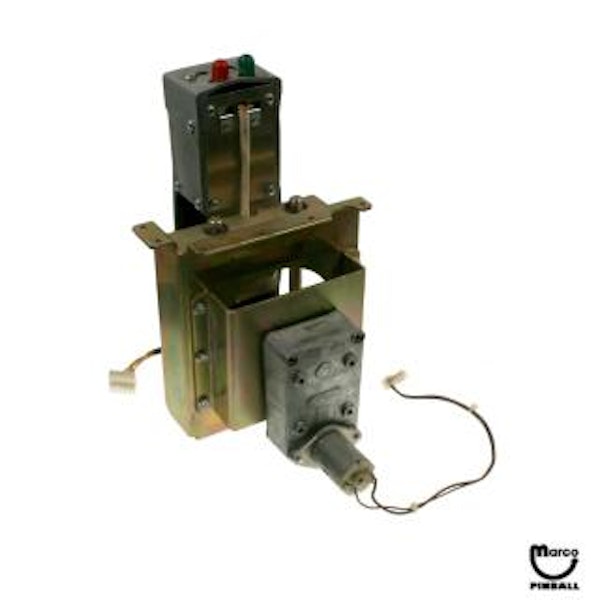

Sega X-FILES pinball machine file cabinet assembly.
Ships un-assembled. Wire harness not included.
Reference:

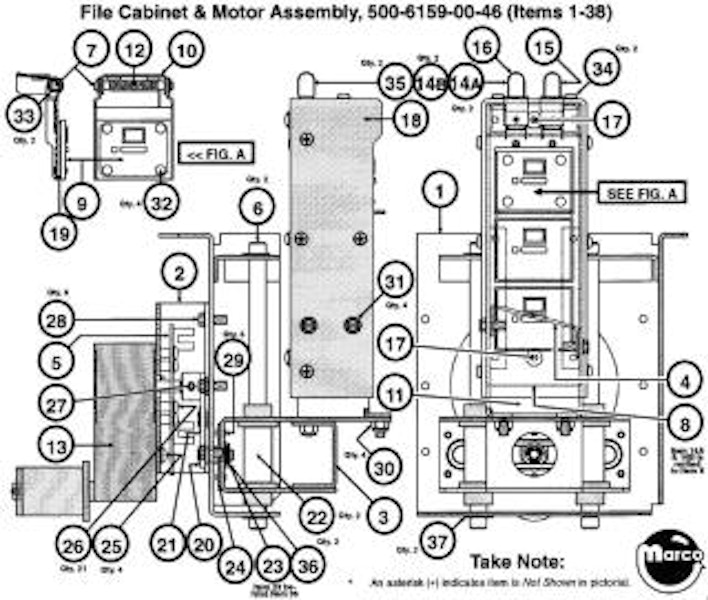

500-6159-00-46 file cabinet assembly
Select manufacturer to view game compatibility
X-FILES (Sega) File Cabinet opto board
X-FILES (Sega) File cabinet door shaft
X-FILES (Sega) File cabinet shaft
X-FILES (Sega) File cabinet back plate
X-FILES (Sega) File cabinet door
X-FILES (Sega) Spring - cabinet
X-FILES (Sega) Motor file cabinet
X-FILES (Sega) File cabinet door bracket
File Cabinet mold for Sega X-FILES. Replaced by 500-6159-00-11 assembly.
Bearing - brass sleeve
Bearing - roller
X-FILES (Sega) File cabinet bearing housing
Machine screw 8-32 x 3/8 inch phillips pan head.
Machine Screw 6-32 x 3/8" long phillips pan head with external tooth lockw...
Set screw 10-32 x 1/2 inch
Screw 8-32 x 3/8" hex washer head swage
Aluminum rivet - 1/8 inch shaft diameter X 3/16 inch long
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
X-FILES (Sega) Spring - cabinet
Lamp socket with bracket holds wedge based bulbs such as No.555
Made in the USA factory original SILICONE based elastomer lamp covers
Made in the USA factory original SILICONE based elastomer lamp covers
Machine Screw 6-32 x 3/8" pl-hwh
Rivet - 1/8" x 1/4" tubular black
E-clip or e-ring commonly used on many 3/16" mechanism shafts
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Rivet - 1/8 x 5/32 inch tubular
E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00
Fits shaft diameter of 3/8 inch with groove diameter of 5/16 inch.
Used on PC Board (PCB) as a mounting grommet. 3/8 inch OD.
X-FILES (Sega) Plastic clear magnet shield
X-FILES (Sega) File cabinet opto flag
X-FILES (Sega) File cabinet door bracket
