Machine Screw 6-32 x 3/8" long phillips pan head with external tooth lockw...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

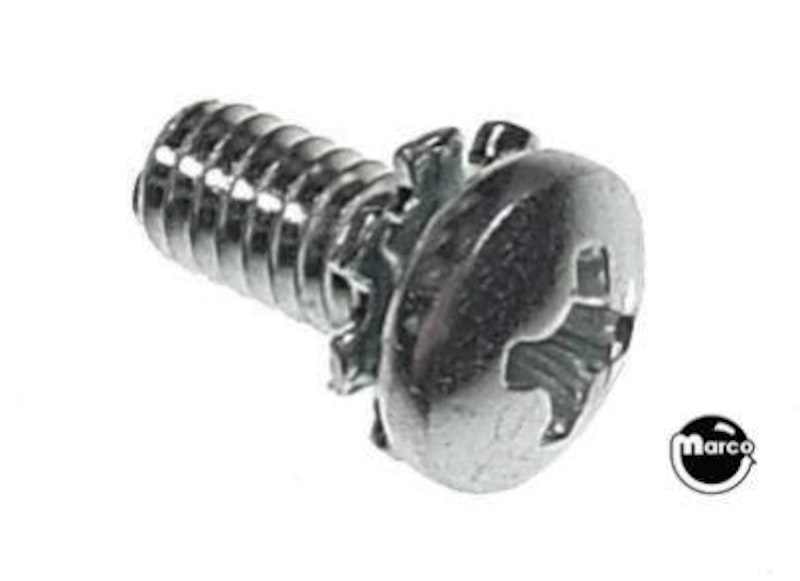

6-32 x 3/8" phillips pan head machine screw with external tooth lockwasher
SEMS is a fastener industry term that refers to a screw or bolt which has a captive lock washer.
Reference:
4006-01003-06
SC00100-03
Replaces 232-5201-00
Replaces 4006-01017-06 round head with sems
Fastener part numbering system explained:
The last 2 digits (XX) of the 4 digit fastener part number prefix (40XX-12345-12) indicates the standard stud size of the bolt or screw. For example, part #4006-01030-12 indicates a #6 stud diameter (.138") fastener.
The
The 2 digit part number suffix for bolts and screws (-12, -04, -16, etc) indicates the number of 1/16" length increments of the fastener. For example, part #4004-01003-04 indicates a screw that is 4/16" long or 1/4" long.
Basic diameters and threads of Standard SAE (Society of American Engineers) numeric system small machine screws are shown below.
The diameters of machine screws are indicated with the number of threads per inch. Here is a list of common sizes in inches:
2-56: 0.0860" or 43/500" diameter; 56 threads per inch
4-40: 0.1120" or 14/125" diameter; 40 threads per inch
5-40: 0.1250" or 1/8" diameter; 40 threads per inch
6-32: 0.1380" or 69/500" diameter; 32 threads per inch
8-32: 0.1640" or 41/250" diameter; 32 threads per inch
10-32: 0.1900" or 19/100" diameter; 32 threads per inch
10-24: 0.1900" or 19/100" diameter; 24 threads per inch
12-24: 0.2160" or 27/125" diameter; 24 threads per inch
Select manufacturer to view game compatibility
Machine screw with 6-32 thread and 1/2 inch long with phillips pan head
6-32 nut used on Williams flipper plates to secure flipper bushings.
Used on all Williams pinball machines from 1980 to 1999 & Bally/Williams games from 1989 to 1999.

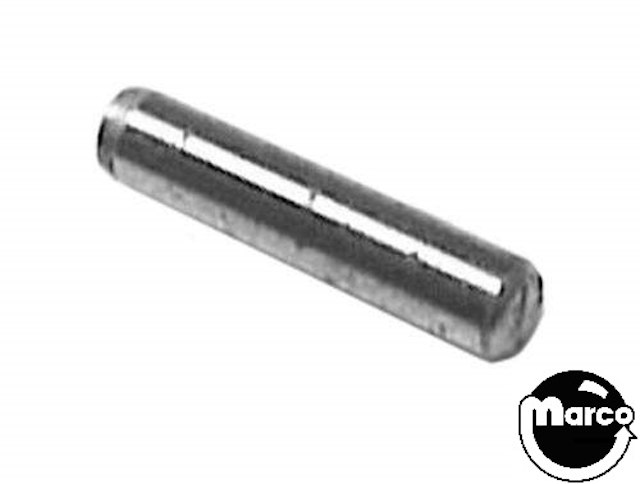

Dowel pin 3/32 x 7/16 inch
