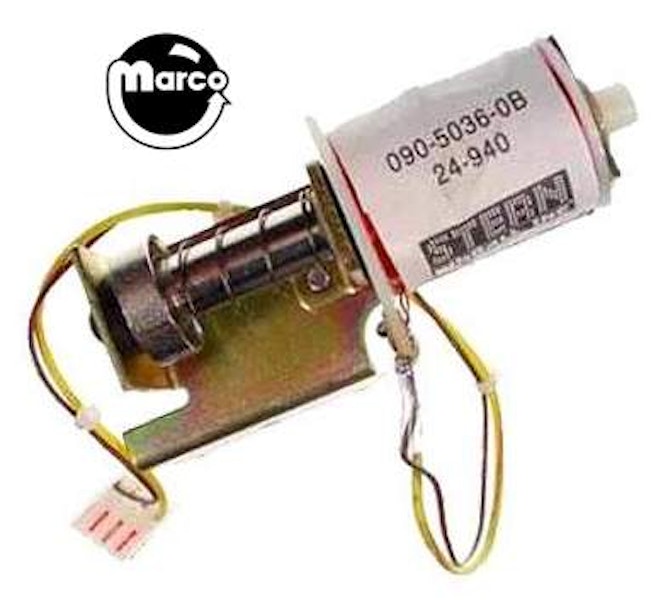

Ball launch assembly kit includes coil
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Stern / Sega / Data East ball launch assembly kit.
Cable not included. Ships un-assembled
Includes:
090-5036-01 coil
535-6385-00 bracket
535-5203-03 retainer
266-5020-00 spring
515-5000-02 plunger
Replaces 500-5477-00 ball launch assembly
Reference:
500-5477-01
500-5477-00
Select manufacturer to view game compatibility
For use in various assemblies in SAM, SPIKE 1, 2, and 3 Systems.
Data East/Sega/Stern solenoid coil 24-940 with diode on top (OT)
Spring used on relay for VUK and Lazer Kicker.
Coil bracket used in ball launch assembly 500-5477-01.
Knocker/ kickback plunger assembly used in ball launch assembly 500-5477-01
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Nylon coil sleeve, 1-7/8 inch long with 3/16 inch flange.
Coil support bracket.
USE 090-5036-0T
