USE 09-01-6171-GUD
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

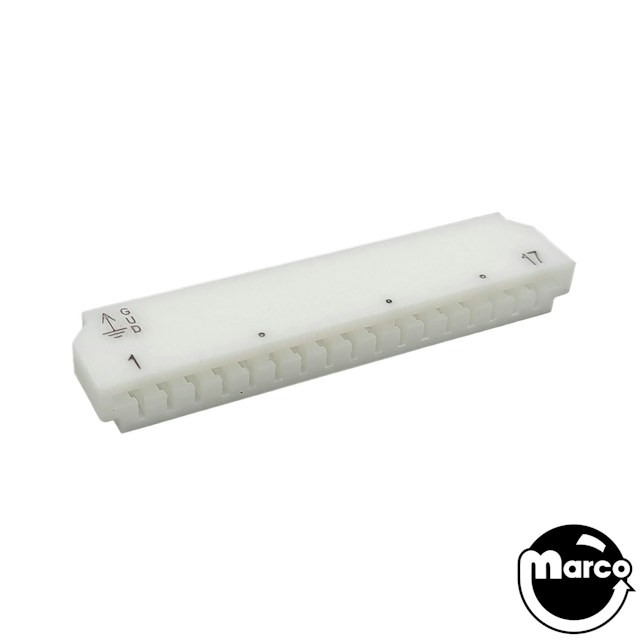

Single sided 17 pin female edge connector housing with .156 inch (3.96mm) spacing crimp terminals. Used in Gottlieb System 1 (A1-J7,) System 80 (A1-J3,) and System 80A (A1-J3) pinball machines.
Reference:
09-01-6171 Standard Card Edge Connectors KK 156 Edge Hsg Std Rib 94v2 17 Ckt
0009016171 Standard Card Edge Connectors KK 156 Edge Housing Standard Rib 94v2 17 Circuit
Uses 08-52-0072 crimp terminals
Equivalent substitute 09-01-6171-GUD
Select manufacturer to view game compatibility
Connector - edge double 48 pin (24 x 2)
Connector - edge single 5 pin .156 inch
USE 09-01-6241-GUD
Connector - edge single 17 pin .156 inch
USE 09-01-6101-GUD
Connector - edge double 25 pin (25 x 2)
Connector - edge single 12 pin .156 inch
Connector - edge single 22 pin .156 inch
Connector - edge single 6 pin .156 inch
USE 09-01-7241-GUD

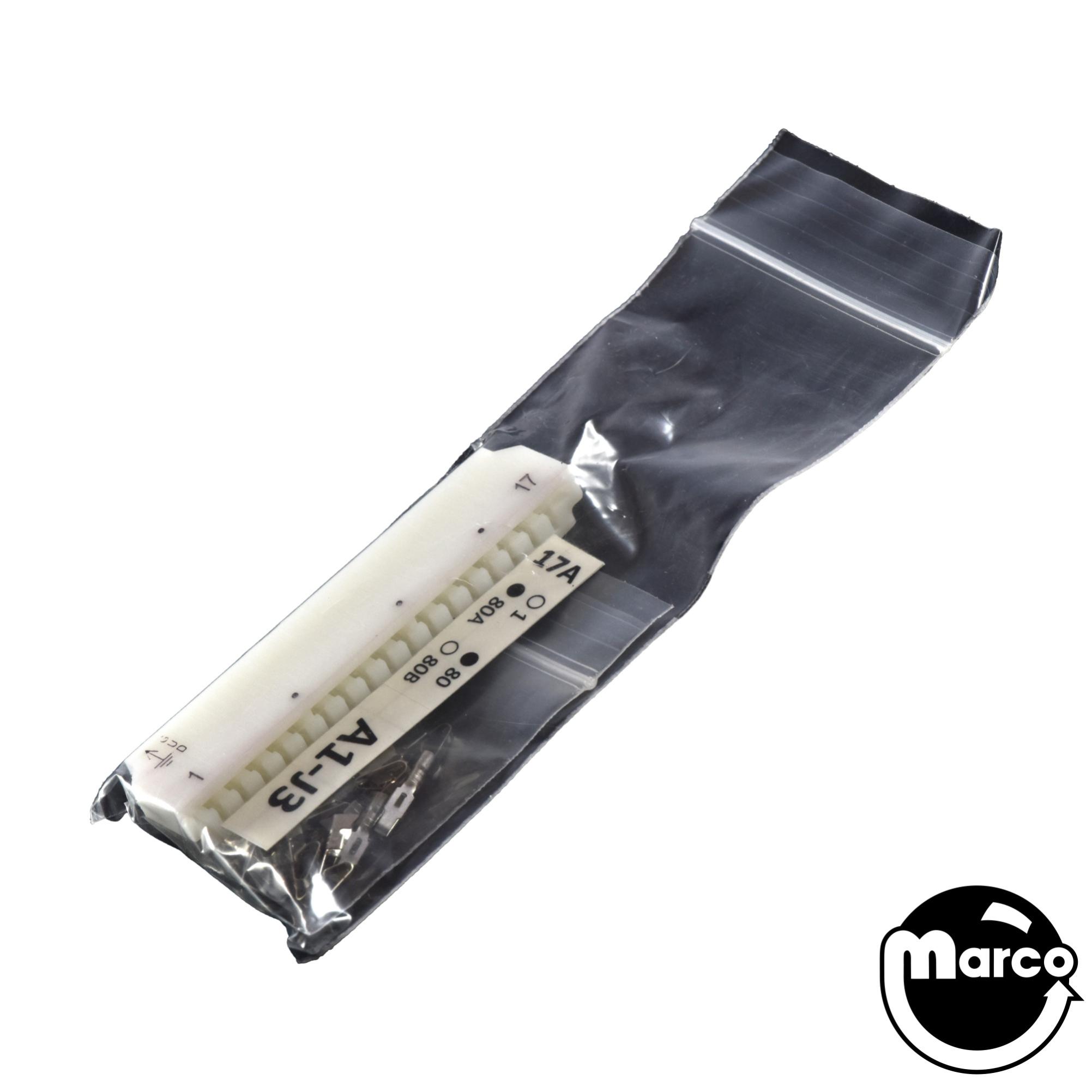

.156 inch (3.96mm) 17 pin, female, single-sided, edge connector, SLA printed housing kit
