Contains all the major components for two flipper assemblies (left and right side) for Williams pinball machines.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.
Contains all the major components for two flipper assemblies (left and right side) for Williams pinball machines*. Check Product compatibility tab below for associated games. Includes flipper feeler gauge to assist in correct bushing to crank gap adjustment.
*Note: due to design changes during the production run of SPACE SHUTTLE you may require this kit instead: WFLKIT8083. Check your game to confirm.
This kit does not include flipper bushings, if you need them for your rebuild please buy it here:

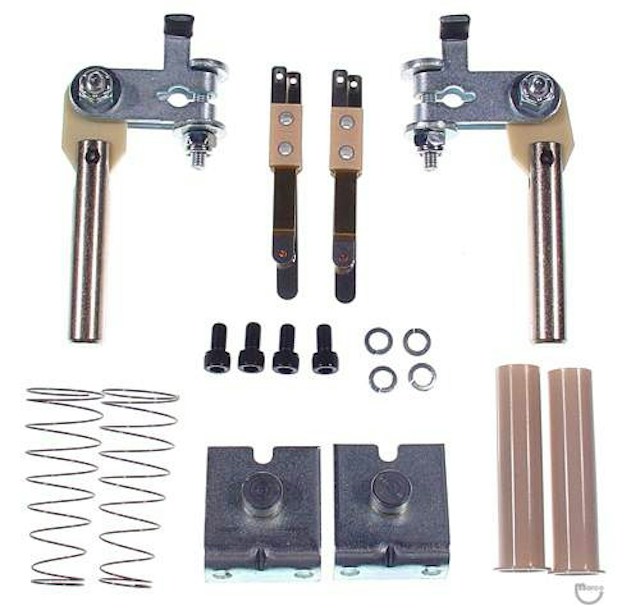

Parts included in this kit:
(1) B-10655-R - Plunger & crank assembly WPC early right
(1) B-10655-L - Plunger & crank assembly WPC early left
(2) A-10821 - Coil stop
(2) 03-7811 - Leaf switch End of Stroke normally closed ASW-A20-1
(2) 03-7066-5 - Coil sleeve
(2) 10-376 - Spring
(4) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(4) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(1) 03-8194 - Flipper Gauge
Reference:
WFLKIT8487
Select manufacturer to view game compatibility
Flipper coil stop for 1987 Williams F-14 TOMCAT, SPACE STATION, FIRE!, BIG...
Flipper end of stroke switch for electronic and electromechanical pinball machines.
Black 10-32 X 3/8 hex socket head cap screw
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Common tapered style compression flipper return spring
Early 1990s Williams left side flipper crank, plunger and link assembly.
#10 steel split lock washer. Zinc plated.
Williams right side flipper crank, plunger and link assembly for early flippers
Plastic thickness gauge for adjusting flipper bushing gap
One piece 3 inch white plastic flipper bat with 'W' logo molded on steel shaft assembly.
