Replacement CPU for Williams WPC-89 pinball machines.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

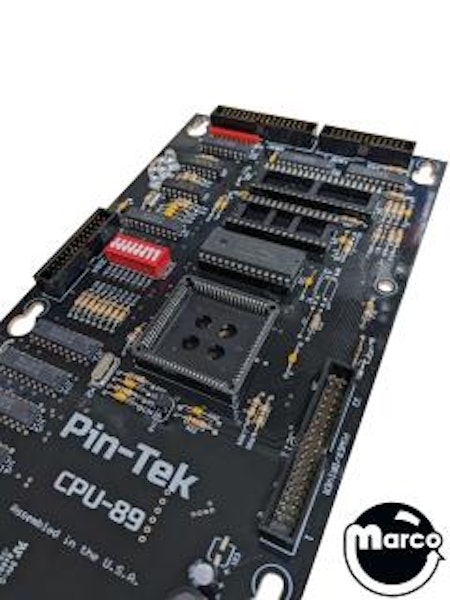

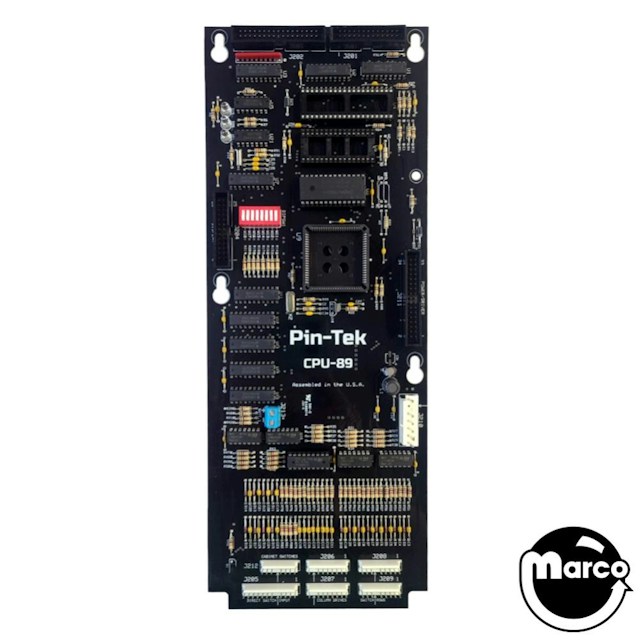

Williams WPC-89 System MPU board (A-12742) — the main CPU/MPU board used in Bally/Williams WPC-89 era games.
If your original board has suffered battery alkaline/acid damage, this is the clean, reliable replacement path to get your game back in play—fast.
ASIC, EPROMs, and the processor are not included and must be transferred from your existing board. ASIC and processor are also available separately — see related items.
To protect the ASIC and the socket during the swap, we strongly recommend using an ASIC chip puller.
Improved features:
Shrouded housings for ribbon cable connections. Keeps the pins from getting damaged in shipping and when the ribbon cables are installed or removed.
6264 NVRAM comes socketed and pre installed
The ULN2803 is socketed! It makes the accidental connection of solenoid voltage to your switch column that much less painful!
Country jumpers are now a DIP switch, no more cutting or soldering wire jumpers.
All through hole components still easily sourced for ease of maintenance.
Lower reset threshold watchdog circuit to lessen resets in power hungry games.
OEM schematics can be used for troubleshooting.
Beautiful gloss black finish on the PCB.
DESIGNED AND ASSEMBLED IN THE USA.
W13 and W14 are always IN for all countries.
America: W15 IN, W16 IN, W17 IN, W18 IN
America 2: W15 OUT, W16 OUT, W17 OUT, W18 OUT
Spanish: W15 OUT, W16 IN, W17 IN, W18 IN
Europe: W15 IN, W16 OUT, W17 IN, W18 IN
French: W15 IN, W16 IN, W17 OUT, W18 OUT
German: W15 IN, W16 IN, W17 IN, W18 OUT
A-12742-20001 Bally HARLEY DAVIDSON
A-12742-20003 GILLIGAN'S ISLAND
A-12742-20004 PARTY ZONE
A-12742-20006 DR WHO
A-12742-20013 BLACK ROSE
A-12742-20017 ADDAMS FAMILY
A-12742-20018 CREATURE FROM THE BLACK LAGOON
A-12742-20020 JUDGE DREDD
A-12742-50001 Bram Stoker DRACULA
A-12742-50002 THE MACHINE: BRIDE OF PINBOT
A-12742-50003 FUNHOUSE
A-12742-50004 GETAWAY
A-12742-50005 FISH TALES
A-12742-50012 HURRICANE
A-12742-50013 TERMINATOR 2
A-12742-50017 INDIANA JONES
A-12742-50018 WHITE WATER
A-12742-50020 TWILIGHT ZONE
A-12742-50022 POPEYE
A-12742-50023 STAR TREK THE NEXT GENERATION
A-12742-50028 DEMOLITION MAN
A-12742-50038 ADDAMS FAMILY GOLD
A-12742-60001 SLUGFEST
A-12742-60017 HOT SHOTS BASKETBALL
A-12742-60020 PINBALL CIRCUS
A-12742-60022 ADDAMS FAMILY VALUES
A-12742-XXXXX
Reference:
PTK-WPC89
ULN2803
A-12742
