Dot matrix controller board WPC

#A-14039

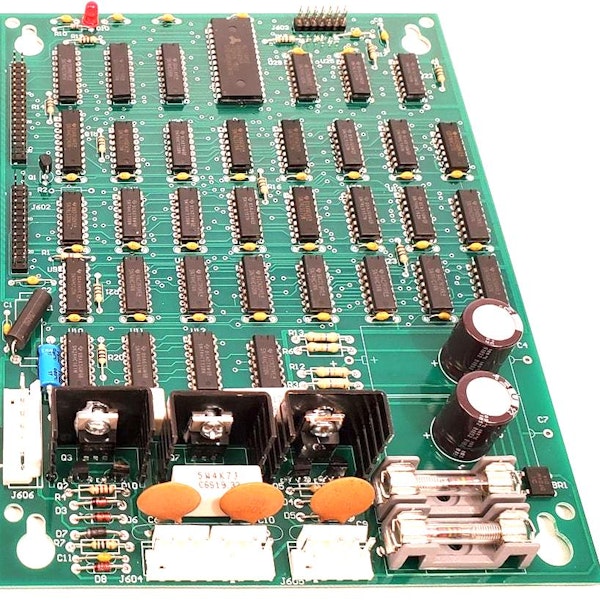

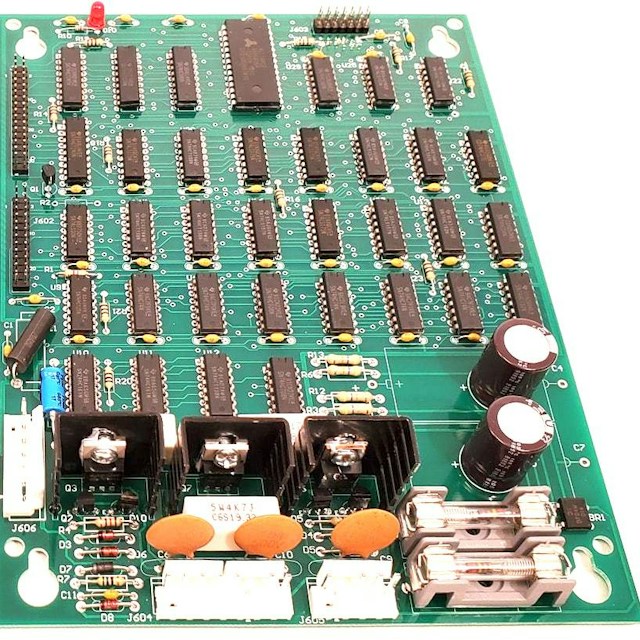

Bally/Williams dot matrix (DMD) controller board assembly.

Reference:

  • A-14039 board assembly
  • 5760-12710-10 pcb
  • 5760-12710-12 pcb

    Components:

    • 4006-01003-06 (3) screw 6-32 x 3/8 p-ph-s
    • 4406-01128-00 (3) nut 6-32 keps
    • 5012-12830-00 (1) resistor 1.8k 5w 5%
    • 5012-12842-00 (1) resistor 120 ohm 5w 5%
    • 5012-12843-00 (1) resistor 4.7k 5w 5%
    • 5040-08986-00 (1) capacitor 100M 10V +/-20 axial
    • 5040-12324-00 (2) capacitor 150M 160V +-50 axial
    • 5043-09072-00 (3) capacitor .1M 500V +80-20 radial

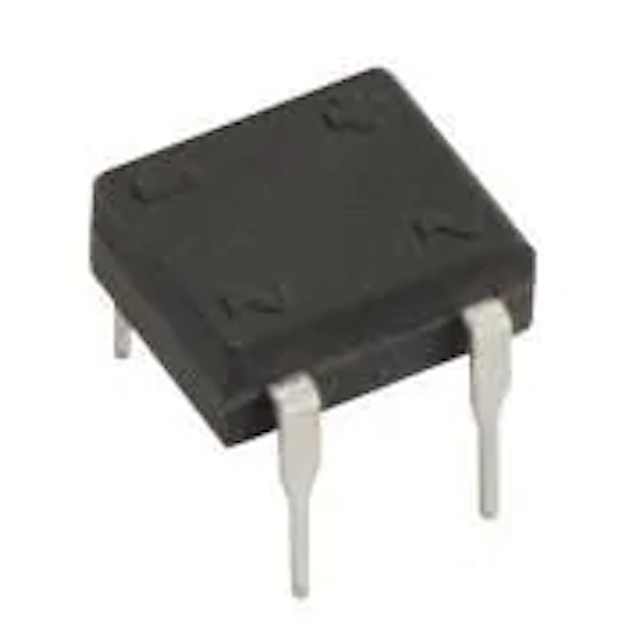

    • 5100-12833-00 (2) bridge rectifier 1a 400v
    • 5160-10269-00 (1) transistor 2N3904 npn
    • 5164-09056-00 (2) transistor MPSD02 npn
    • 5164-12154-00 (2) transistor MJE15030 npn
    • 5194-09055-00 (2) transistor MPSD52 pnp
    • 5194-12155-00 (1) transistor MJE15031 pnp

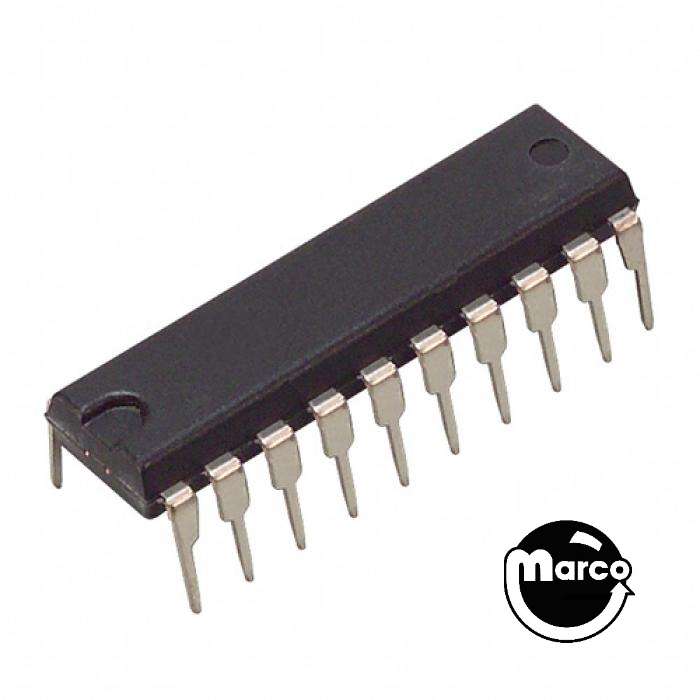

    • 5281-09308-00 (1) ic 74LS245 transceiver
    • 5281-09738-00 (4) ic 74ls157
    • 5281-10033-00 (1) ic 74LS30
    • 5281-10043-00 (4) ic 74LS175
    • 5311-10946-00 (5) ic 74hc74 dual f/f
    • 5311-10947-00 (1) ic 74hc125
    • 5311-10951-00 (2) ic 74hc161
    • 5311-10977-00 (1) ic 74hc04 hex inverter
    • 5311-12817-00 (1) ic 74hc165 shift register
    • 5311-12819-00 (1) ic 74hc688 comparator
    • 5311-12820-00 (1) ic 74hc27 3 input nor
    • 5311-12822-00 (3) ic 74hc193 counter
    • 5315-12009-00 (1) ic 74hct374 8-b latch
    • 5315-12812-00 (3) ic 74hct138 3to8 decoder
    • 5315-12815-00 (2) ic 74hct08 quad aud
    • 5315-12816-00 (1) ic 74hct32
    • 5315-12821-00 (1) ic 74hct240 octal buffer
    • 5340-12278-00 (1) static ram IC 2064 150NS
    • 5551-09822-00 (1) inductor 4.7 uh 3a
    • 5671-13732-00 (1) LED display red
    • 5705-09199-00 (3) heat sink 6030b
    • 5731-12328-00 (2) fuse slow blow 3/8A 250V
    • 5733-12060-01 (2) fuse holder pc MT3AG
    • 5791-10850-00 (1) 26h str sq .100
    • 5791-10862-05 (1) 5h str sq pin .156
    • 5791-10862-07 (1) 7h str sq pin .156
    • 5791-10862-08 (1) 8h str sq pin .156
    • 5791-12516-00 (1) 34 hdr 2x17 .100
    • 5791-12827-00 (1) 14 hen 7x2 straight

9.2 oz

$139.99

Out Of Stock
