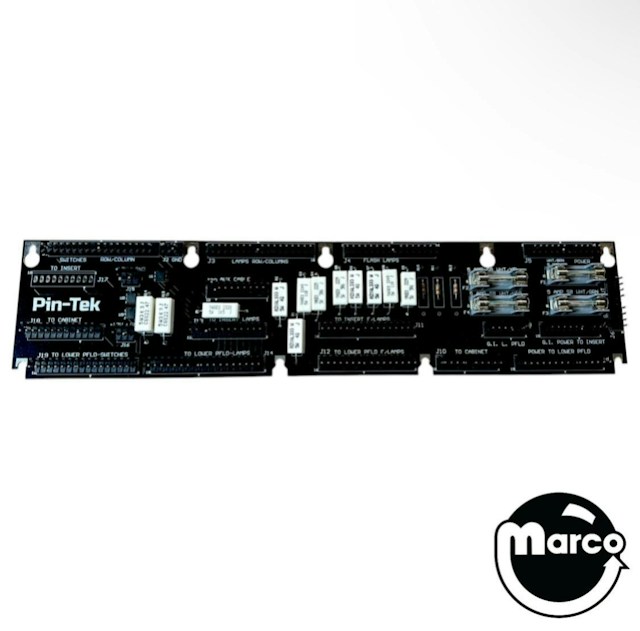

Pin-Tek Upgraded Williams DINER pinball machine interconnect assembly.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Introducing the new and improved Williams DINER pinball interconnect board assembly by Pin-Tek. Featuring keyhole mounting points and upgraded high-temperature connectors, it offers easier installation, enhanced reliability, and greater longevity.
Reference:
D-12313-571 Williams DINER pinball interconnect board assembly
PTK-INT-571 Pin-Tek Upgraded Williams DINER pinball interconnect board assembly
