Upgraded Pin-Tek Bally POOL SHARKS pinball machine interconnect board assembly...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

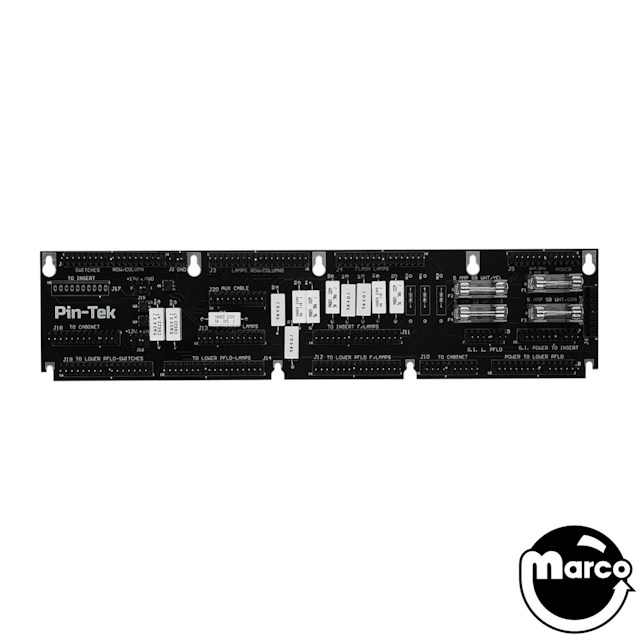

Introducing the new and improved Bally POOL SHARKS interconnect board assembly by Pin-Tek. Featuring keyhole mounting points and upgraded high-temperature connectors, it offers easier installation, enhanced reliability, and greater longevity.
Reference:
D-12313-2014 Bally POOL SHARKS interconnect board assembly
PTK-INT-2014 Bally POOL SHARKS interconnect board assembly
F1, F2, F3, F4 are 5A slo blo fuses
Select manufacturer to view game compatibility
