Prevents and diagnoses intermittent game reset issues on Bally/Williams WPC
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Here is a simple solution to fix your Bally Williams WPC pinball machine

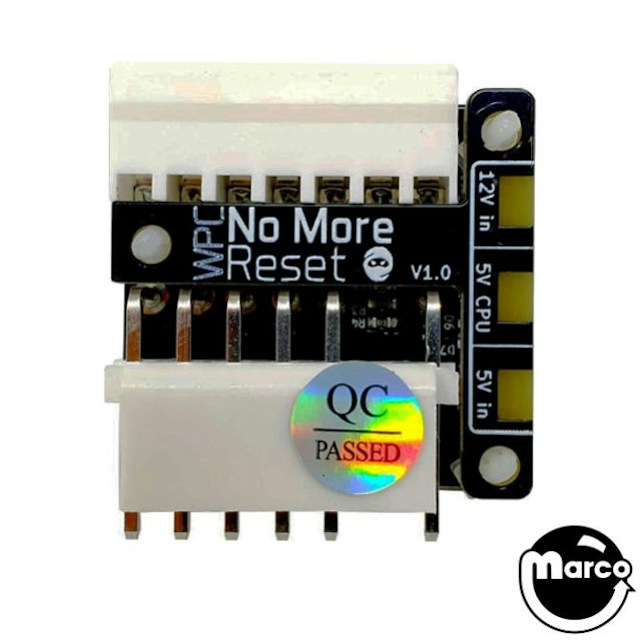

Plug in PinSound No More Reset Board with voltage indicator LEDs for the Bally / Williams WPC pinball System part # A-12697-1, A-12697-3, A-12697-4 power / driver boards.
The Reset Fix Board prevents and diagnoses intermittent game shutdown problems on Bally/Williams WPC (Williams Pinball Controller) System pinball machines. Easy plug and play, 5 minute, no tool installation.
How it works: When a game suddenly shuts off, goes dark and reboots itself after a few second delay, an MPU board reset has occurred. Unwanted resets occur on WPC pinball machine MPU boards because the Power Driver Board's (PDB) 5 volt power supply is marginally designed for the many circuits it drives.
The Reset Fix Board creates a unique 5 volt power source for the WPC System MPU board and adds 5v and 12v circuit monitor LEDs to your Power Driver Board.
Unfortunately, the problem persists and re-energizing the MPU board quickly loads down the 5 volt power supply and the watchdog again resets the MPU. This creates an endless on/off reset cycle about every two seconds. Even if the machine doesn't enter this rapid "reset loop", there will be more intermittent resets - often within minutes, hours or longer intervals.
The Reset Fix Board eliminates watchdog circuit resets by removing the MPU load from the PDB 5 volt circuit and re-routing it to the more powerful 12 volt circuit. The Reset Fix Board omits connector pins from the wire-side connector and eliminates the PDB 5 volt connection to the MPU board. Instead, a new switched regulator circuit generates a stable 5 volt power supply used exclusively by the MPU board. This satisfies the watchdog circuit and the MPU board will not unnecessarily reset.
Other circuits in your pinball machine still use the original 5 volt power supply, so always replace failed capacitors, burnt connector pins, and bad rectifier diodes to keep this circuit healthy. These repairs require intermediate technical proficiency in circuit board rework.
Reference:
WPC-PDA12697X rebuild kit
A-12697-1 WPC power driver pcb assembly
A-12697-3 WPC power driver pcb assembly
A-12697-4 WPC power driver pcb assembly
No More Reset works on all Bally Williams WPC models (89/DCS/95)
Bally Williams WPC 89 pinballs: The Getaway: High Speed II | Black Rose | Creature From The Black Lagoon | Doctor Who | Dracula | Fish Tales | Funhouse | Gilligan’s Island | Harley-Davidson | Hurricane | Party Zone | SlugFest | Strike Master (Shuffle Alley) | Terminator 2 | The Addams Family | The Machine: Bride of Pin-bot | Twilight Zone | White Water
Bally Williams WPC DCS pinballs: Corvette | Demolition Man | Dirty Harry | Indiana Jones: The Pinball Adventure | Indianapolis 500 | Jack-Bot | Johnny Mnemonic | Judge Dredd | No Fear: Dangerous Sports | Popeye Saves the Earth | Red & Ted’s Road Show | Star Trek: The Next Generation | The Flinstones | The Shadow | Theatre Of Magic | WHO Dunnit | World Cup Soccer
Bally Williams WPC 95 pinballs: Attack From Mars | Cactus Canyon | Cirqus Voltaire | Congo | Junk Yard | Medieval Madness | Monster Bash | NBA Fastbreak | No Good Gofers | Safe Cracker | Scared Stiff | Tales Of The Arabian Nights | The Champion Pub
