WPC Power Driver board rebuild kit
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

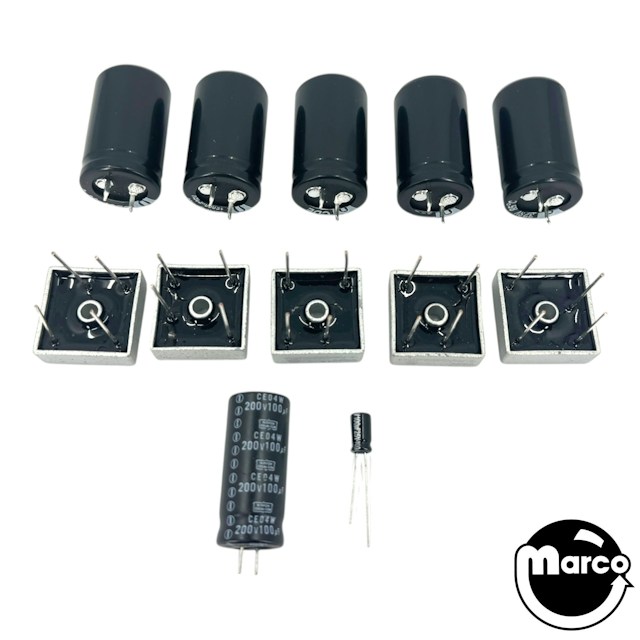

12 piece electronic component rebuild kit for the Bally / Williams WPC pinball System part No. A-12697-1, A-12697-3, A-12697-4 boards.
Kit includes 5 bridge rectifiers and 7 capacitors that commonly fail due to age and cause various game symptoms such as intermittent resetting.
Kit includes:
KBPC3504W(5 pieces) BR1, BR2, BR3, BR4, BR5
C15KM25VR capacitors (5 pieces) C5, C6, C&, C11
C100M200VR capacitor (1 piece) C8
C100M25VR capacitor (1 piece) C2
Reference:
WPC-PDA12697X
A-12697-1 WPC power driver pcb assembly
A-12697-3 WPC power driver pcb assembly
A-12697-4 WPC power driver pcb assembly
Select manufacturer to view game compatibility
Capacitor 100uf @ 200 volts measures 1-1/2 inch tall x 1/2 inch diameter.

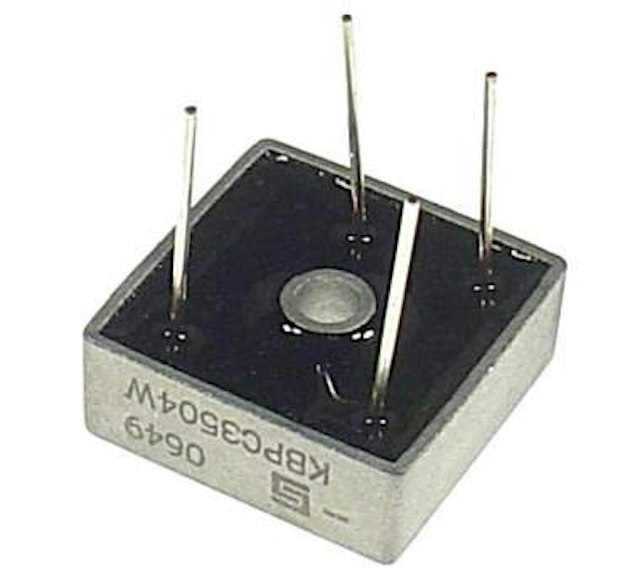

35 a wire lead bridge rectifier 5100-09690-00
Capacitor 15,000 mf 25 volts snap mount. Suitable replacement for 5040-12313-00.
Capacitor 100uf @ 25 volts with radial leads.
Solder - Pocket Dispenser 14 gram tube 60/40 tin/lead
