NEW! PINSCORE Display Systems!
Brilliant design makes brilliant displays. New PINSCORE LED displays for pinball machines are the best performing, most feature-packed and economical replacement systems for obsolete glass plasma digital displays.

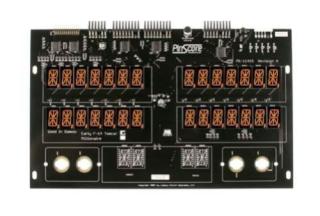

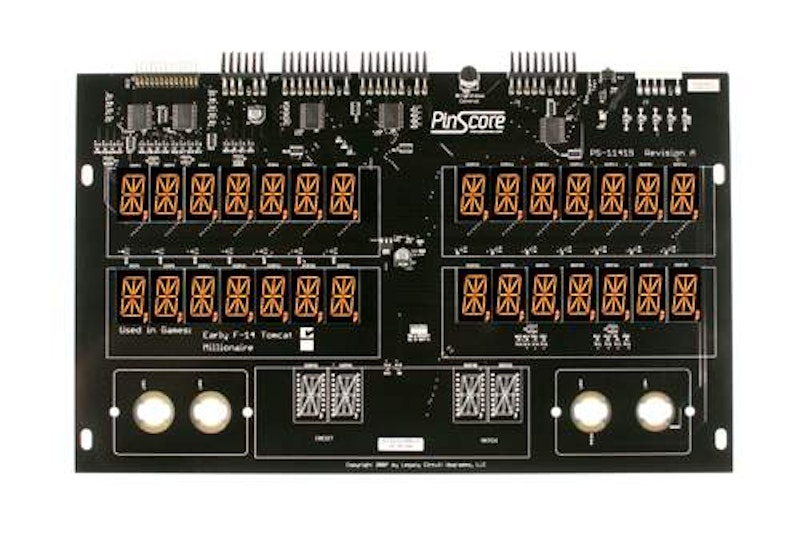

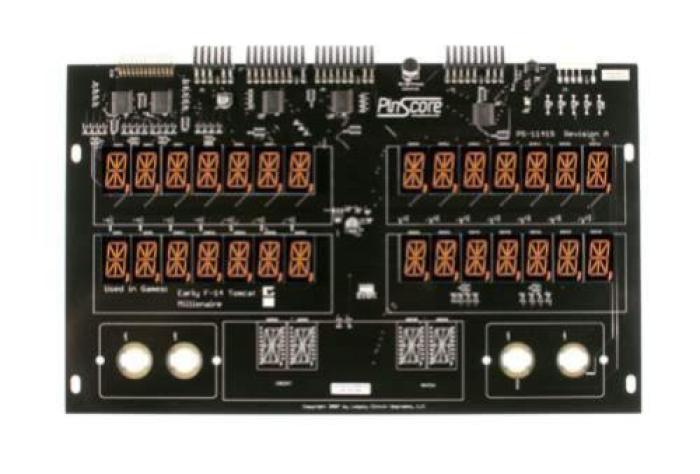

This PINSCORE Model PS-11415-F Display System fits the EARLY production Williams F-14 TOMCAT pinball machines.
Two different score display boards were used in F-14 TOMCAT. The EARLY production model has (4) lamp socket 1/2" holes in the circuit board. The original board is labeled with D- 11415. The PS-11415-F is designed to replace this early system.
If your machine does not have sockets holes in the board, you will need the more common PS-11610 PINSCORE Display System. See the link below.
Features:
Plug & Play installation
Adjustable brightness
Low power consumption uses only 5V power and no high voltage
Beautiful black matte finish
Foam light shields prevent general illumination leakage glare
Crisp alpha-numeric digits illuminate in original font & color
2 year warranty
Assembled in USA
INSTALLATION:
Unplug the AC power from your pinball machine. Remove game backglass. Unplug all display board connecting cables and remove original display board.
Mount the new board. Hand-tighten the screws so that you may align the displays with the backglass windows before finally securing the board. If fur¬ther alignment is necessary, you may adjust the insert panel door hinges and latch in the backbox.
Connect the cables.
Double-check all connections, plug in the machine, and turn the game on. The LED’s will light up. Pressing the diagnostic pushbutton labeled SW1/DISPLAY TEST on the PS-11415-F board will illuminate all segments of all displays. This indicates that all components of the PINSCORE System are operating correctly. The thumbwheel BRIGHTNESS control allows you to set your preferred illumination level.
Reference:
UDN7180A display driver IC
D- 11415
5760-12100-00 circuit board
Select manufacturer to view game compatibility
