DUNGEONS & DRAGONS (Bally) Backbox tech chart

#DOC1789-TC

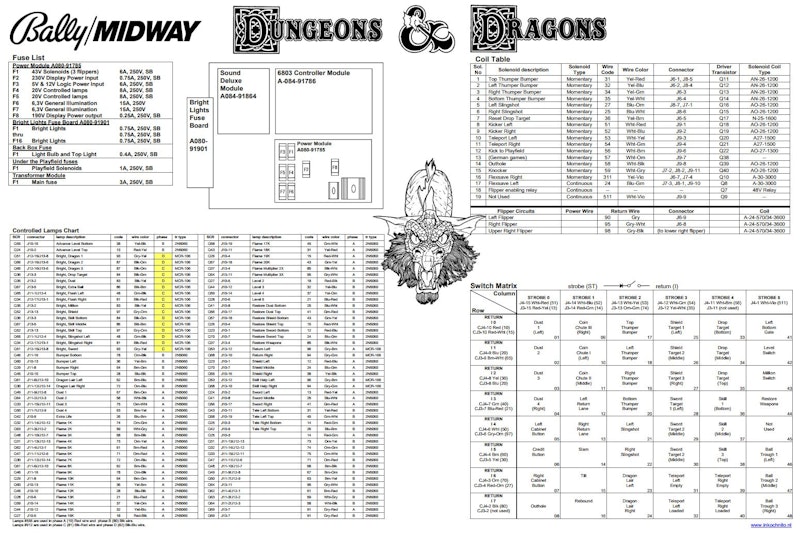

Bally/Midway DUNGEONS AND DRAGONS pinball machine backbox technical information matrix chart.

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl

Reference:

  • 0H06-00300-0200 Parts manual
  • 0H06-00300-0100 Operating manual

8 oz

$10.99

In Stock
