LADY LUCK (Bally) Backbox tech chart

#DOC1366-TC

Bally/Midway LADY LUCK pinball machine backbox technical information matrix chart.

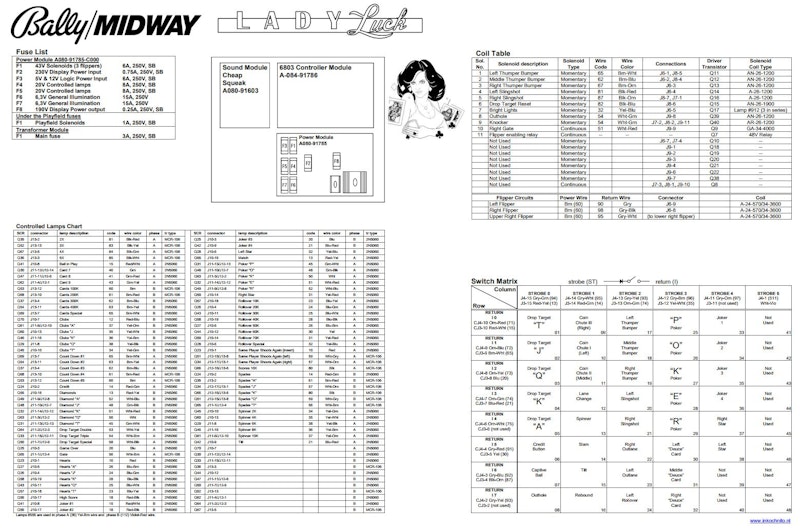

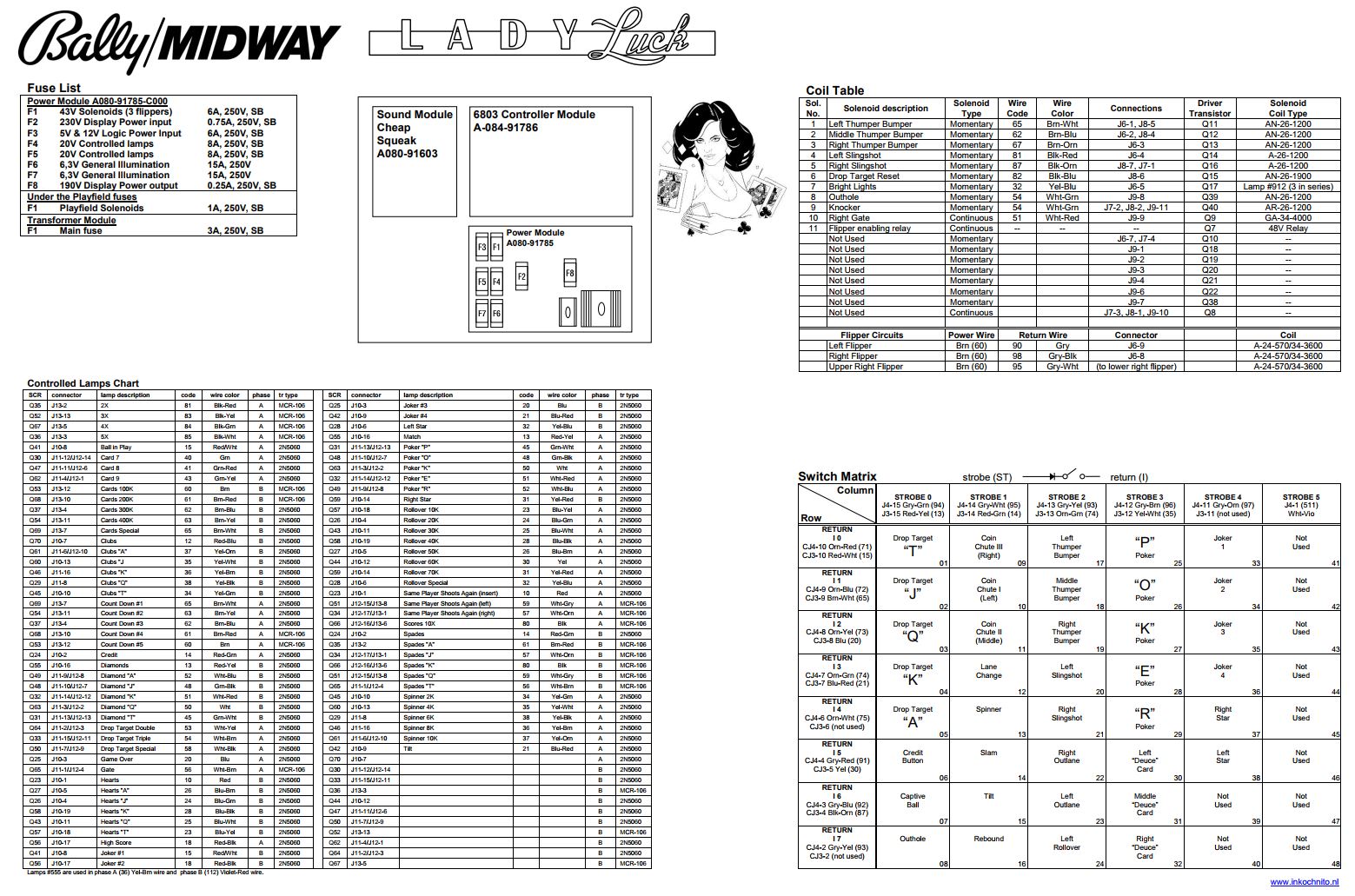

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl

Reference:

  • 0E34-00300-0100 Operating manual
  • 0E34-00300-0200 Parts manual

  • 0.1 oz

    $9.95

    In Stock
