HARDBODY (Bally) Backbox tech chart

#DOC1287-TC
HARDBODY (Bally) Backbox tech chart
Availability
In Stock
Price
$10.99
Order
Product details

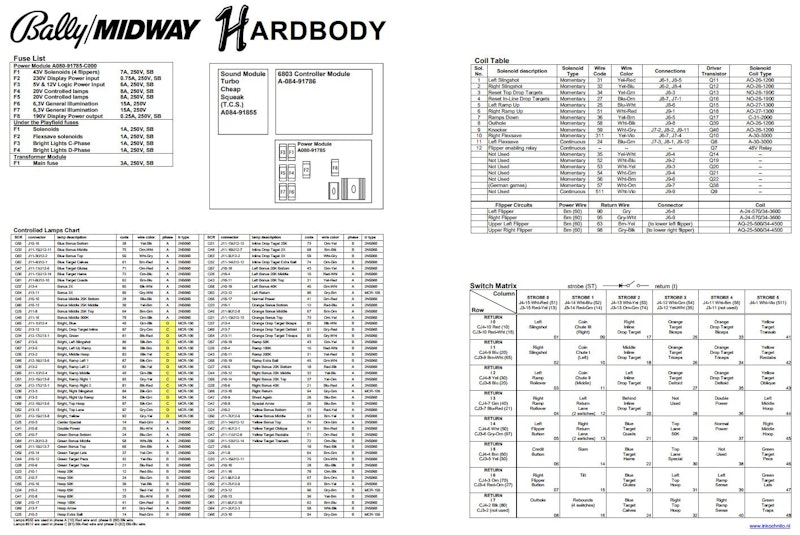

Bally/Midway HARDBODY pinball machine backbox technical information matrix chart.

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl

Reference:

DOC1287 Manual & schematic0365-00H07-1001 Manual & schematic

1 lb
