CITY SLICKER (Bally) Backbox tech chart

#DOC1137-TC

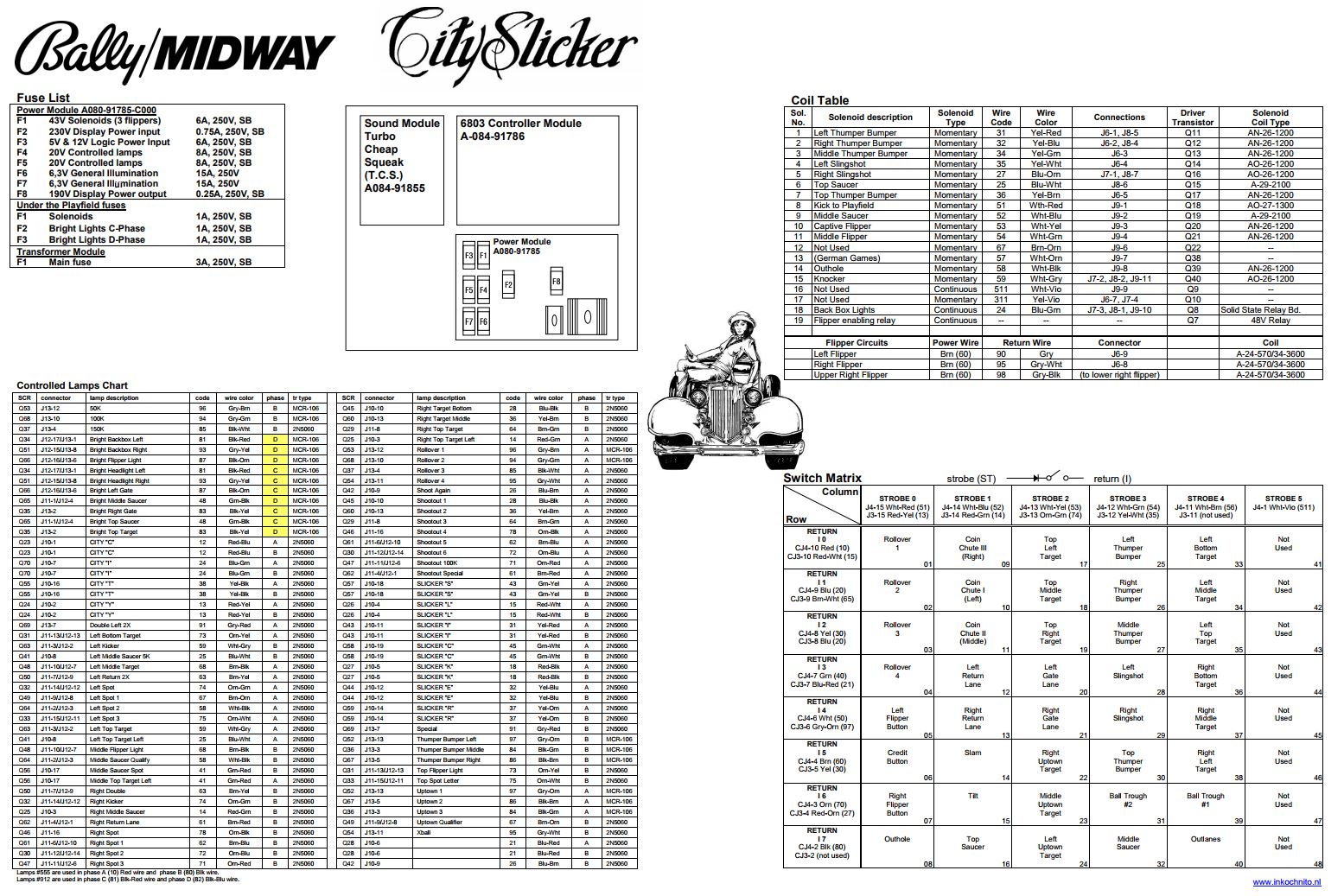

Bally/Midway CITY SLICKER pinball machine backbox technical information matrix chart.

11 x 17 inch peel & stick vinyl

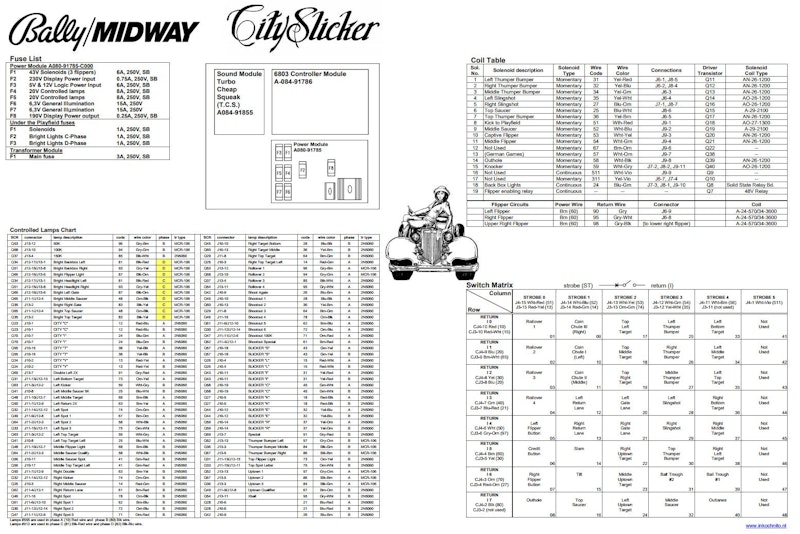

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

Reference:

  • 0E79-00300-0100 operations manual

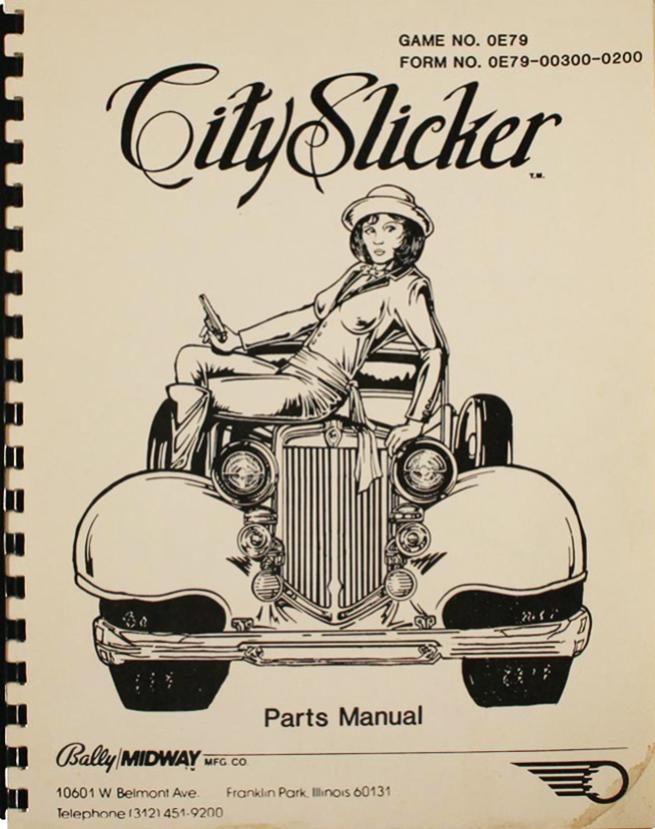

  • 0E79-00300-0200 parts manual

  • 0.75 oz

    $9.99

    In Stock
