BLACK JACK (Bally) Backbox tech chart

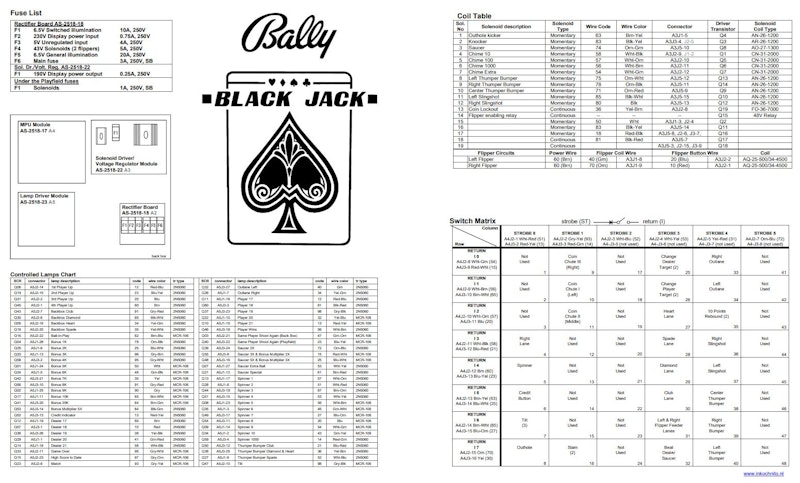

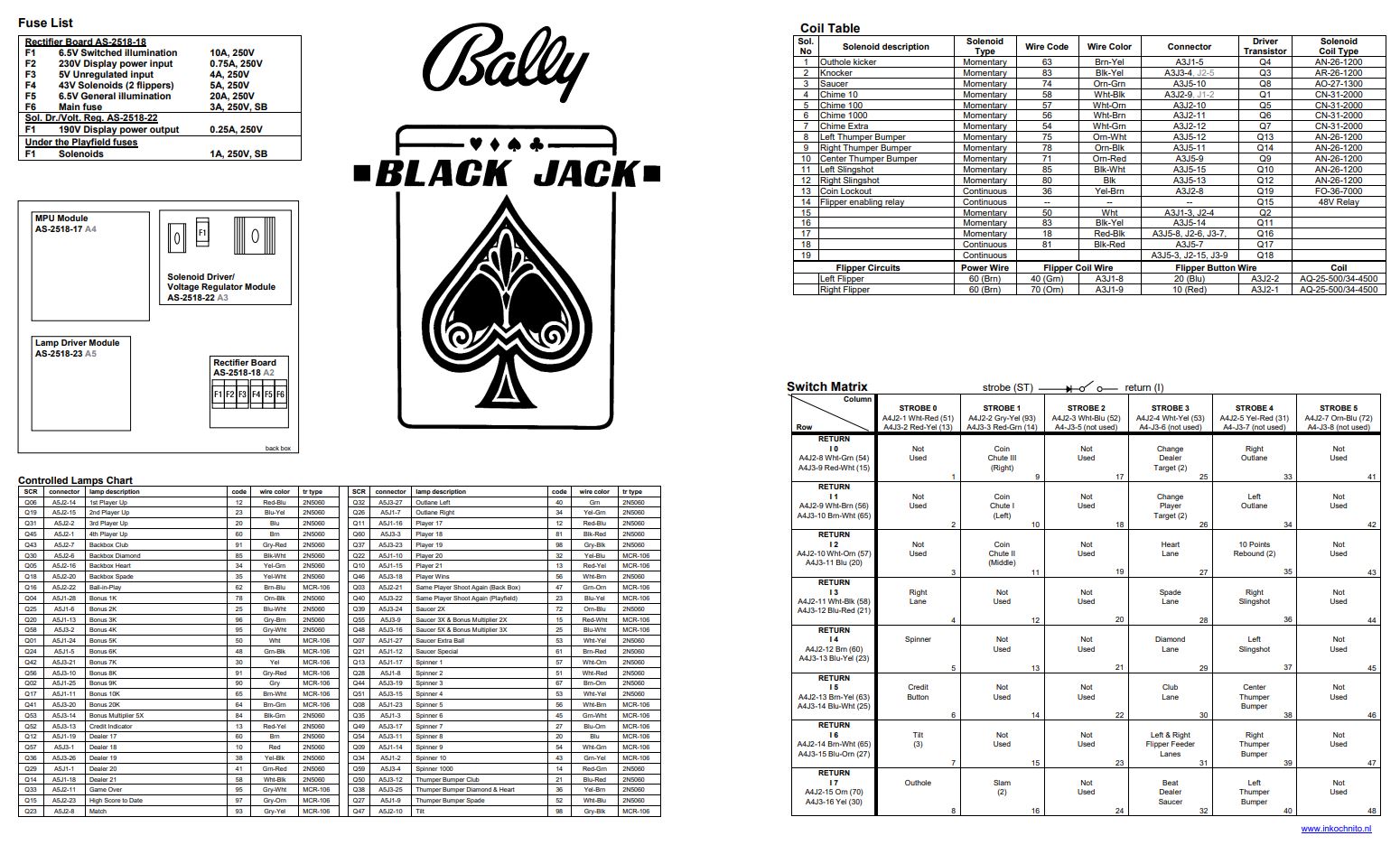

Bally BLACK JACK Solid State (not for use with EM version) pinball machine backbox technical information matrix chart

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl


  • A-469-1029-1
  • M-469-1029-1
4 oz


In Stock
