BLACK BELT (Bally) Backbox Tech Chart
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

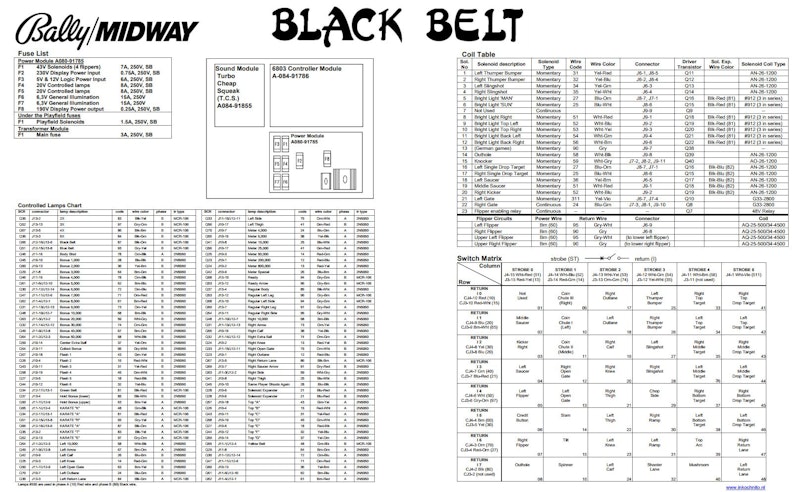

Bally/Midway BLACK BELT pinball machine backbox technical information matrix chart. 11 x 17 inch peel & stick vinyl.
Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.
