Flipper rebuild kit for Bally EIGHT BALL DELUXE linear flipper mechanisms.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
This all-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.
Includes all mechanical components for Bally pinball machine left and right side linear style flipper assemblies on EIGHT BALL DELUXE and EIGHT BALL DELUXE LE. This kit also includes longer screws for the double-stacked EOS switches.
This kit is specifically for the games EIGHT BALL DELUXE and EIGHT BALL DELUXE LE.
DO NOT BUY THIS KIT FOR A DIFFERENT GAME.
These linear style flipper assemblies have no fiber links connecting the coil plunger to the crank as do conventional flipper mechanisms.
Note:

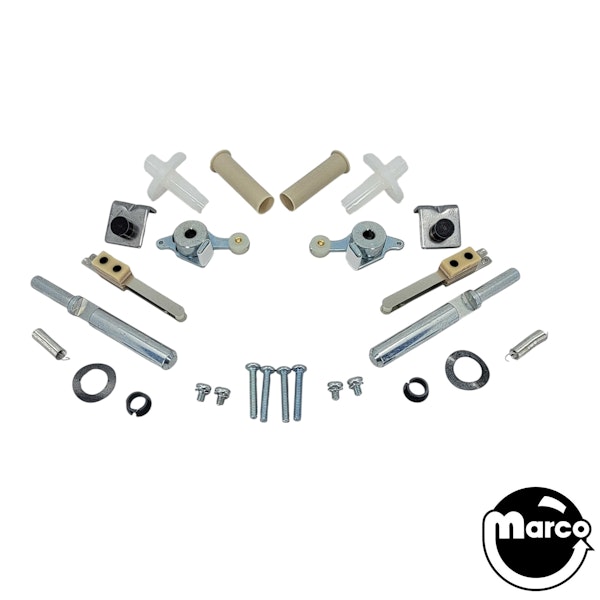

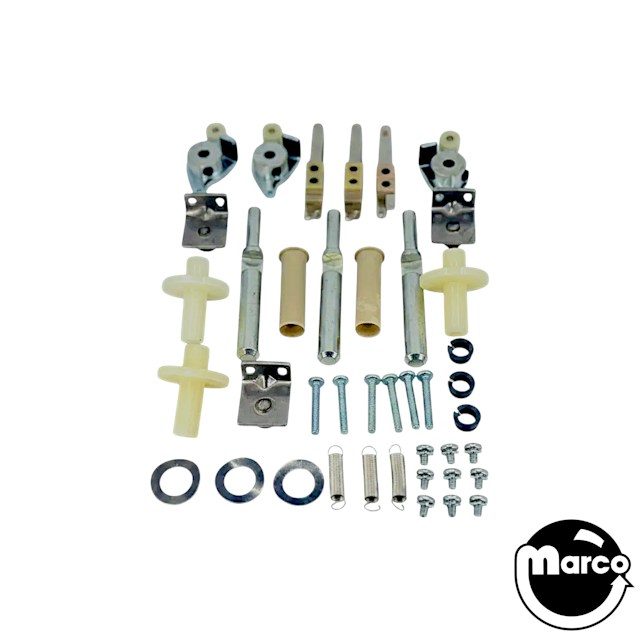

Parts included in this kit
(2) A-3711-4 - Flipper crank Bally linear left
(1) A-3711-5 - Flipper crank Bally linear right
(3) S-496-217 - Plunger
(1) ASW-A20-34 - Leaf switch Bally flipper EOS 3 blade w/lifter
(3) A-613-115- Coil stop Bally flipper AS-613-115
(3) C-649-53 - Flipper bushing Bally early 0017-00042-0413
(3) SP-100-363 - Spring
(3) 20-8790-2 - Nyliner® 5/16" bearing 545-5485-00 C-537-8
(3) 4705-00002-00 - Spring washer .515 x .875 x .013 inch
(9) 4008-01003-04 - Machine screw 8-32 x 1/4 inch p-ph-sems
(3) 03-7066 - Coil sleeve
(6) 4008-01005-16 - Machine Screw 8-32 x 1 inch p-ph
(1) ASW-A10-45 - Switch - flipper EOS - Naturally Open Secondary
Reference:
BFKIT88
ASE-1587-111 right side flipper assembly
ASE-1587-112 left side flipper assembly
AC70-00022-0200 left side single switch flipper assembly
AC70-00023-0100 right side double switch flipper assembly
AC70-00023-0200 left side double switch flipper
