Shop parts by
NO GOOD GOFERS (Williams) Backtrap assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

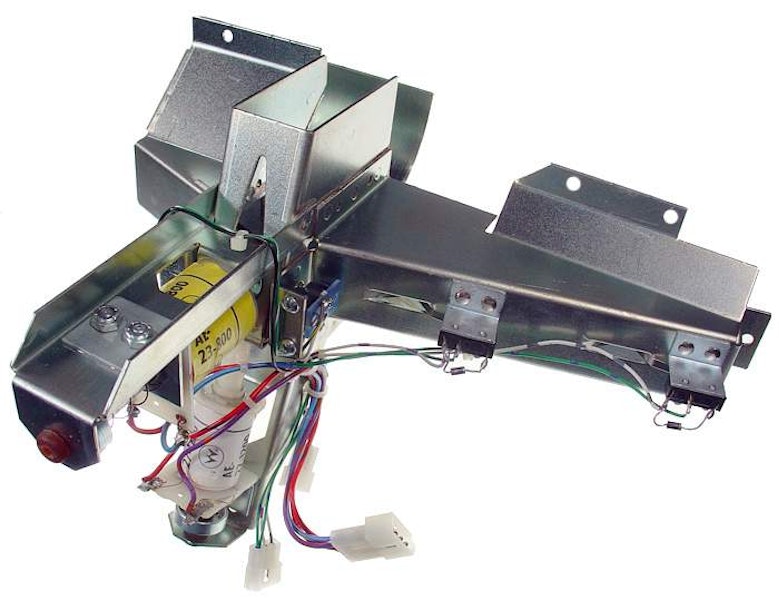

NO GOOD GOFERS (Williams) Backtrap assembly
Ships un-assembled.
Reference:
A-21989 backtrap assembly
01-14832 (1) plate-back up
01-8774 (2) bracket switch
03-7067 (2) tubing-coil
03-7520-2 (5) tie wrap-nylon 3 7/8
04-10910-1 (2) bracket -5/8 coil centering
04-10955.5 (1) back trap
04-10962 (1) bell armature
07-6688-17N (4) rivet 5/32 X 1/8 nickel
10-135 (2) spring-plunger
23-6420 (2) grommet
4002-01105-06 (4) ms 2-56x3/8 p-ph-s
4106-01013-06 (4) sms No.6 x 3/8 p-ph t-25
4408-01119-01 (4) nut 8-32 esna/ntm
5070-09054-00 (2) diode-1N4004 1.0a
5647-12693-13 (2) switch sub mini micro
5791-09400-00 (1) 4P1490 03-09-2042
5791-10770-00 (1) 3p11625 03-06-2032 nmt sm
5791-10774-00 (1) 4P2004 03 06-2044
5820-09078-00 (7) pm1560 02-06-2101
5820-09080-00 (4) terminal-pm1190 02-09-2101
5822-15587-00 (4) f-term quick-connect 22-18ga
A-16908 (1) opto led assy
A-16909 (1) opto p/t assy
A-17767 (1) bell armature assy
AE-23-800 (1) coil
AE-27-1200 (1) coil
CW-30022-0 (9) wire 22awg black
CW-30022-56 (18) wire 22awg grn/blu
CW-30022-59 (9) wire 22awg grn/wht
CW-30022-84 (7) wire 22awg gry/yel
CW-30022-94 (7) wire 22awg wht/yel
CW-30022-97 (8) wire 22awg wht/vio
CW-30022-98 (10) wire 22awg wht/gry
H-22162.1 (1) back trap cable
HW-30018-21 (9) wire 18awg red/brn
HW-30018-23 (8) wire 18awg red/org
HW-30018-68 (8) wire 18awg blu/gry
HW-30018-73 (9) wire 18awg vio/org
Select manufacturer to view game compatibility
Williams NO GOOD GOFERS pinball machine back up plate

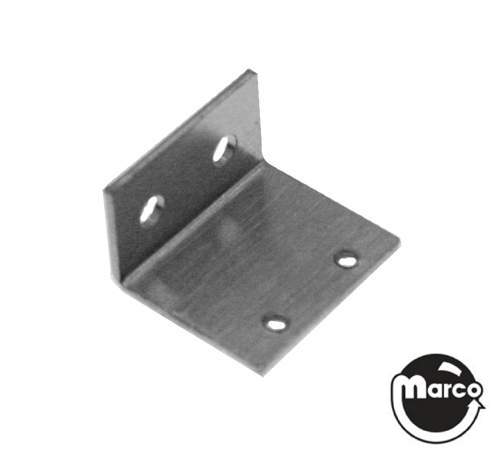

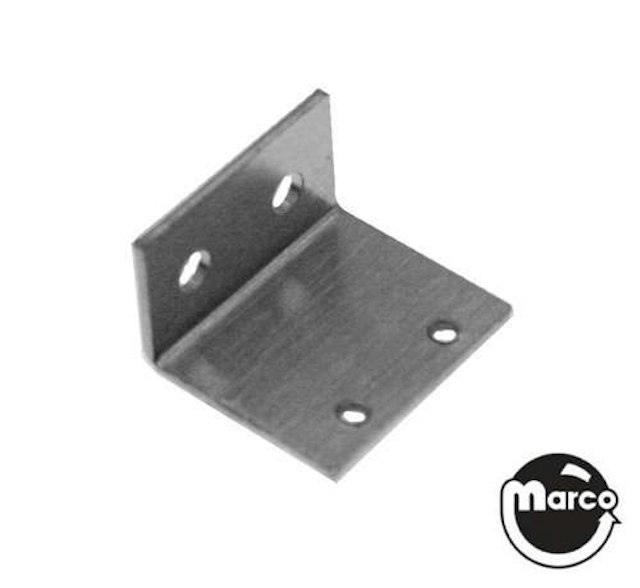

Bracket for the A-12163-1 switch & bracket assembly.
Nylon coil sleeve, 1-7/8 inch long with 3/16 inch flange.
Cable tie 3-7/8 inch nylon - single white
Bracket for 5/8" coil centering

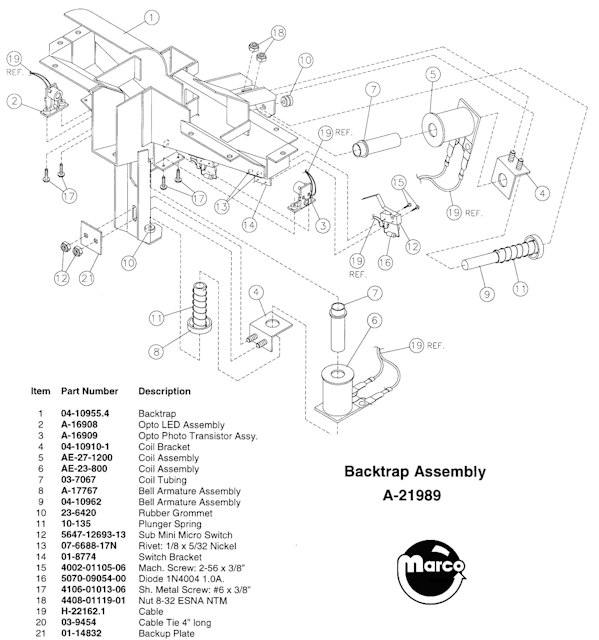

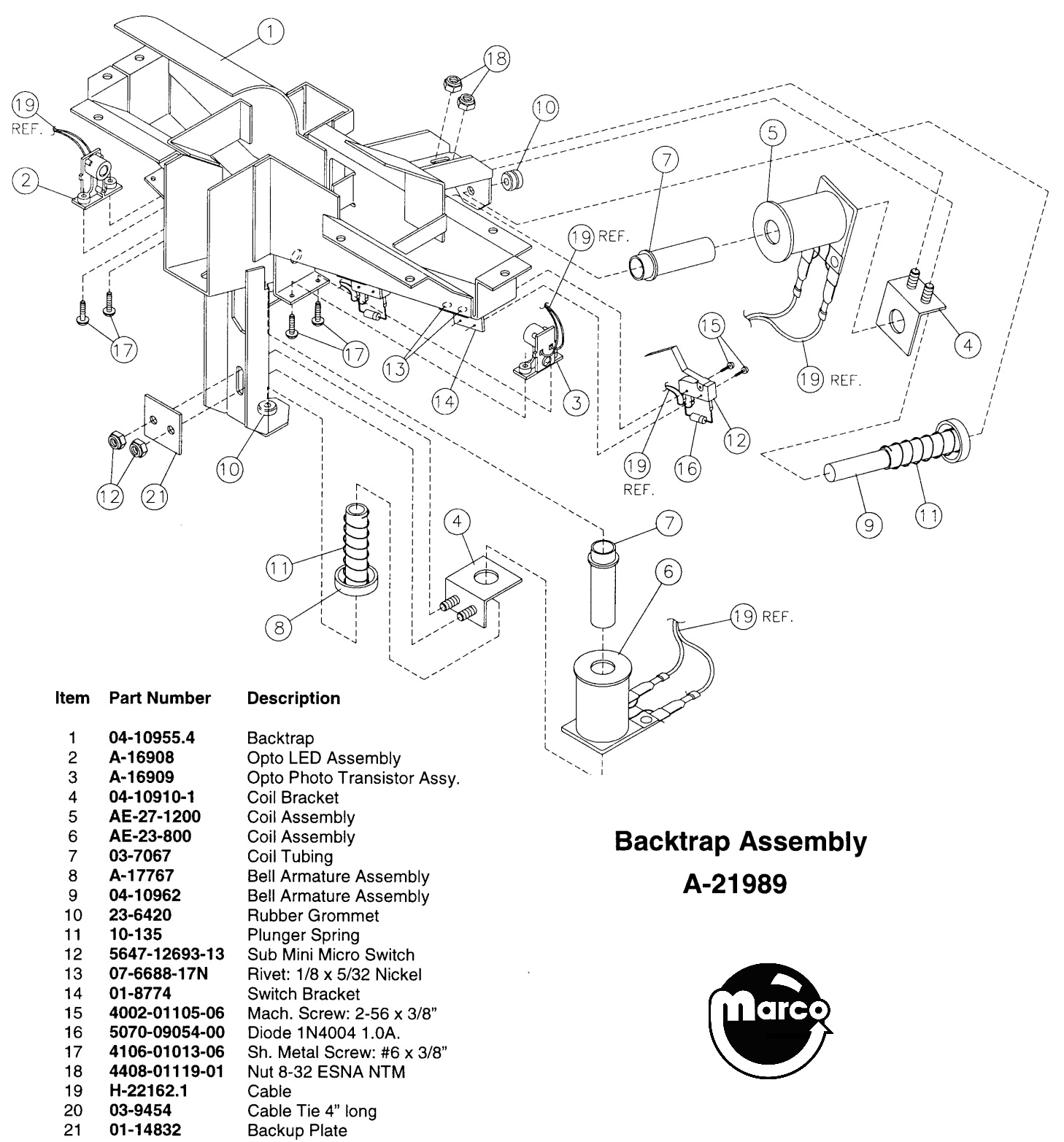

back trap
Plunger assembly 3.75 inches

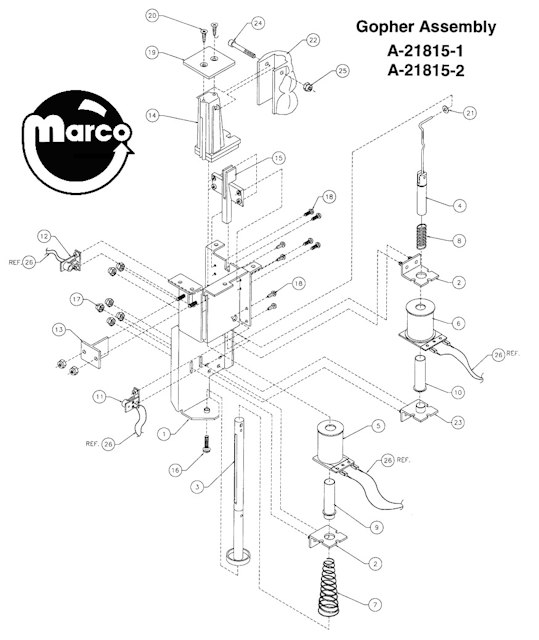

NO GOOD GOFERS (Williams) Gofer assembly right
