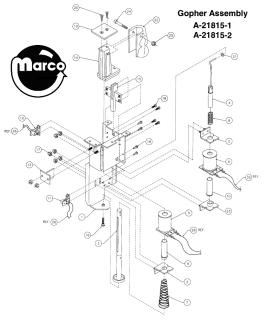

NO GOOD GOFERS (Williams) Gofer assembly left
Ships un-assembled
Reference:
A-21815-1 right gofer assembly
A-21815-2 left gofer assembly
01-14801.1 (1) cap-gopher
02-5439.1 (1) ms 10-32 socket head cap-modified
03-7066 (1) tubing-coil
03-7067-6 (1) tubing-coil
03-7520-2 (4) tie wrap-nylon 3 7/8
03-9805 (1) guide latch
03-9806.1 (1) latch
03-9807 (1) guide-release
04-10911-1 (2) bracket-3/4 coil centering
04-10911-4 (1) bracket-3/4 coil centering
04-10924.1 (1) bracket-gopher
04-10924.2 (1) bracket-gofer
10-135 (1) spring-plunger
10-518 (1) spring-compression
16-8799-28 (1) coil tape-1 7/8 wide
31-2955.1 (1) gopher-buzz
4010-01007-16 (1) ms 10-32x1 p-ph (unf)
4106-01013-06 (8) sms No.6 x 3/8 p-ph t-25
4108-01042-08 (2) sms No.8X1/2 p-flh-a
4408-01119-01 (8) nut 8-32 esna/ntm
4410-01129-00 (1) nut 10-32 keps unf
4700-00013-00 (1) fw .172x .375x .036 brass
Select manufacturer to view game compatibility
5791-10774-00 (1) 4P2004 03 06-2044
5820-09078-00 (4) pm1560 02-06-2101
5820-09080-00 (4) terminal-pm1190 02-09-2101
5822-15587-00 (4) f-term quick-connect 22-18ga
A-16908 (1) opto led assembly
A-16909 (1) opto p/t assembly
A-21814 (1) gofer plunger assembly
A-21816 (1) release assembly
AE-30-2000 (1) coil
CW-30022-0 (8) wire 22awg black
CW-30022-5 (8) wire 22awg green
CW-30022-84 (9) wire 22awg gry/yel
CW-30022-9 (9) wire 22awg white
H-22161.1 (1) gofer cable
HW-30018-1 (8) wire 18awg brown
HW-30018-20 (8) wire 18awg red/blk
HW-30018-21 (8) wire 18awg red/brn
HW-30018-7 (8) wire 18awg violet
LE-23-1300 (1) coil
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Coil sleeve - 2-5/8 inch flange

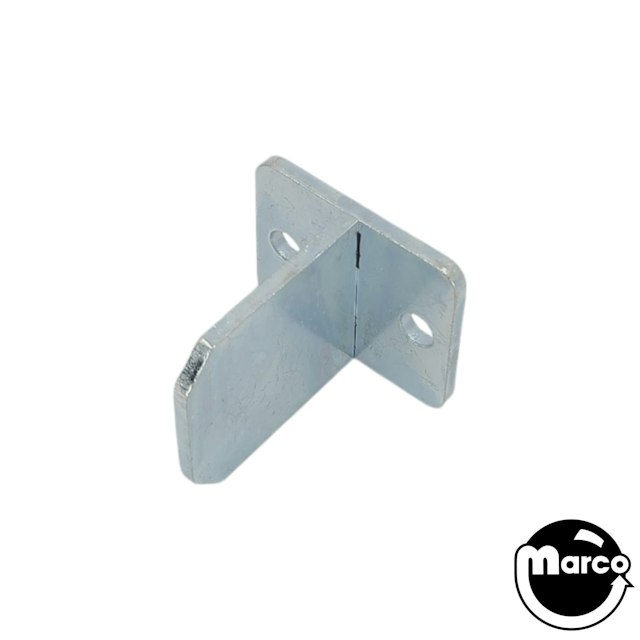

NO GOOD GOFERS (Williams) guide latch

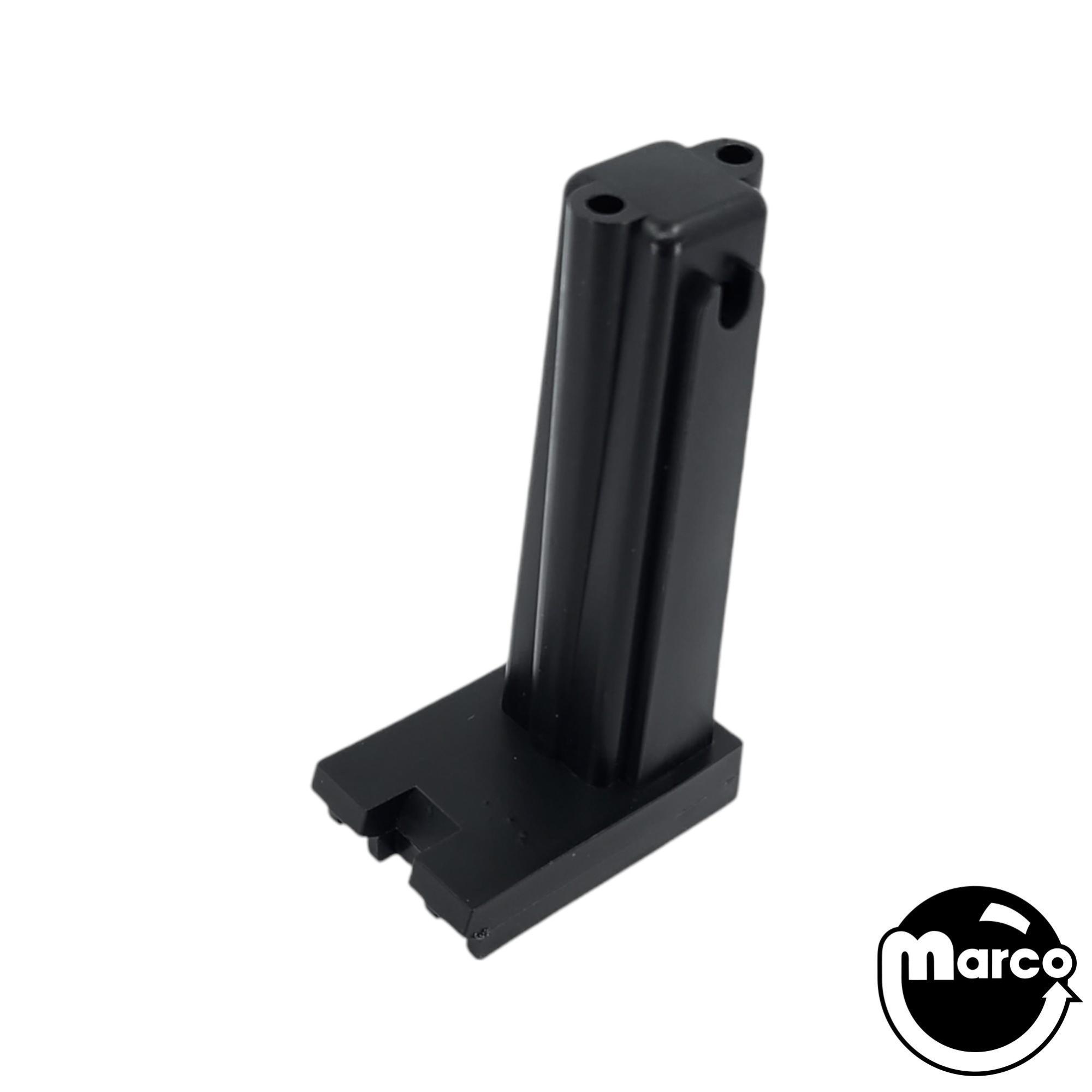

NO GOOD GOFERS (Williams) latch

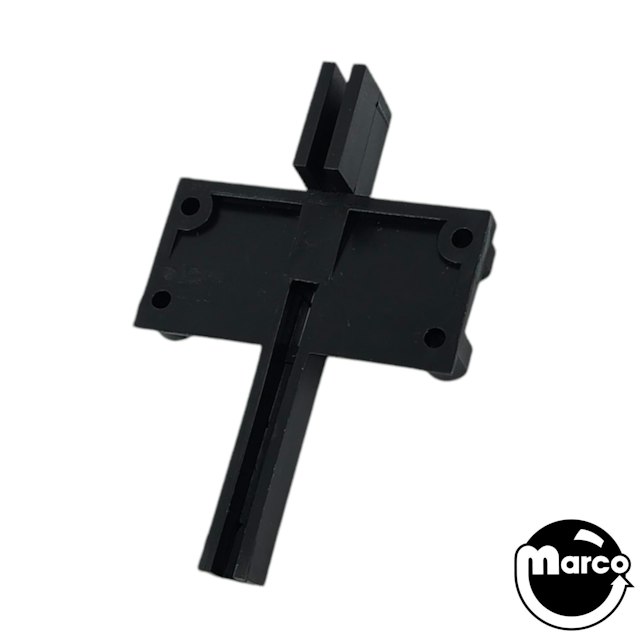

NO GOOD GOFERS (Williams) guide release
3/4" coil centering bracket with threaded studs with 5/8" centers.
NO GOOD GOFERS (Williams) Coil centering bracket 5/8 inch studs
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
spring-compression

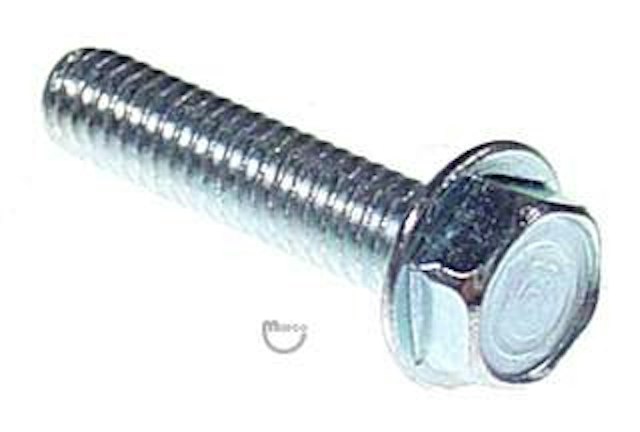

Hex washer head 8-32 thread x 3/4" long machine screw.
Sheet Metal Screw No.6 x 3/8 inch p-ph t-25
Stop nut 8-32 thread.
Infrared Transmitter assembly in the white plastic housing.
Infrared receiver assembly in the black plastic housing.
NO GOOD GOFERS (Williams) Gofer plunger
NO GOOD GOFERS (Williams) release Assy
Common solenoid coil used on many manufacturers pinballs

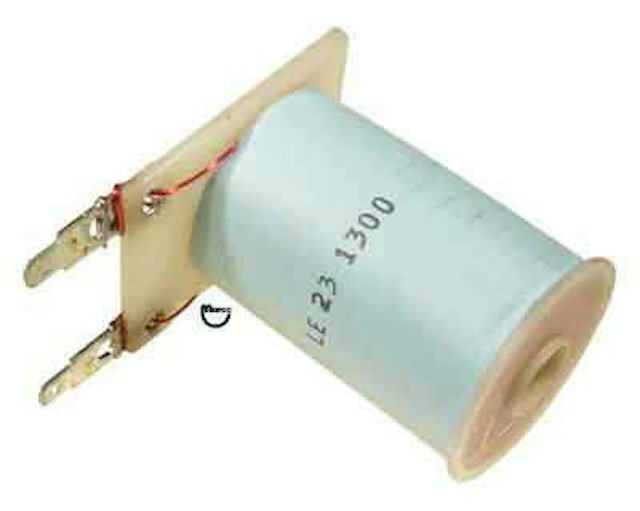

Coil - NO GOOD GOFERS

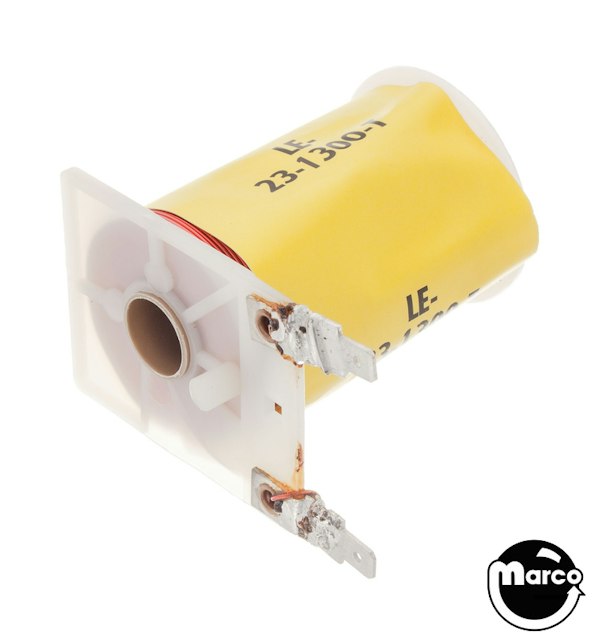

Coil - solenoid with fuse
NO GOOD GOFERS (Williams) Gofer plunger
