NO GOOD GOFERS (Williams) Gofer assembly right
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
NO GOOD GOFERS (Williams) Gofer assembly right
Ships un-assembled

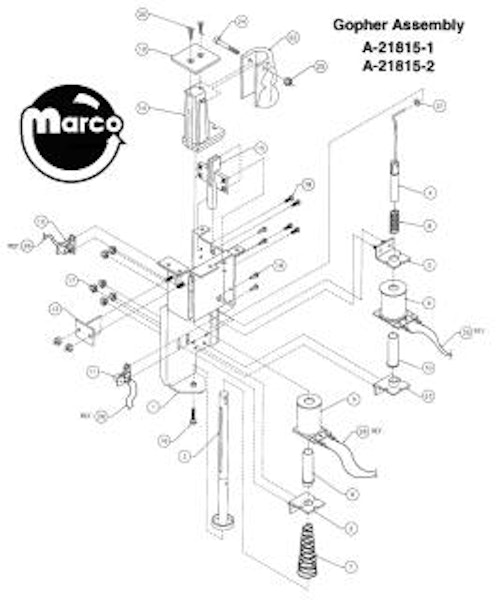

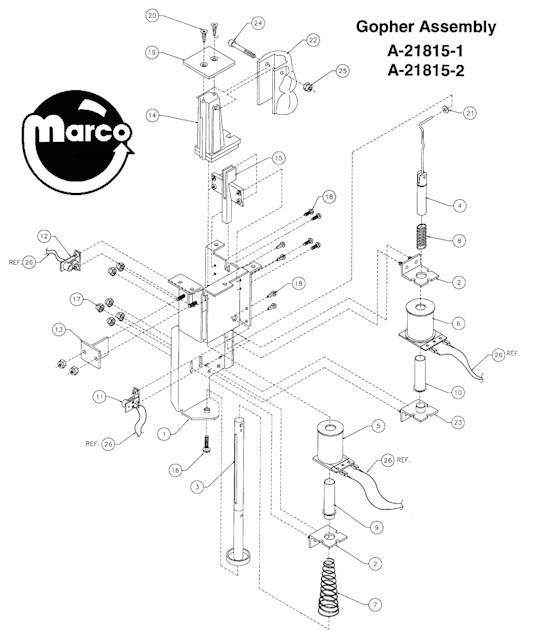

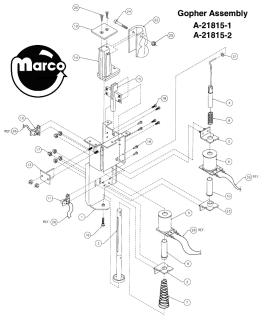

Reference:
A-21815-1 right gofer assembly
A-21815-2 left gofer assembly
01-14801.1 (1) cap-gopher
02-5439.1 (1) ms 10-32 soc head cap-modified
03-7066 (1) tubing-coil
03-7067-6 (1) tubing-coil
03-7520-2 (4) tie wrap-nylon 3 7/8
03-9805 (1) guide latch
03-9806.1 (1) latch
03-9807 (1) guide-release
04-10911-1 (2) bracket-3/4 coil centering
04-10911-4 (1) bracket-3/4 coil centering
04-10924.1 (1) bracket-gopher
04-10924.2 (1) bracket-gofer
10-135 (1) spring-plunger
10-518 (1) spring-compression
16-8799-28 (1) coil tape-1 7/8 wide
31-2955.1 (1) gopher-buzz
4010-01007-16 (1) ms 10-32x1 p-ph (unf)
4106-01013-06 (8) sms No.6 x 3/8 p-ph t-25
4108-01042-08 (2) sms No.8X1/2 p-flh-a
4408-01119-01 (8) nut 8-32 esna/ntm
4410-01129-00 (1) nut 10-32 keps unf
4700-00013-00 (1) fw .172x .375x .036 brass
5791-09400-00 (1) 4P1490 03-09-2042
5791-10774-00 (1) 4P2004 03 06-2044
5820-09078-00 (4) pm1560 02-06-2101
5820-09080-00 (4) terminal-pm1190 02-09-2101
5822-15587-00 (4) f-term quick-connect 22-18ga
A-16908 (1) opto led assembly
A-16909 (1) opto p/t assembly
A-21814 (1) gofer plunger assembly
A-21816 (1) release assembly
AE-30-2000 (1) coil
CW-30022-0 (8) wire 22awg black
CW-30022-5 (8) wire 22awg green
CW-30022-84 (9) wire 22awg gry/yel
CW-30022-9 (9) wire 22awg white
H-22161.1 (1) gofer cable
HW-30018-1 (8) wire 18awg brown
HW-30018-20 (8) wire 18awg red/blk
HW-30018-21 (8) wire 18awg red/brn
HW-30018-7 (8) wire 18awg violet
LE-23-1300 (1) coil
Select manufacturer to view game compatibility
3/4" coil centering bracket with threaded studs with 5/8" centers.
3/4" coil centering bracket with threaded studs with 5/8" centers.
NO GOOD GOFERS (Williams) Coil centering bracket 5/8 inch studs
NO GOOD GOFERS (Williams) Gofer plunger
NO GOOD GOFERS (Williams) release Assy
