TALES ARABIAN NIGHTS Vanishing magnet assembly kit
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

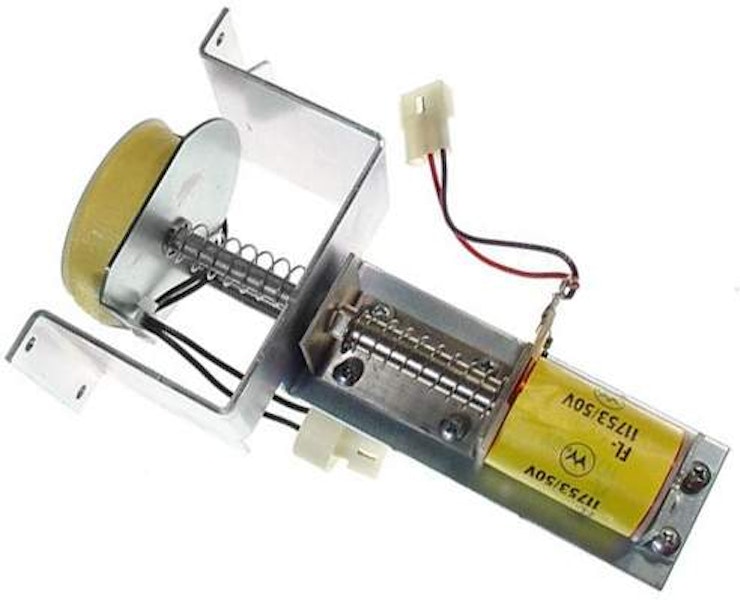

Williams TALES OF THE ARABIAN NIGHTS vanishing magnet assembly
Ships un-assembled. Wire harness not included.
Reference:
A-20644 vanishing magnet assembly
01-14166 bracket-vanish magnet shaft
01-14179 plate-vanishing magnet
01-14182 bracket-vanishing magnet post
02-5231 plunger-vanishing magnet
02-5234 shaft-vanishing magnet
02-5251 post-guide
03-7066-5 tubing-coil
03-7655-12 clamp cable 3/4 inch dia.
03-9454 cable tie 4 inch long
04-10307 bracket-vanishing magnet
04-10373 pole piece-vanishing magnet
10-406 spring
20-10197 coil magnet-w/breaker small hole
20-8712-43 e-ring 7/16 shaft
20-8790-2 nyliner bearing
4008-01003-04 (2) machine screw 8-32x 1/4 p-ph s
4008-01003-10 (2) machine screw 8-32 x 5/8 p-ph-s
4010-01008-06 (2) machine screw 10-32X3/8 p-ph-n
4408-01119-01 (3) nut 8-32 esna/ntm
4700-00011-00 (1) flat washer .172 x .437 x .059
4701-00004-00 (2) lock washer No.10 split
5791-09111-00 (1) 3p1396 03-09-2032
5820-09080-00 (2) terminal-pm1190 02-09-2101
A-10821 flipper stop bracket
FL-11753 flipper coil-yellow
Select manufacturer to view game compatibility
Bracket for Vanishing Magnet on Williams TALES OF THE ARABIAN NIGHTS.
TALES ARABIAN NIGHTS (WMS) Magnet plate
Bracket-vanishing magnet post
Williams TALES OF THE ARABIAN NIGHTS pinball machine vanishing magnet plun...

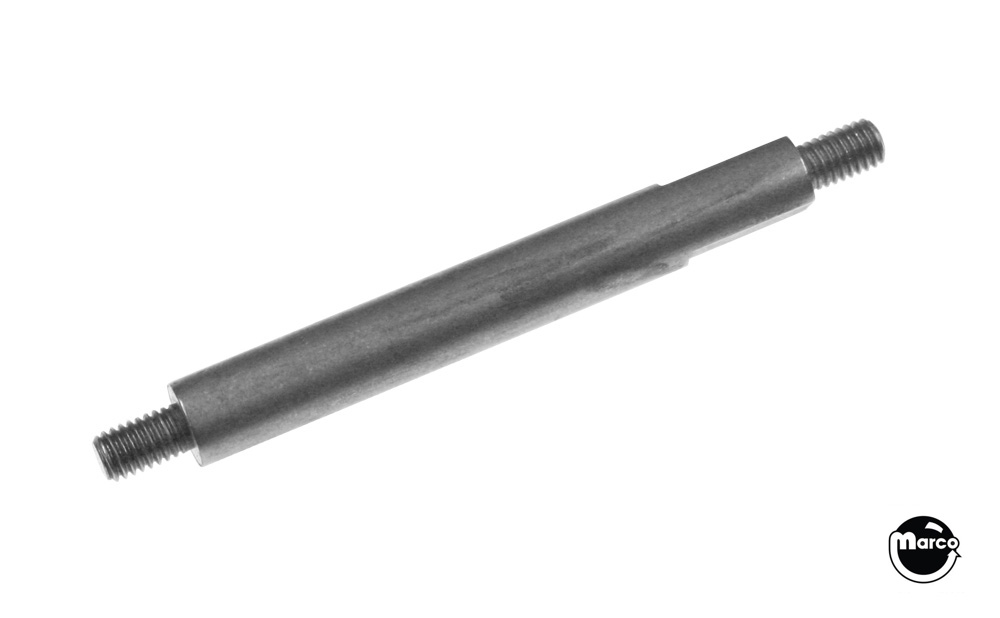

Vanishing magnet Shaft for Williams TALES OF THE ARABIAN NIGHTS pinball machine...
Used on Williams TALES OF THE ARABIAN NIGHTS playfield.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Cable clamp 3/4 inch diameter single
Cable tie 4 inch - single

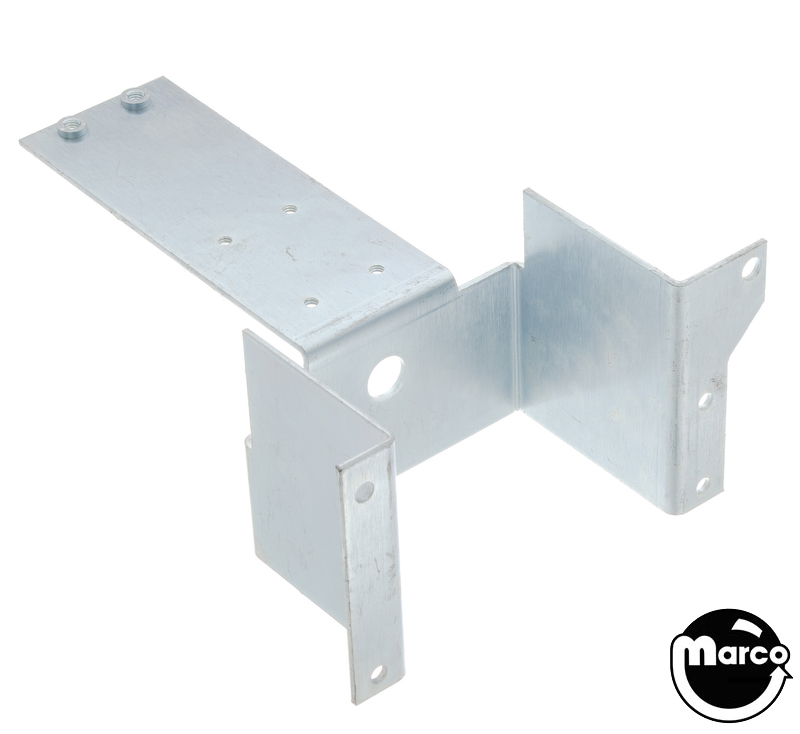

TALES ARABIAN NIGHTS (WMS) Vanishing magnet bracket

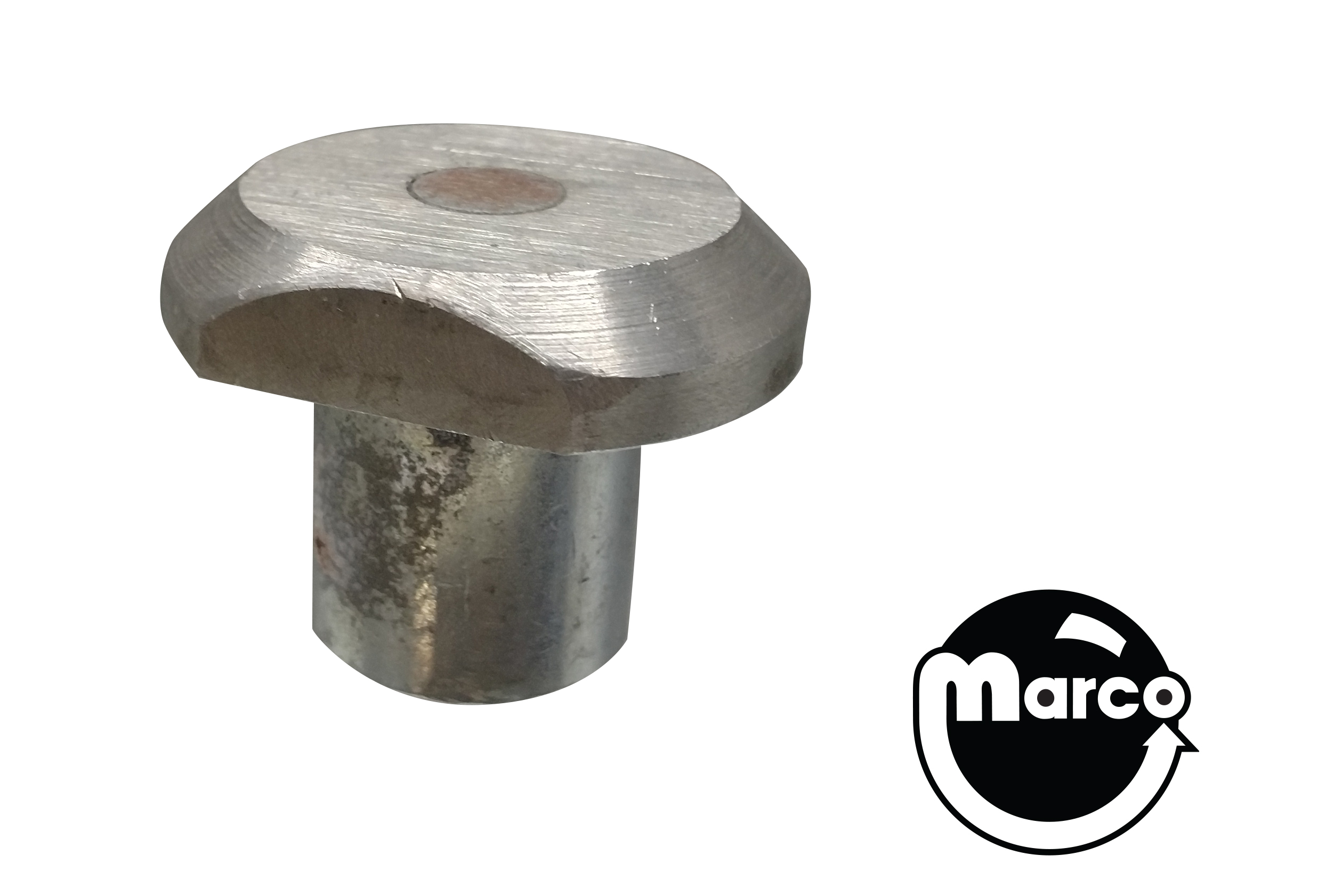

Pole piece - vanishing magnet

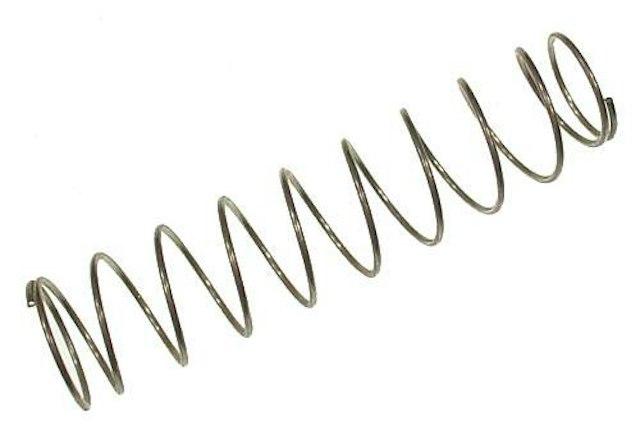

Spring - compression
