Williams WPC System trough 7 opto 2 board set.

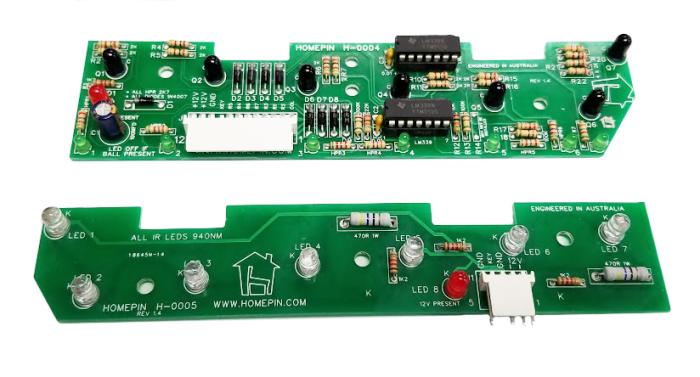

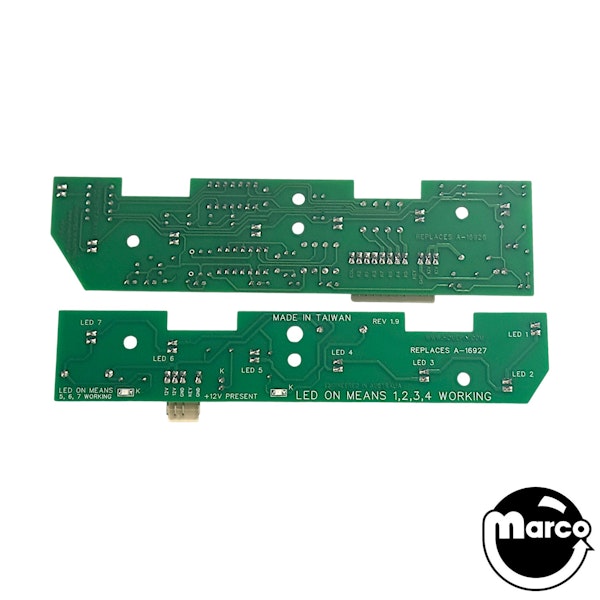

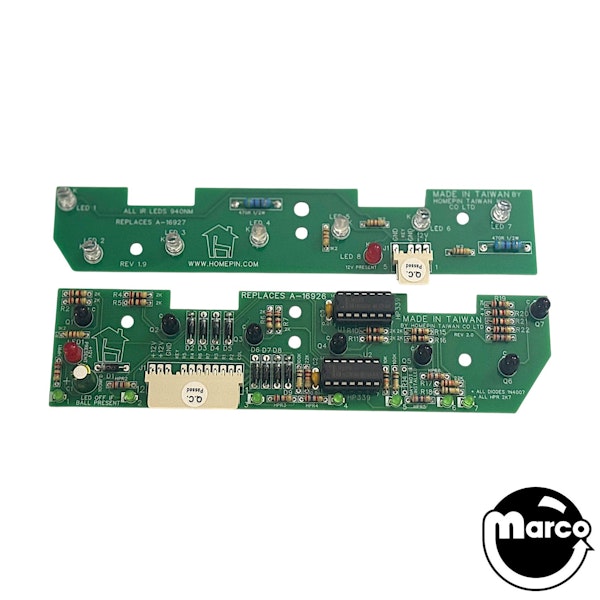

Upgrade Kit replaces the 2 boards in the 7-opto ball trough. One is a transmitter board and one is the receiver board.
Fits the following Wide Body Williams / Bally pinball machines.
(Williams) INDIANA JONES
(Williams) STAR TREK THE NEXT GENERATION
(Bally) JUDGE DREDD
(Williams) DEMOLITION MAN
Reference:
A-16529
A-16530
A-17982 receiver blue board
A-17981 emitter green board
Select manufacturer to view game compatibility
Washer .265 x .500 x .015 inches
Used on PC Board (PCB) as a mounting grommet. 3/8 inch OD.
Spacer - metal mount bushing
Machine screw with 4-40 thread and 5/8" long with phillips pan head
Trough anti magnetic shim - Williams/Bally upgrade

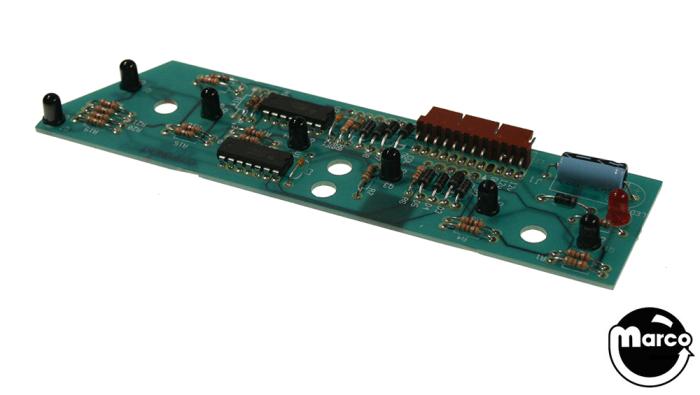

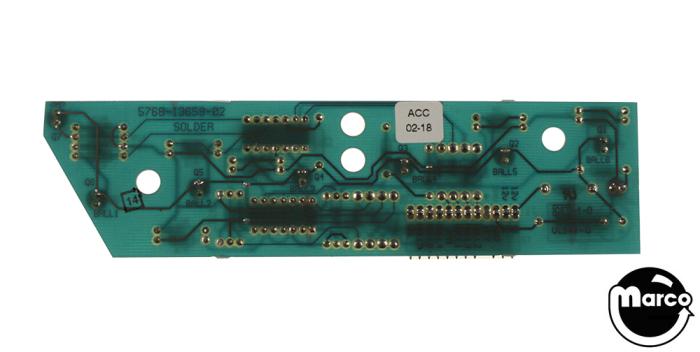

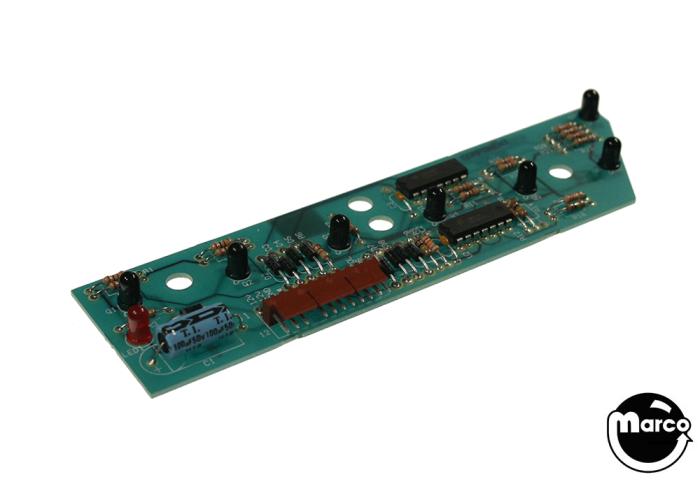

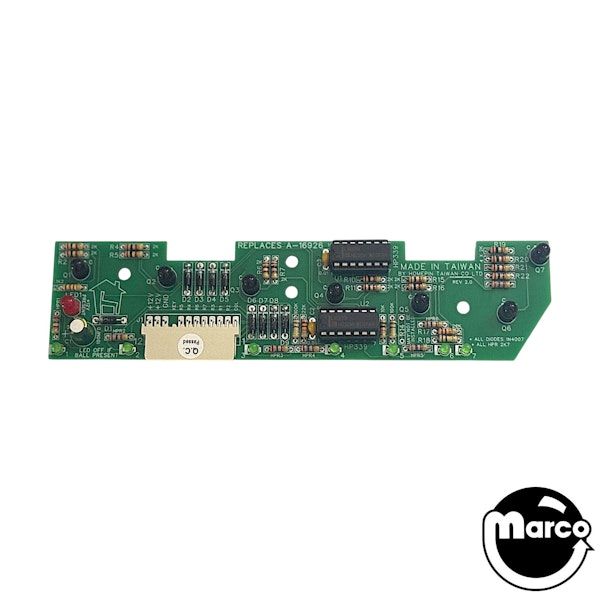

7 transistor opto receiver board

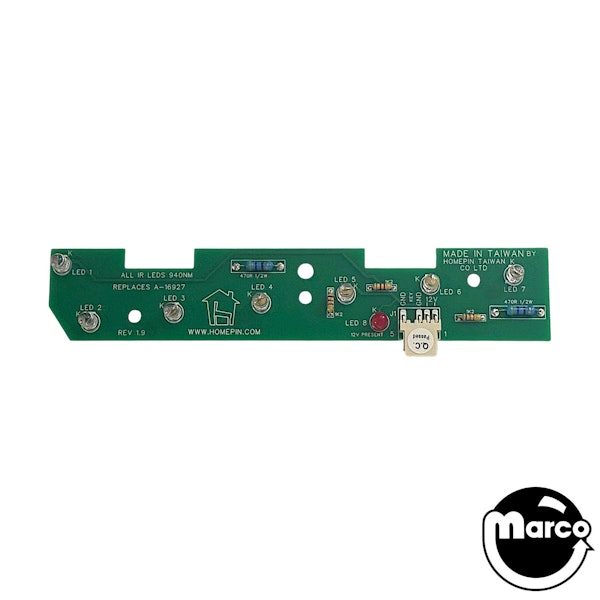

7 ball trough LED emitter assembly
