7 transistor opto receiver board
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

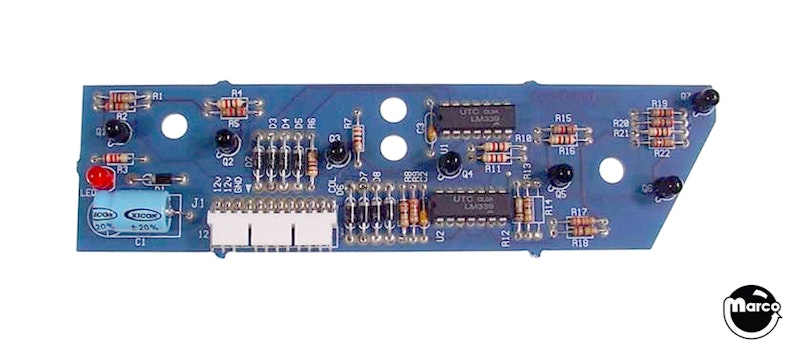

7 opto ball trough receiver board.
Reference:
A-17982 / A-16927 transmitter
A-17981 / A-16926 receiver
5040-12298-00 (1) capacitor 100M 40V-10+50 axial
5163-14114-00 (7) transistor photo infra red T1&3/4
5370-12272-00 (2) ic LM339 quad comp
5671-13732-00 (1) LED display red
5791-12622-12 (1) 12h r/a lck hdr .100 solid tab
A-17981-AI (1) 7 opto trough pcb
5010-08774-00 (2) resistor 22K 1/4W 5%
5010-09034-00 (1) resistor 10k 1/4w 5%
5010-09162-00 (3) resistor 100k 1/4w 5%
5010-09314-00 (1) resistor 1.2K 1/4W 5%
5010-09999-00 (14) resistor 2K 1/4 W 5%
5043-08980-00 (2) capacitor 0.01m 50v +80-20 axial
5070-09054-00 (9) diode-1N4004 1.0a
5768-13659-02 (1) pcb-7 ball trough opto
