Ball trough assembly Williams
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

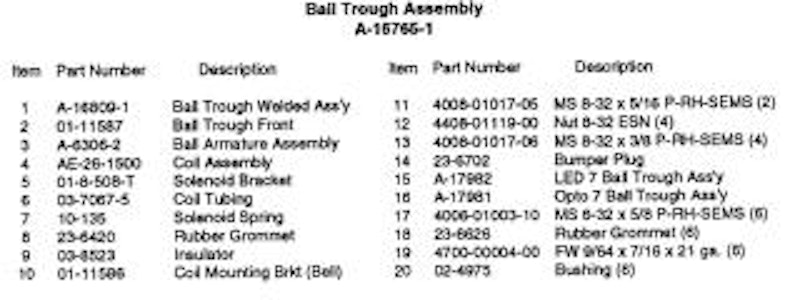

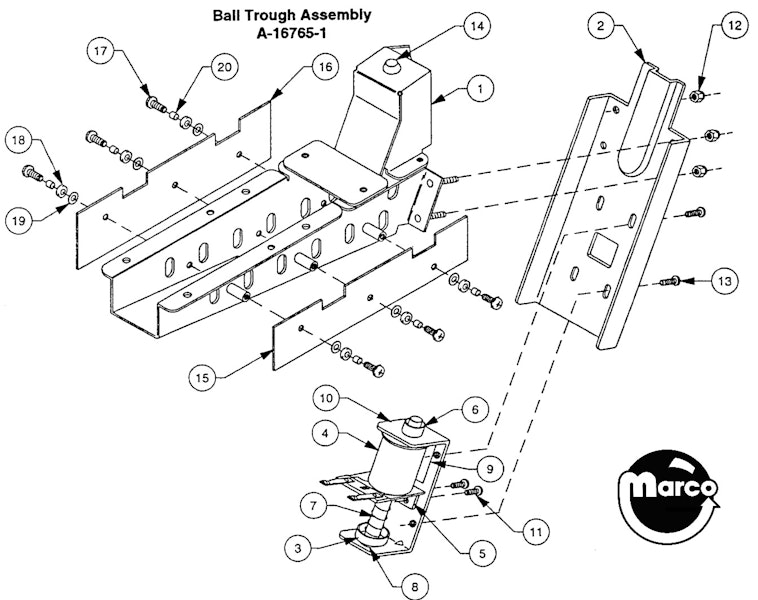

Williams complete ball trough assembly
Ships un-assembled
Reference:
A-16765-1
Select manufacturer to view game compatibility
Coil mounting bracket used on: Attack from Mars Cactus Canyon Champ...
Williams pinball machine metal front ball trough bracket
Spacer - metal mount bushing
Commonly used in many Williams, Bally and Stern pinball machines.
Insulator used in Bally & Williams games
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
Used on PC Board (PCB) as a mounting grommet. 3/8 inch OD.
Damper plug grommet 1 inch round blue
Used as plunger rest on up-kickers, knockers, pop bumper assemblies, etc.
Machine screw with 6-32 thread and 5/8" long with phillips pan head and in...
Machine Screw 8-32 x 5/16" long phillips pan head sems with external tooth...
Machine screw 8-32 thread x 3/8 inch long phillips round head. Replaced by 4008-01003-06
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
Washer .146 x .375 x .032 inch
Coil support bracket.

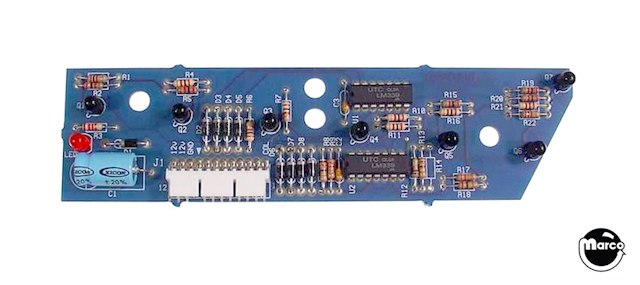

7 transistor opto receiver board

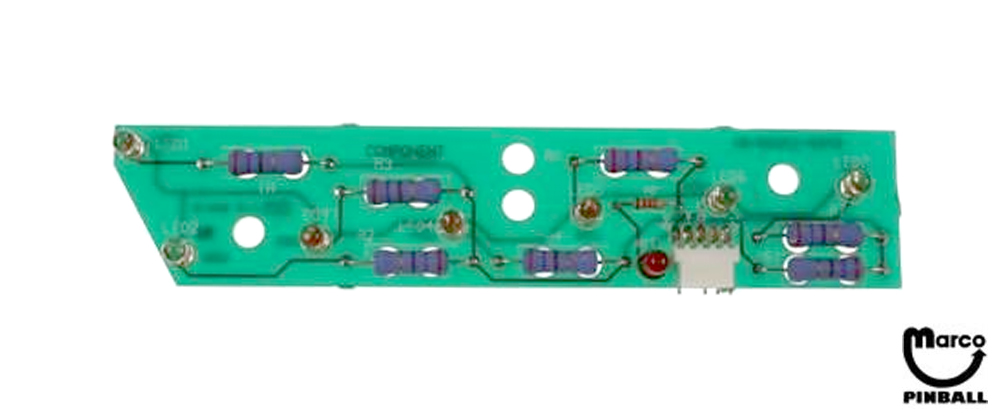

7 ball trough LED emitter assembly
Bell armature or plunger assembly for ball kickers and poppers
Common solenoid coil used on many manufacturers pinball machines.
