Drop target assembly Williams 3 bank
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

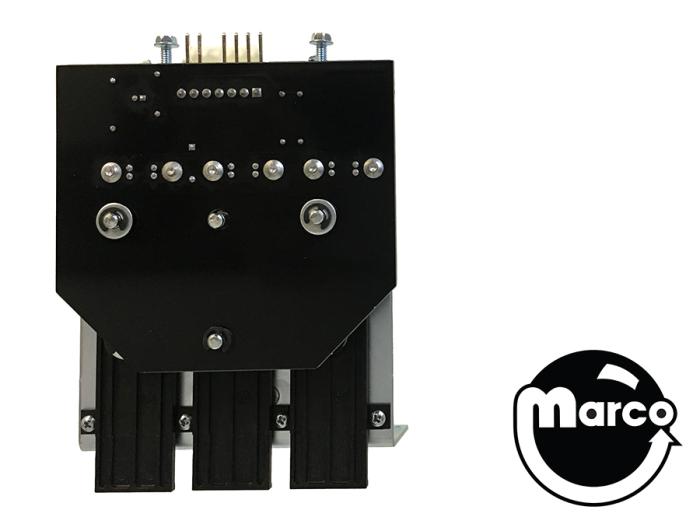

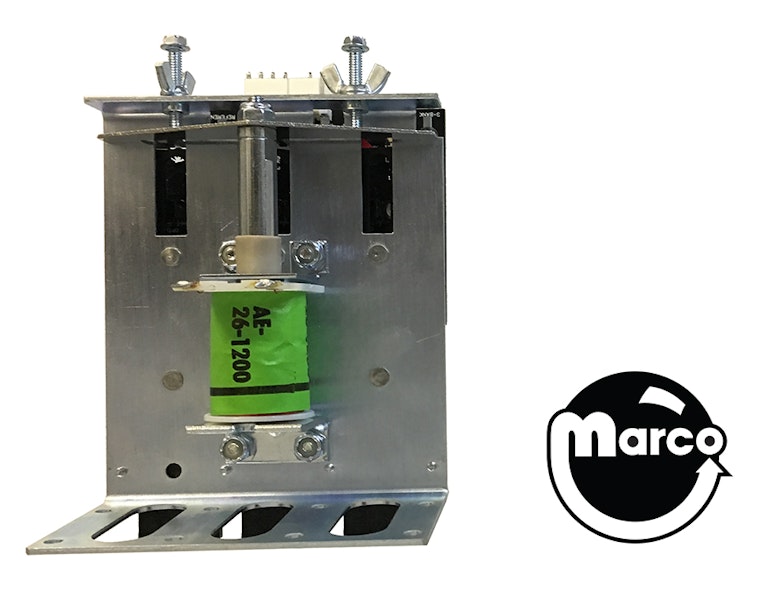

Williams 3 bank-drop target assembly
Reference:
A-16032-1 triple bank drop target assembly
01-11769 (1) plate 3 bank reset
01-8413-1 (1) bracket coil mtg
02-3972-1 (1) plunger
03-7066-4 (1) tubing-coil
03-8334-3 (1) target stop 3.937
03-8749 (3) target-plain-black
04-10516-3 (1) bracket 3 bank drop target
10-364 (3) spring-retractor
10-392 (3) spring-extension
20-8712-25 (6) e ring 1/4 shaft
23-6622 (1) tape-double sided
23-6626 (3) grommet
4004-01005-04 (4) ms 4-40 x 1/4 p-ph
4010-01025-14 (2) ms 10-32 x 7/8 p-rh
4408-01119-00 (4) nut 8-32 esn
4410-01132-00 (1) nut 10-32 esn
4700-00016-00 (2) fw .187 x .437 x .053
4700-00072-00 (9) fw .265 x .500 x .032
5791-12570-00 (1) 1545-Z 03-09-2022
5820-09080-00 (2) terminal-pm1190 02-09-2101
A-11397 (1) drop target stop bkt
A-13609 (1) 3 bank drop target pcb assy
AE-26-1200 (1) coil
H-19523 (1) 2 pin cable-solenoid
HW-30018-2 (3) wire 18awg red
HW-30018-7 (3) wire 18awg violet
Select manufacturer to view game compatibility

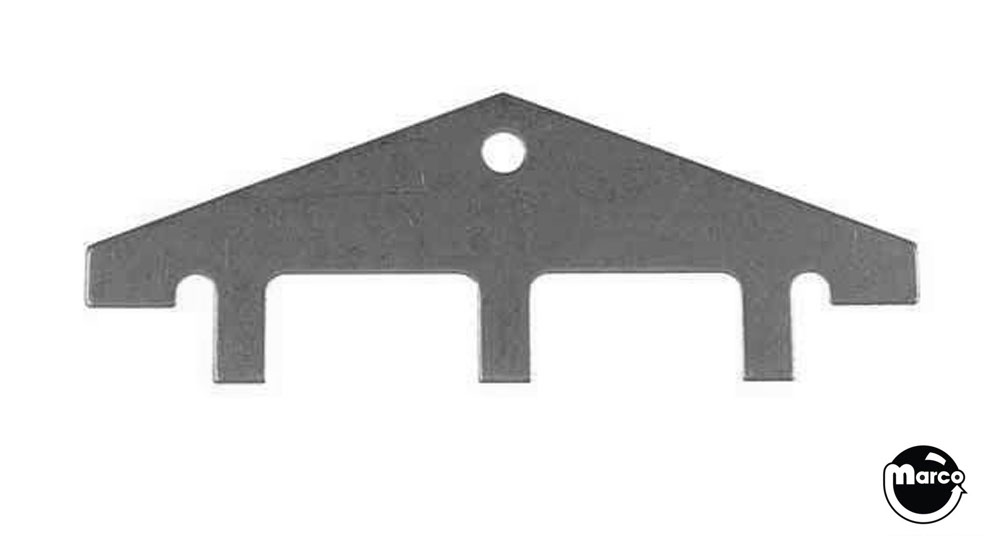

Drop target reset plate Williams triple
2-1/2" plunger overall length with a 10-32 thread stud
Used on PC Board (PCB) as a mounting grommet. 3/8 inch OD.
Machine Screw 10-32 x 7/8 inch p-ph-s
3-Bank drop target assembly. Includes: 3-bank bracket and stud assembly

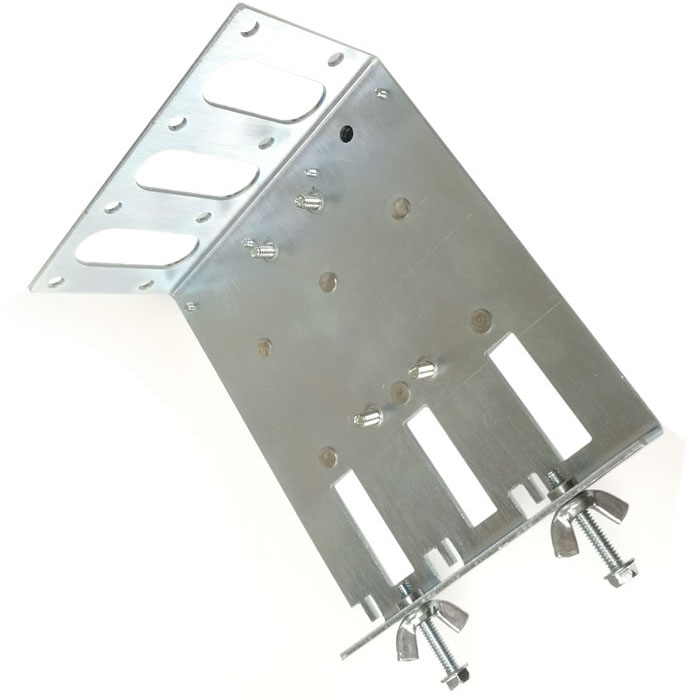

Drop target bracket Williams 3 bank
4 bank drop target assy
