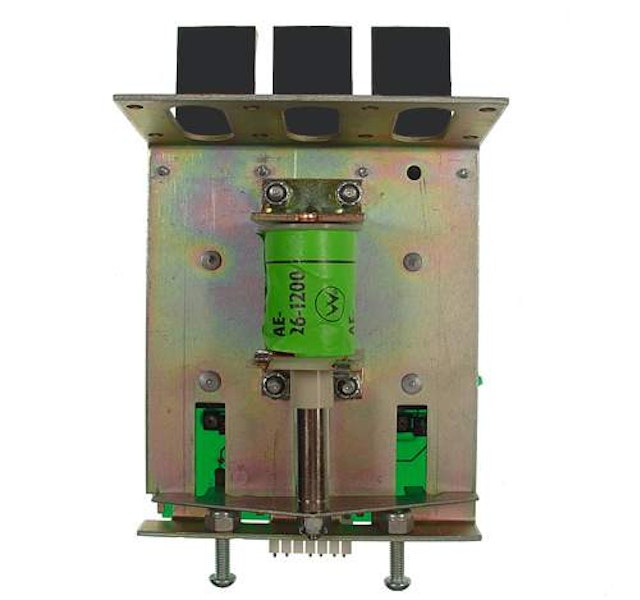

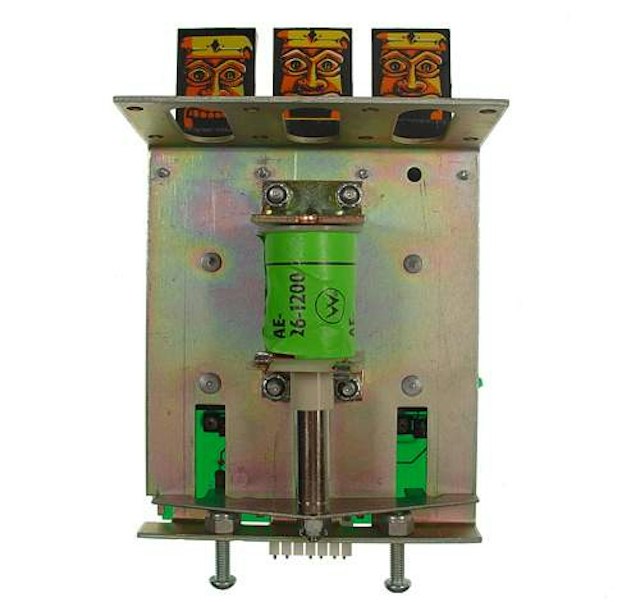

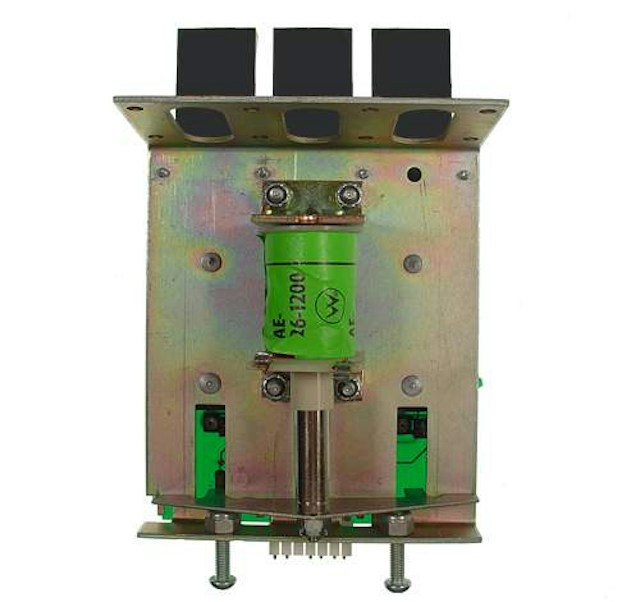

INDIANA JONES (Williams) 3-bank DT assy
#A-16032-2

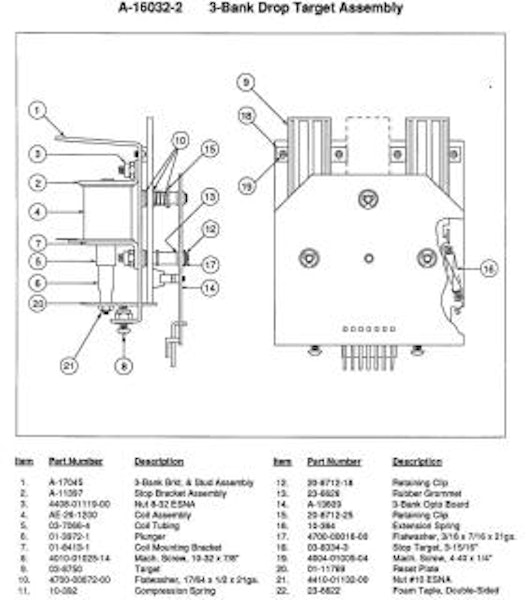

Williams 3-bank drop target assembly.
Reference:
- A-16032-2
- A-17045 triple bank bracket and stud assembly
- A-11397 stop bracket assembly
- 01-8413-1 coil mounting bracket
- A-13609 opto board
- AE-26-1200 with sleeve 03-7066-4 and plunger 01-3972-1 01-11769 reset plate
- 5768-12630-03 circuit board
- 01-11769 (1) plate 3 bank reset
- 01-8413-1 (1) brackte coil mounting
- 02-3972-1 (1) plunger
- 03-7066-4 (1) tubing-coil
- 03-8334-3 (1) target stop 3.937
- 03-8749 (3) target-plain-black
- 04-10516-3 (1) bracket-3 bank drop target
- 10-364 (3) spring-retractor
- 10-392 (3) spring-extension
- 20-8712-18 (3) e ring 3/16 shaft
- 20-8712-25 (6) e ring 1/4 shaft
- 23-6622 (1) tape-double sided
- 23-6626 (3) grommet
- 4004-01005-04 (4) ms 4-40X1/4 p-ph
- 4010-01025-14 (2) ms 10-32X7/8 p-rh
- 4408-01119-00 (4) nut 8-32 esn
- 4410-01132-00 (1) nut 10-32 esn
- 4700-00016-00 (2) fw .187X.437X.053
- 4700-00072-00 (9) fw .265X.500X.032
- 5791-12570-00 (1) 1545-Z 03-09-2022
- 5820-09080-00 (2) terminal-pm1190 02-09-2101
- A-11397 (1) drop target stop bracket

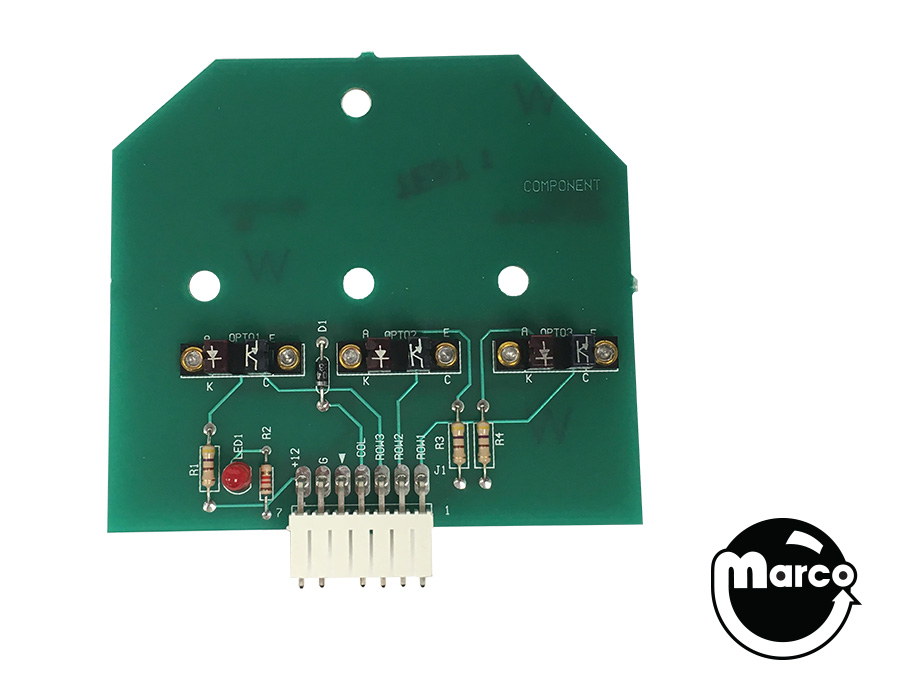

- A-13609 (1) 3 bank drop target pcb
- AE-26-1200 (1) coil
- H-19523 (1) 2 pin cable-solenoid
- HW-30018-2 (3) wire 18awg red
- HW-30018-7 (3) wire 18awg violet
1.28 lb
