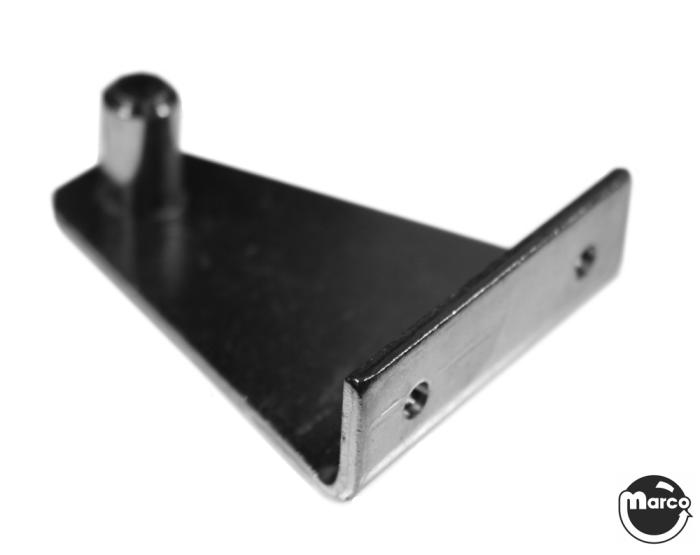

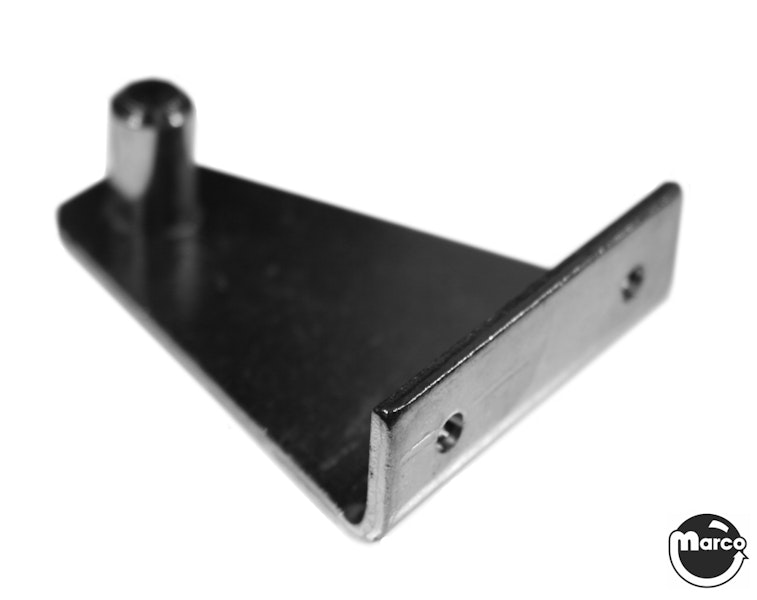

Bracket - playfield pivot Stern
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Pivot bracket for playfield to cabinet support assembly in Data East / Sega / late Stern pinball machines. Mounts to underside of playfield.
Length of bracket is 2 inch from base to center of stud.
Rests on playfield support slide 535-6862-05 which is fastened to the cabinet.
Reference:
500-5329-00
500-5329-01
500-5329-02
500-5329-03 - 2 inch length to stud center
Capcom
Select manufacturer to view game compatibility

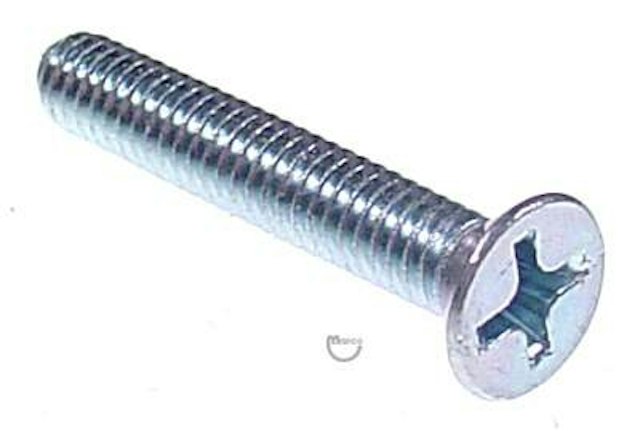

Machine screw 8-32 thread x 1" long phillips flat head.
