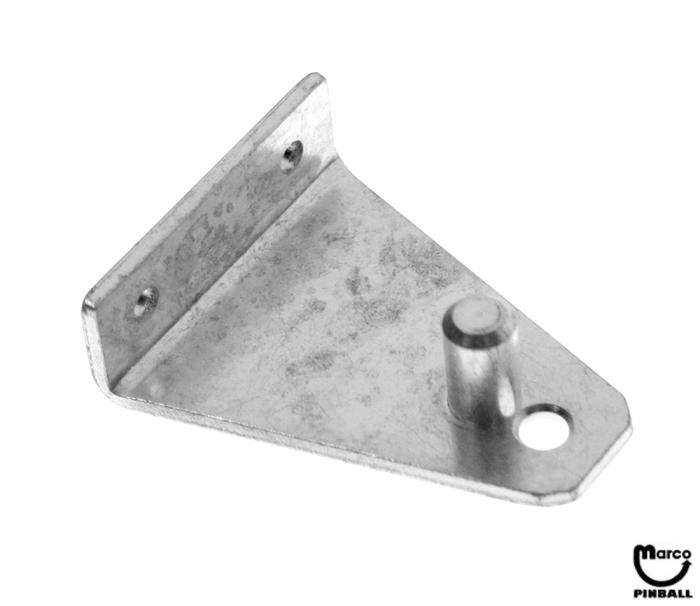

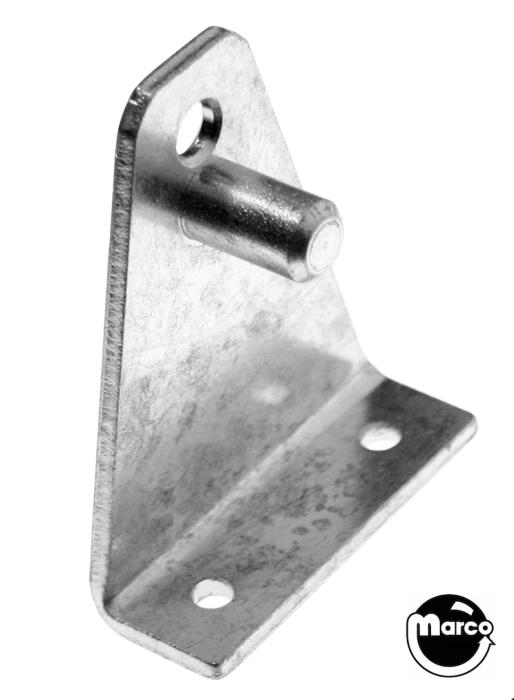

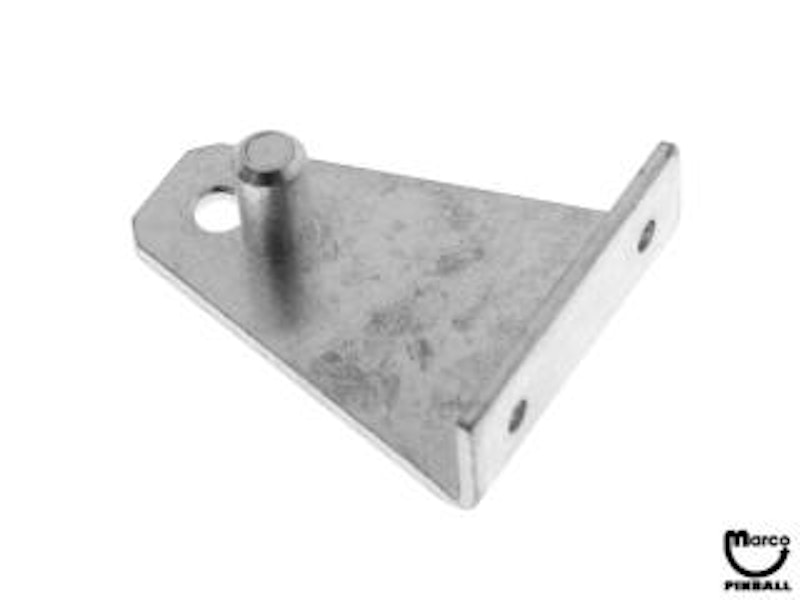

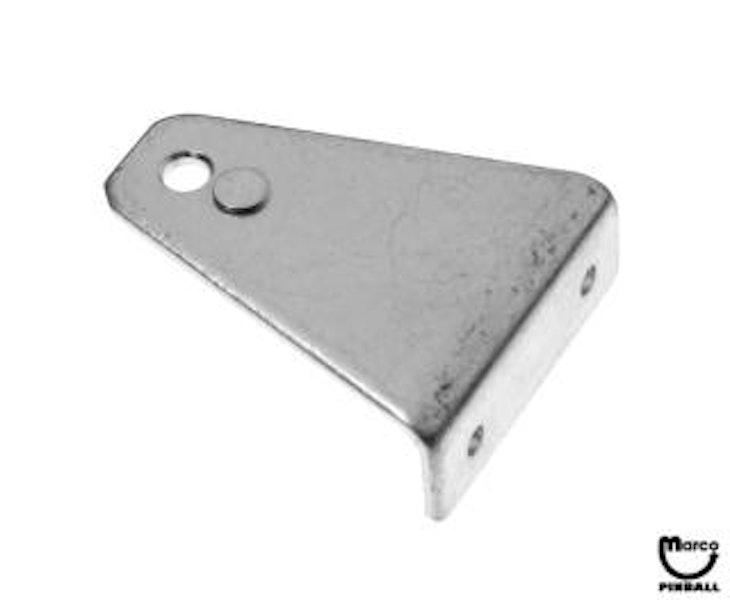

Pivot bracket for playfield to cabinet support assembly in Data East / Sega / late Stern pinball machines. Mounts to underside of playfield.
Length of bracket is 2 inch from base to center of stud.
Rests on playfield support slide 535-6862-05 which is fastened to the cabinet.
Reference:
- 500-5329-04
- 500-5329-00
- 500-5329-01
- 500-5329-02
- 500-5329-03 - 2 inch length to stud center
- Capcom
2.5
oz
