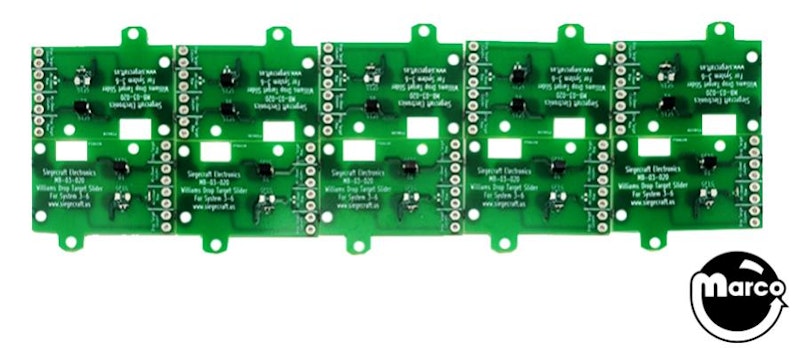

New replacement drop target contact circuit board kit for early Williams System 3 through System 6 solid state pinball machine drop target assemblies.
This 10 board kit is designed for:
- Williams PHOENIX
Use with horseshoe shaped leaf switch copper contacts (sold separately)
This new design includes:
- Board mounted switch diodes to eliminate externally mounted parts and some of the associated wiring
- On-board jumpering and diode for the 'all-down' circuit, to further eliminate external wires
- Extra wiring holes eliminates need to double up wires in solder connections
- Wiring holes spaced for utilizing an optional .156" connector header
- Board labeled to identify wires
Reference:
- 1B-2001-124
- 1B-2001-124-4
- A-7969
- A-7969-A
4
oz
