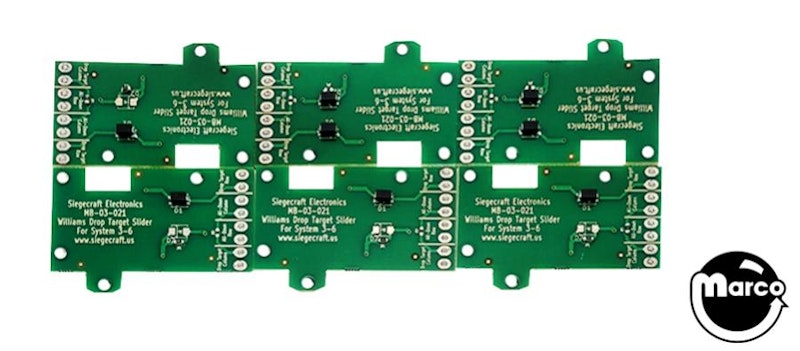

Drop target contact circuit board kit Williams (6)

#1B-2001-AK02

New replacement drop target contact circuit board kit for early Williams System 3 through System 6 solid state pinball machine drop target assemblies.

This 6 board kit is designed for:

  • Williams BLACKOUT
  • Williams GORGAR
  • Williams FIREPOWER (modified or prototype only)

    Use with horseshoe shaped leaf switch copper contacts (sold separately)

    This new design includes:

    • Board mounted switch diodes to eliminate externally mounted parts and some of the associated wiring
    • On-board jumpering and diode for the 'all-down' circuit, to further eliminate external wires
    • Extra wiring holes eliminates need to double up wires in solder connections
    • Wiring holes spaced for utilizing an optional .156" connector header
    • Board labeled to identify wires


Reference:

  • 1B-2001-124
  • 1B-2001-124-4
  • A-7969
  • A-7969-A

2.5 oz

$27.99

In Stock
