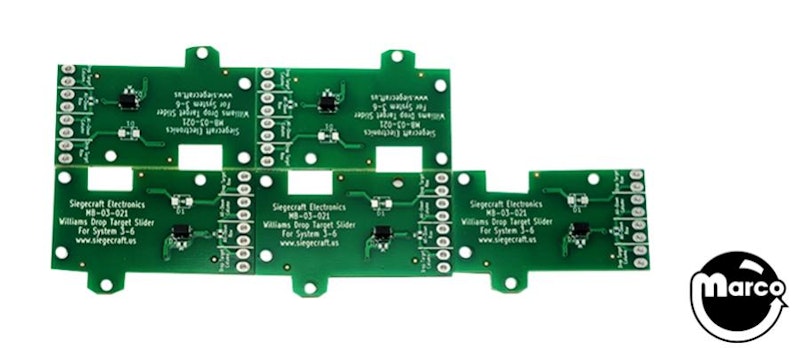

Drop target contact circuit board kit Williams (5)

#1B-2001-AK03
Availability
In Stock
Price
$25.99
Order
Product details

New replacement drop target contact circuit board kit for early Williams System 3 through System 6 solid state pinball machine drop target assemblies.

This 5 board kit is designed for:

Williams ALIEN POKERWilliams DISCO FEVER

Use with horseshoe shaped leaf switch copper contacts (sold separately)

This new design includes:

  • Board mounted switch diodes to eliminate externally mounted parts and some of the associated wiring

  • On-board jumpering and diode for the 'all-down' circuit, to further eliminate external wires

  • Extra wiring holes eliminates need to double up wires in solder connections

  • Wiring holes spaced for utilizing an optional .156" connector header

  • Board labeled to identify wires


Reference:

  • 1B-2001-124

  • 1B-2001-124-4

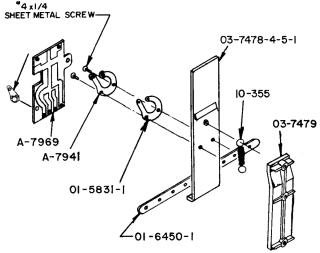

  • A-7969

  • A-7969-A


2 oz
