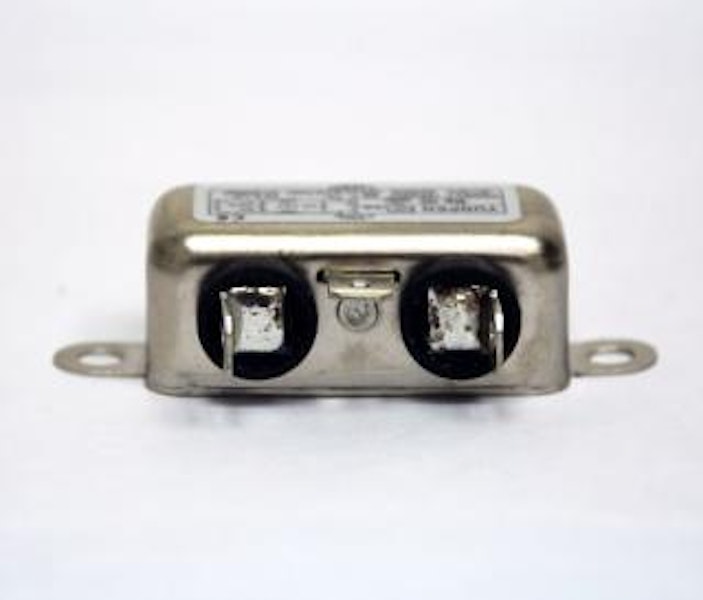

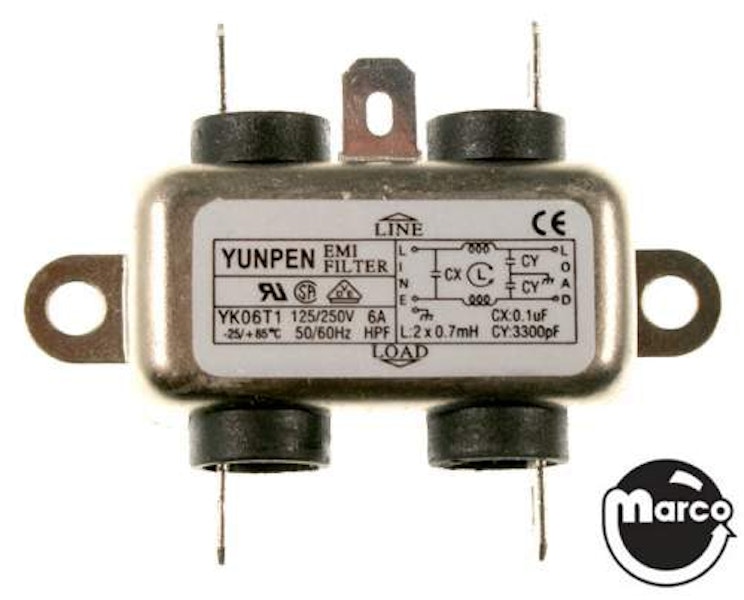

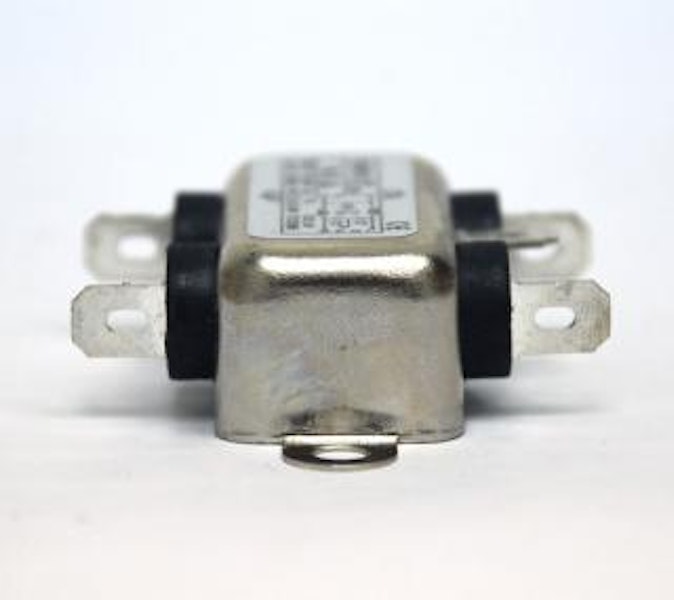

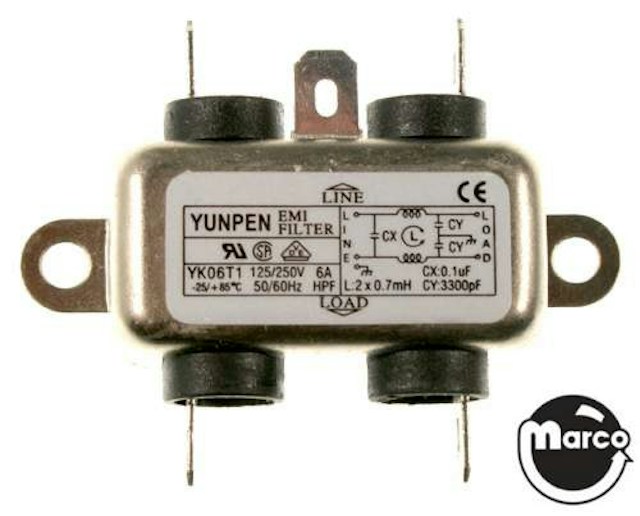

EMI line filter 125/250V - 6 Amp - 50/60 Hz.
Electrical specification
- L= 2 x 0.7mH, Cx=0.1uF, Cy=3300pF
- Working temperature : -25~+85℃
- UL CSA VDE certified
Dimensions:
- Main body length 44.8 x width 22.5 x height 18.0mm
- Mounting holes / pitch: 4.7mm, diameter / 54.0mm
- Net weight approx: 32 grams
Reference:
- 150-5000-00
- 150-5000-01

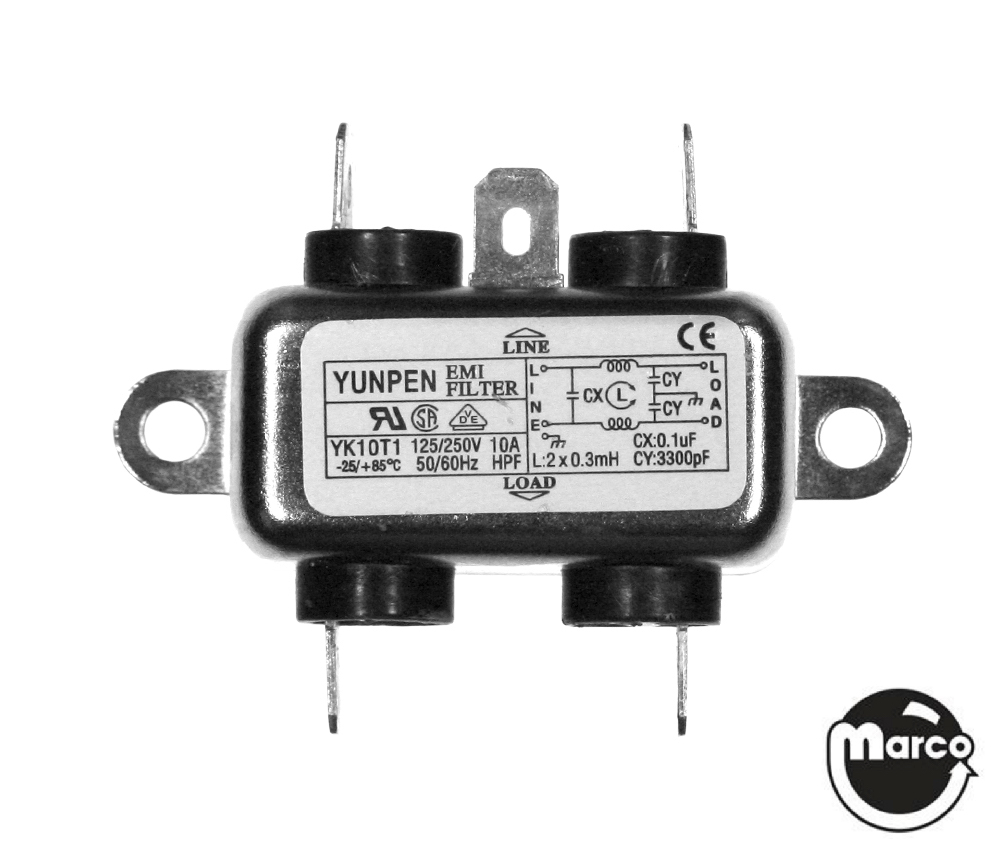

- May sub 150-5016-00
1.13
oz
