AC line filter 5VK1

#5102-10310-00

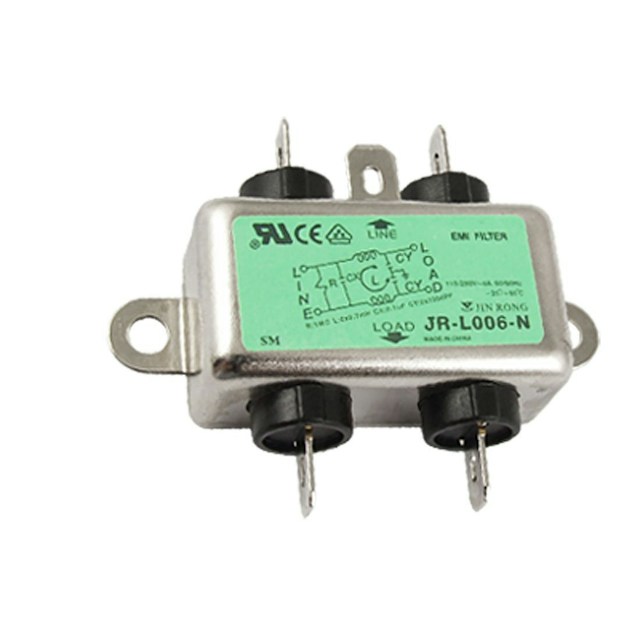

AC Power Line EMI Filter with quick connect tabs

Model JR-L006-N line filter 5VK1

  • Rated Voltage: 115/250VAC, 50/60Hz
  • Rated Current: 6A
  • Inductance(L): 2 x 0.7mH
  • Capacitance: Cx: 0.1uF;Cy: 2 x 3300pF
  • Resistance(R): 1MΩ
  • Working Temperature: -25°C--+85°C
  • Installing Hole Diameter: 5mm/0.2"
  • Overall Size(Approx): 65 x 5 x 18mm/2.6"L x 2"W x 0.71"D
  • Material(External): Metal
  • Color: Silver Tone
  • Net Weight: 33g

Reference:

  • 5102-10310-00
  • JR-L006N
  • JRT0406-2
  • A11061700UX0278

1 oz

$22.99

In Stock
