RED LED light for Star Posts
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

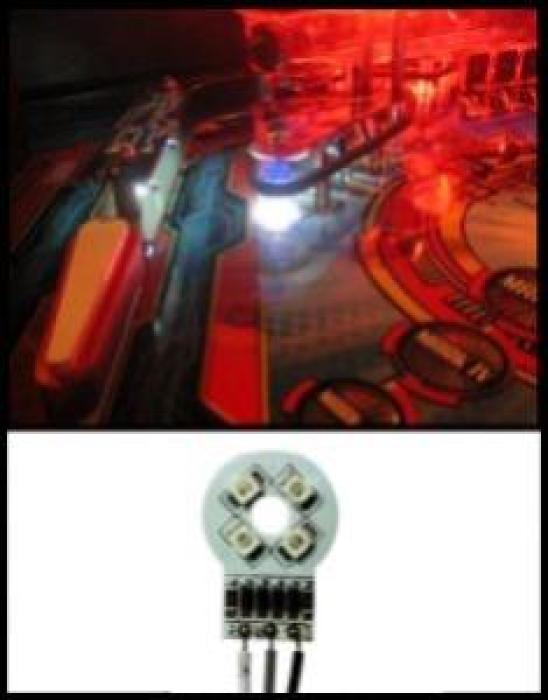

6.3V AC Playfield Star Post LED
Make your playfield lighting pop!
Fits standard 1-1/16" star posts on Williams, Bally, Data East, Sega, and late-model Stern machines.

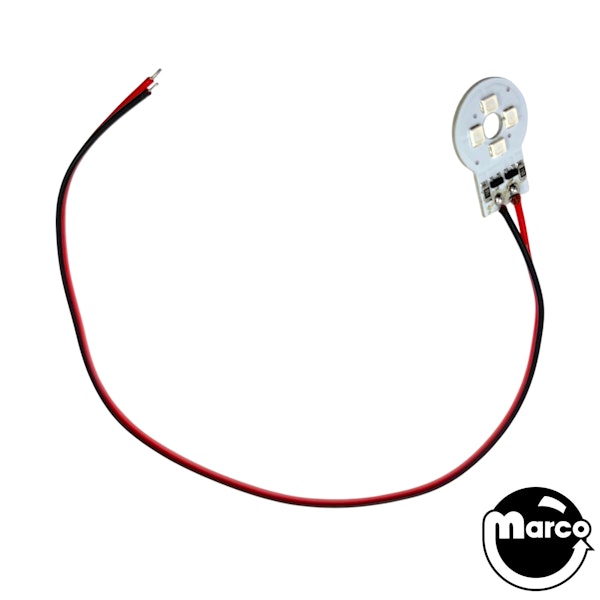

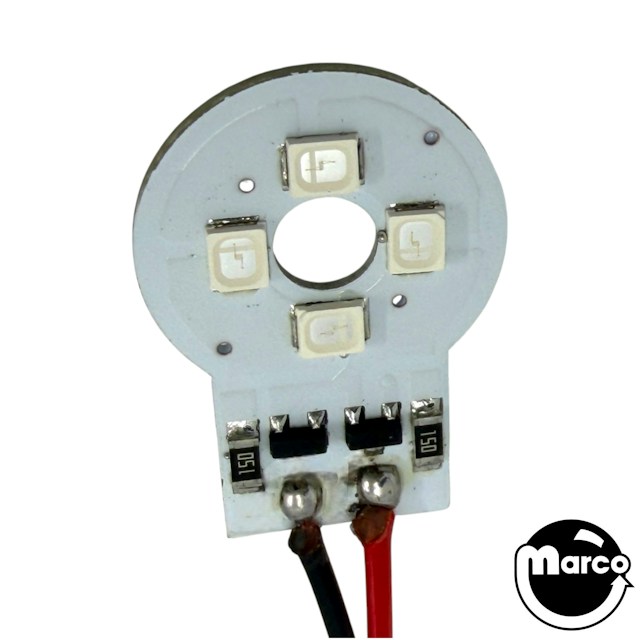

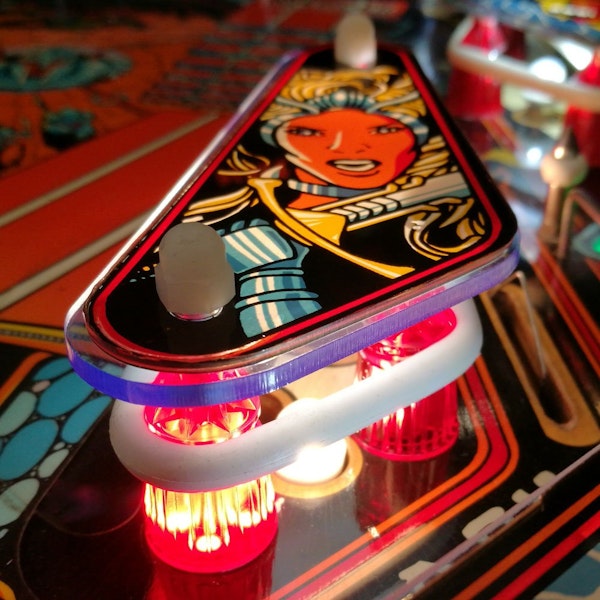

Installs neatly under any single-ring 03-8319-XX star post. Includes LED board and wiring.
Compatibility note: Designed for 6VAC lighting systems (Williams, Bally, Data East, Sega, Stern).
Not compatible with 5VDC systems (Jersey Jack, Spooky, Dutch Pinball). Will not fit under double-ring or concentric-ring posts.
Reference:
03-8319-XX star post
Before you start: This install requires basic soldering skills. Always power off your machine before working on it. Take your time — rushing leads to mistakes.
Step 1: Power down
Turn off your machine completely.
Step 2: Position the LED board
Slide the LED board loosely beneath your star post. It should sit comfortably under the plastic without forcing.
Step 3: Route the wires
Feed the wires through a nearby playfield hole to the underside. Keep them away from ball traffic areas.
Step 4: Choose your lighting style
For always-on illumination:
Connect the RED and BLACK wires to any nearby general illumination (GI) lamp. Your post will light up with the rest of your GI.
For flashing action:
Connect the BLACK wire to the negative side of a nearby coil or flash lamp. Your post will flash in sync with that feature. (Note: this dims the post slightly, but adds drama.)
Step 5: Clean up and secure
Double-check your connections, then use a cable tie to secure excess wire away from any moving parts.
That's it. Power up and watch your playfield come to life with upgraded lighting effects!
