For 6 VAC game lightning systems found in Williams, Bally, Data East, Sega, and Stern pinball.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
6.3 volt AC playfield star post illumination

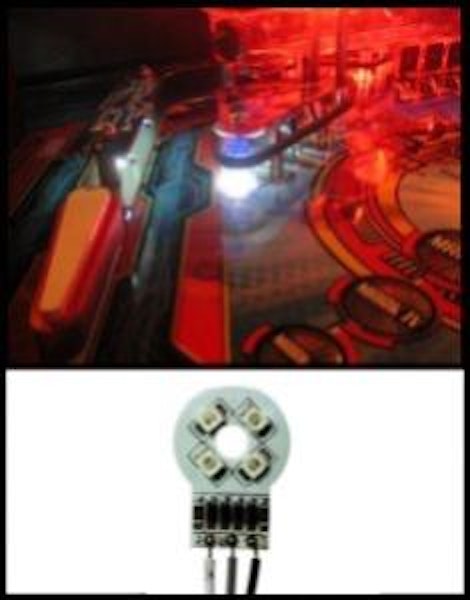

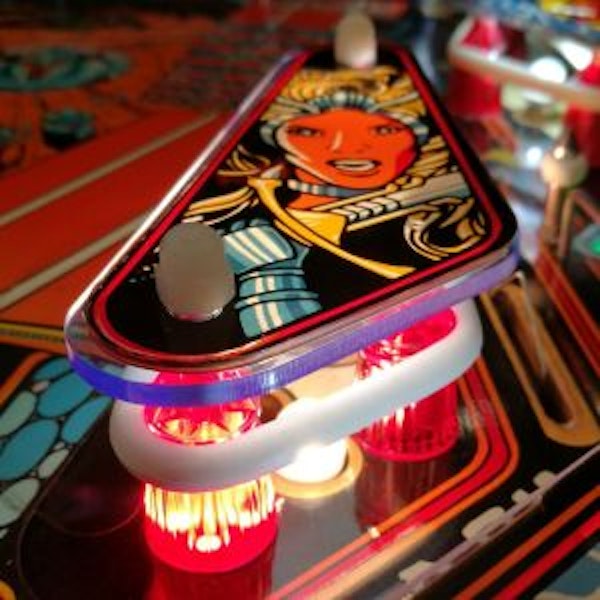

Make your playfield lightning pop with this popular game modification. 1-1/16 inch tall plastic star post is common to late model Stern, Sega, Bally / Williams and other brand electronic pinball machines.
This LED is designed ONLY for 6 VAC game lightning systems found in Williams, Bally, Data East, Sega, and Stern pinball machines. Will NOT operate in 5 VDC lighting systems from Jersey Jack Pinball, Spooky Pinball, and Dutch Pinball.
Fits neatly under any standard, single bumper ring 03-8319-XX plastic star post. Will not fit under double ring or concentric ring style posts.

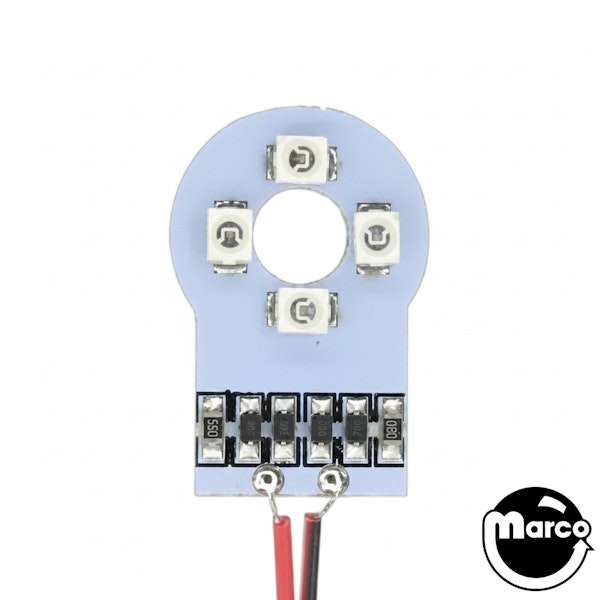

Includes LED board and wiring.
Reference:
03-8319-XX star post
INSTALLATION INSTRUCTIONS:
WARNING: Installation requires basic knowledge of electronic circuity and requires soldering.
1. Turn OFF power to the machine.2. Install LED board beneath desired star post. They should fit loosely under the plastic post.3. Position wires close to a playfield hole and avoid ball traffic areas. Feed the wires through hole to underside of playfield.4. For GENERAL ILLUMINATION of the post, connect the WHITE and GRAY wires to any nearby general illumination lamp. Post will light along with all general illumination lamps.5. To add SWITCHED ILLUMINATION flashing feature, connect the GRAY wire to the minus or negative side of a nearby coil or flash lamp. Posts will flash in sync with coil or lamp activation. This connection will cause the post light to dim slightly.6. Check all connections and secure excess wire with a cable tie away from moving parts.
