Flipper Rebuild Kit For Spooky Games From 2014 to 2017
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Ares your Spooky game's flippers struggling? This kit is the perfect answer for Spooky pinball machines made after 2018! It will replace the mechanical parts in your flippers that are feeling sticky, sluggish, weak, or dead.
This kit contains parts to rebuild both left and right flipper units. This kit includes flipper feeler gauge to assist in correct bushing to crank gap adjustment. Replacement flipper parts fit all SPOOKY PINBALL machines made after 2017 with Fliptronic® flippers*.
The factory recommends replacing flipper kits every half-million flips to keep your flippers performing to specification.*
*Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
.

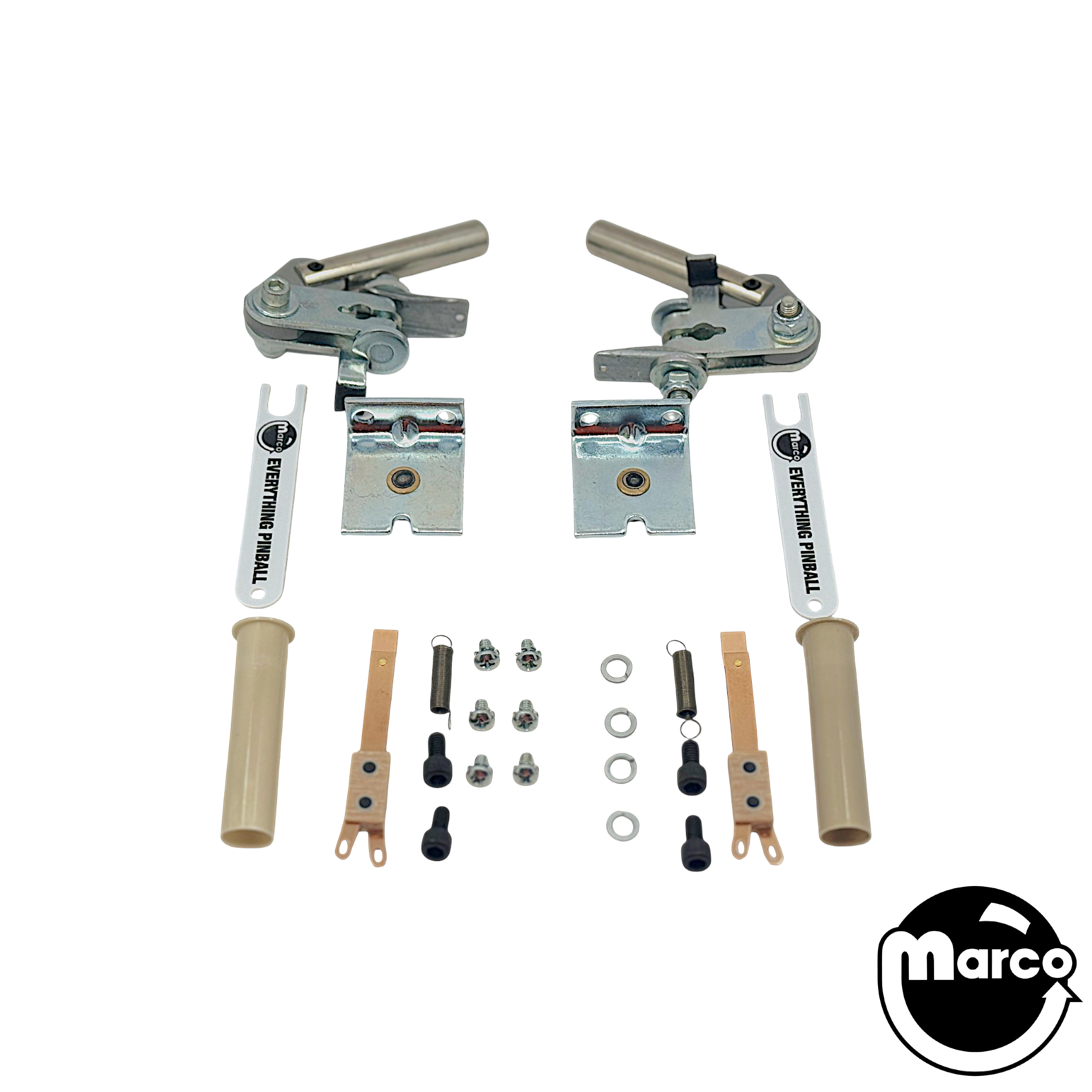

Parts included in this kit:
(1) A-15848-R - Plunger link & crank pawl Williams right
(2) A-12390 - Coil stop Williams/Bally
(2) SW-1A-194 - Leaf switch Williams End Of Stroke
(2) 265-5029-02 - Spring
(4) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket
(4) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc
(2) 03-7066-5 - Coil sleeve
(1) 03-8194 - Flipper Gauge
Reference:
WFLTRON-SPKY
WFLTRON
Select manufacturer to view game compatibility
Left side flipper unit Plunger- link-crank assembly
This is a flipper unit END OF STROKE (EOS) switch used on Williams / Bally...

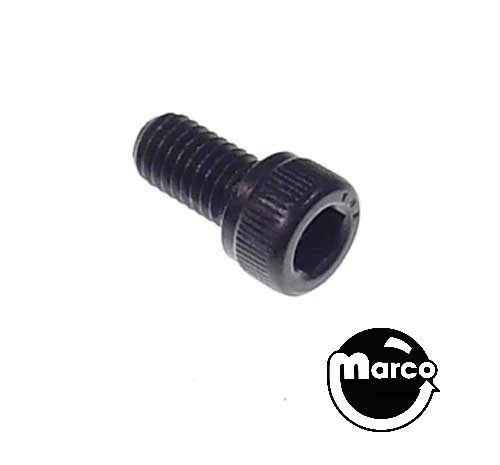

Black 10-32 X 3/8 hex socket head cap screw

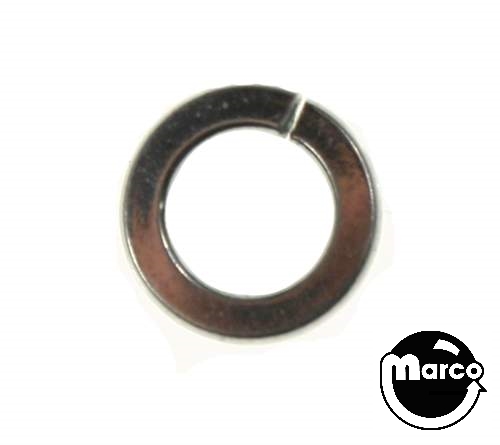

#10 steel split lock washer. Zinc plated.

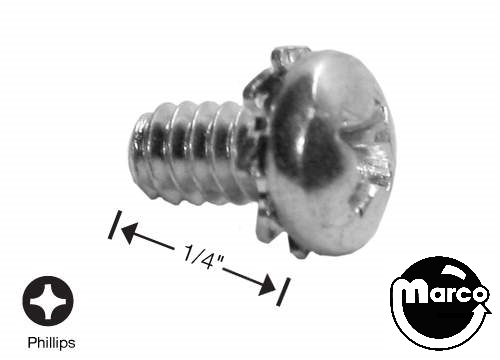

Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Right side flipper unit Plunger- link-crank assembly

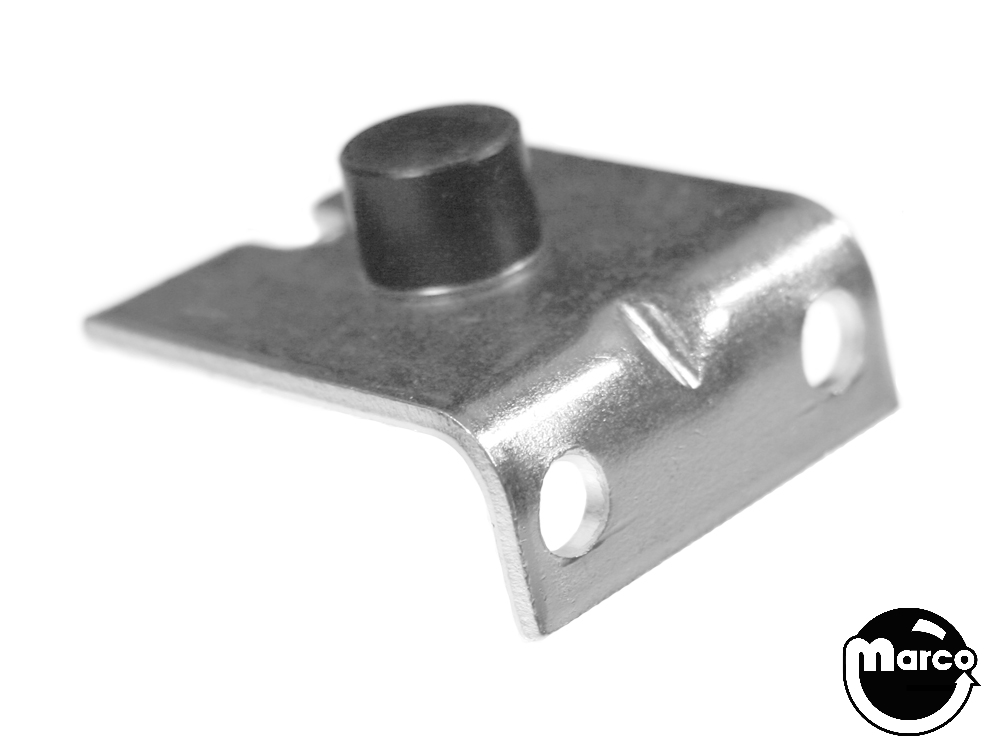

Later style coil stop used in Williams/Bally games from 08/1993 to 06/1999
Flipper return and drop target return spring
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Plastic thickness gauge for adjusting flipper bushing gap
