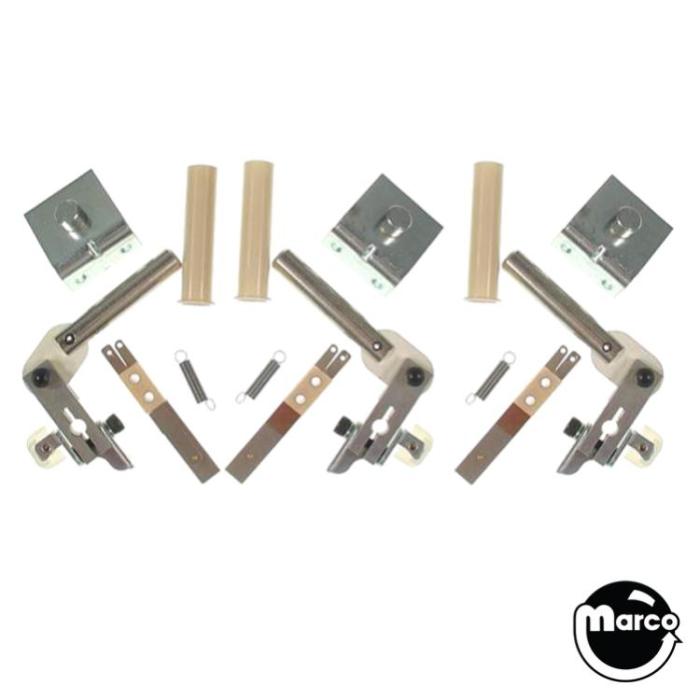

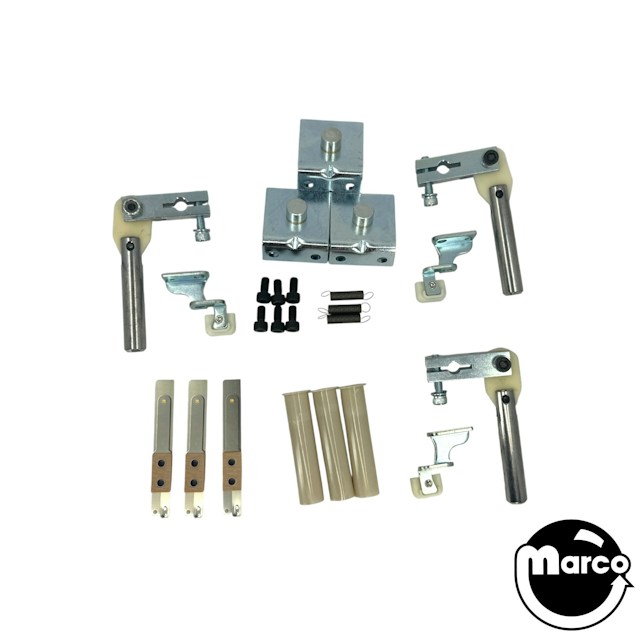

All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Compatible with late model Sega & post 2000 Stern pinball machines. Includes all mechanical components necessary to rebuild 3 flipper units (1 left & 2 right sides). Due to changes mid-production on Sega games such as BATMAN FOREVER, please closely inspect your flipper parts to determine if the Data East style crank is needed with the red plastic actuator and purchase the Data East rebuild kit instead.
Factory recommendations are replacing flipper components every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
This kit does not include flipper bushings, if you need them for your rebuild please buy it here:
(2) 515-7203-00 - Flipper crank assembly Stern right
(1) 515-7203-01 - Flipper crank assembly Stern left
(3) 03-7066-5 - Coil sleeve
(3) 515-6308-01 - Coil stop assembly Stern

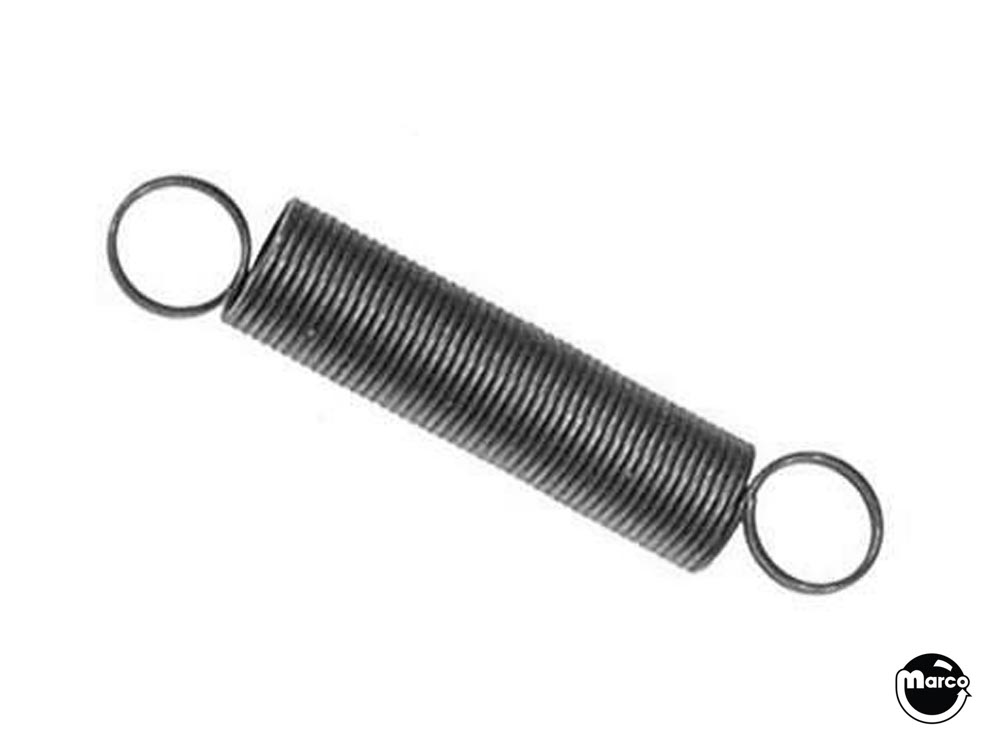

(3) 10-433 - Spring
(3) 265-5035-00 - Spring
(3) 180-5149-00 - Switch
(6) 4010-01066-06 - Cap screw 10-32 x 3/8 inch
Reference:
SFLKIT
500-6307-00 Stern right flipper kit
500-6307-10 Stern left flipper kit
