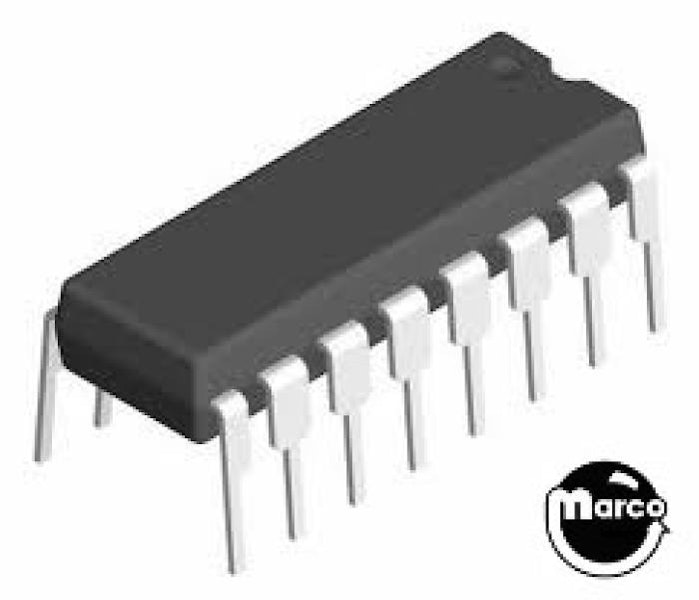

IC - 16 pin DIP analog delay line E-620-195
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Reticon SAD4096 Bucket Brigade Device IC
Reticon SAD4096 component in socket U2 on the Bally AS-2518-81 'Say It Again' module. Generates the echo effect for sound and speech.
Used in early Bally solid state pinball machines in conjunction with Squawk and Talk sound boards. Also used in early musical instrument analog sound devices.
Used in Bally CENTAUR and CENTAUR II pinball machines. SAD4096 IC located on the SAY IT AGAIN AS-2518-81 reverb board on the right side panel of the backbox, just at the right of the sound board.
Musicians can also use this board to replace the SAD4096 used in classic reverb boxes.
Plug and play: no soldering skills required.
Reference:
SAD-4096
E-620-195
AS-2518-81 Say It Again Module
PI-SAD4096
