Bucket Brigade module SAD4096 replacement
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

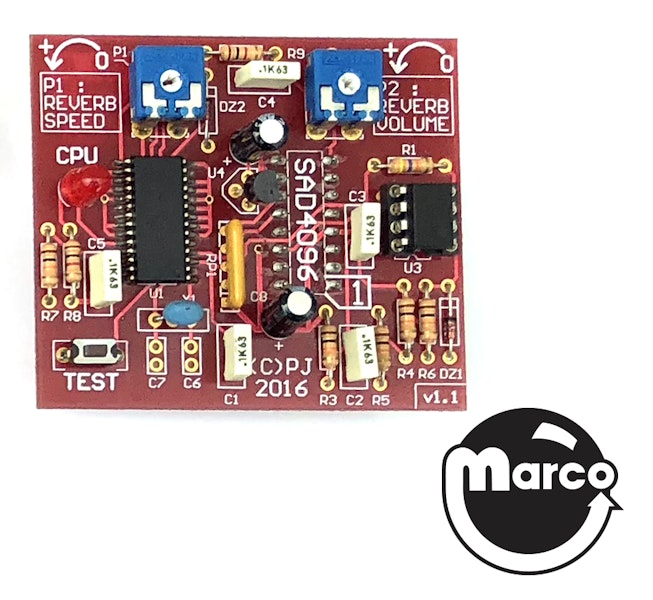

Replacement PI-SAD4096 Bucket Brigade Device satellite board
Replaces the obsolete Reticon SAD4096 component in socket U2 on the Bally AS-2518-81 'Say It Again' module. Includes new screwdriver adjust fine control VOLUME and SPEED potentiometers.
Used in early Bally solid state pinball machines in conjunction with Squawk and Talk sound boards. Also used in early musical instrument analog sound devices.
Used in Bally CENTAUR and CENTAUR II pinball machines. It replaces the very failure prone SAD4096 IC located on the SAY IT AGAIN AS-2518-81 reverb board on the right side panel of the backbox, just at the right of the sound board.
No more reverb (echo) on your Centaur pinball? It's very easy: pull the SAD4096 from its socket and install this board instead!
Plug and play: no soldering skills required.
Designed by Pascal Janin
WARNING: This board is designed to be used as a replacement in the Bally Say it Again board. Uses in an application that requires a SAD4096 that is not a Say it Again board may cause damage. Please contact us to ensure compatibility before use in any non intended applications!Reference:
FLIPPP-SAD4096
SAD-4096
E-620-195
AS-2518-81 Say It Again Module
PI-SAD4096
Select manufacturer to view game compatibility

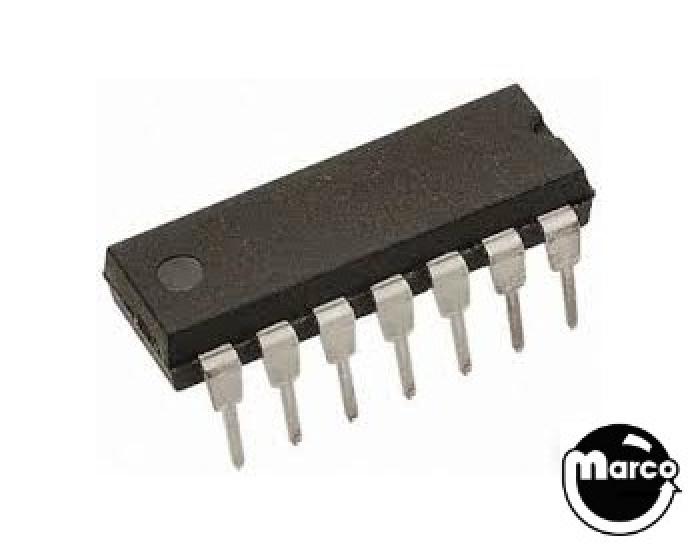

IC - 14 pin DIP operational amplifier
