ROLLERGAMES (Williams) Plastic Ramp
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

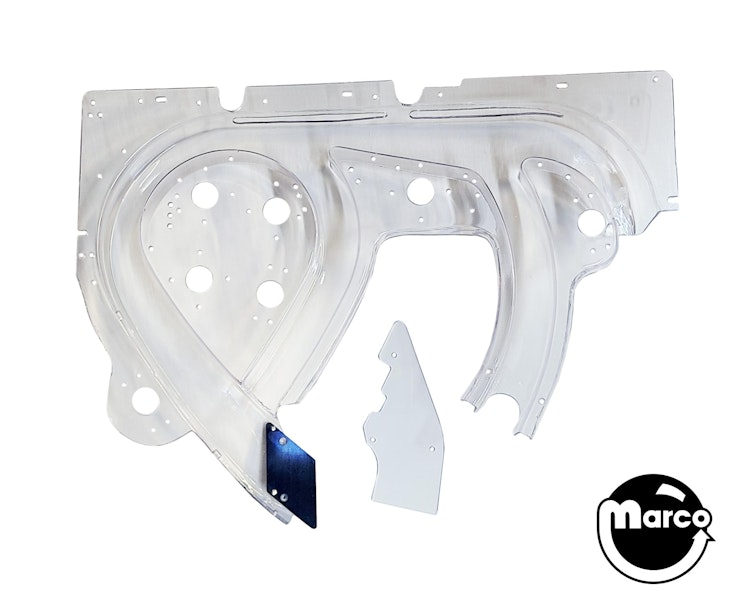

NEW upgraded plastic ramp assembly for the Williams Rollergames Pinball game.
Made from the same original 3/16" material as the original ramp, but with an upgraded molding process, the entrance to the ramp is no longer paper thin, and prone to cracking.
ADVISORY This ramp requires an above average amount of work to install!
You will have to transfer over the flasher boards and flasher domes from your original ramp. Remove them with care from your old ramp. The flasher dome holes are sized for 6-32 thread cutting screws. If your screws are gunked up and do not bite well, an 8-32 machine screw will fit the holes in the domes and thread nicely into these same holes. You could also use a slightly longer 6-32 machine screw with a nut. Take note as to the direction the domes are mounted. The rivet holes for the flasher boards are machined slightly larger than the dome screw holes.
Transferring over the gates and switches will require some soldering, because the wires are run through access holes in the ramp and will need to be disconnected and reconnected.
There are over 85 holes which have had to be reproduced in accurate locations on this ramp. Given the nature of pinball manufacturing, there is a good chance that your machine may have slight differences in some mounting hole locations. You may need to slot a hole or two to ensure fitment on your specific game. A rotary tool and a Dremel No.194 cutting bit for slotting holes is a perfect way to elongate these holes.
This is not a plug and play beginner friendly ramp install and we want to give full disclosure before customers decide to order. You should always be aware that any reproduction ramp may have to have some adjustments made to fit each specific game!
Reference:
R-13510 - Ramp Assembly
03-8378 - Plastic Ramp
Select manufacturer to view game compatibility

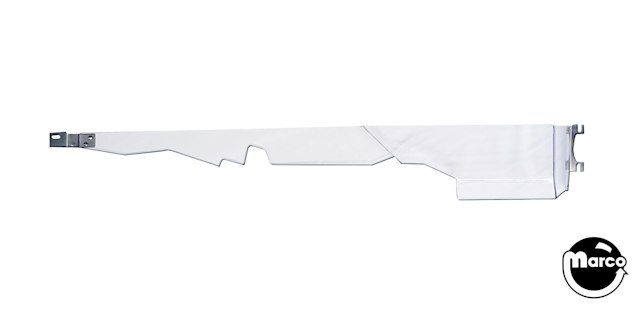

ROLLERGAMES (Williams) Ramp Cover
ROLLERGAMES (Williams) Coil stop

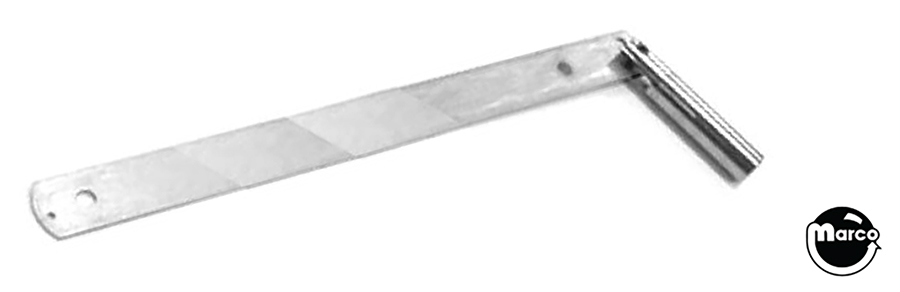

Plunger and link assembly
