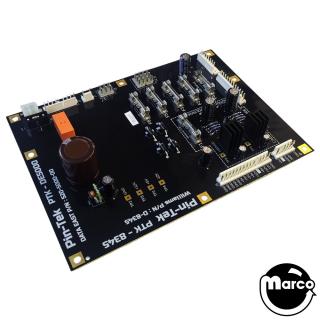

Power Supply board United/Williams D-8345 Data East REFURB
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

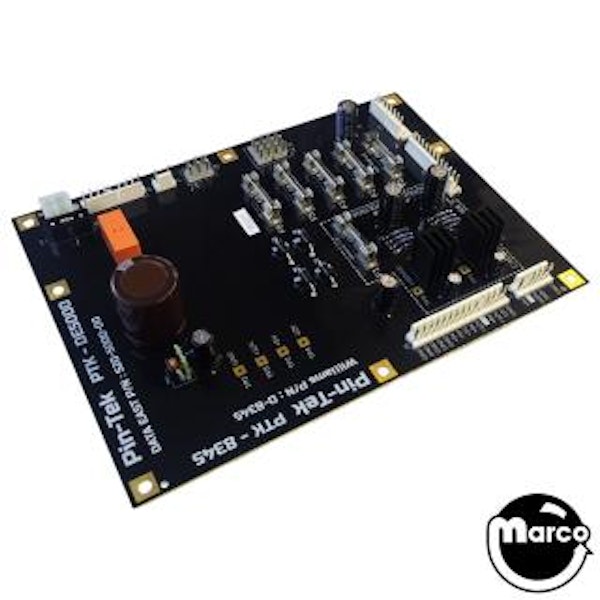

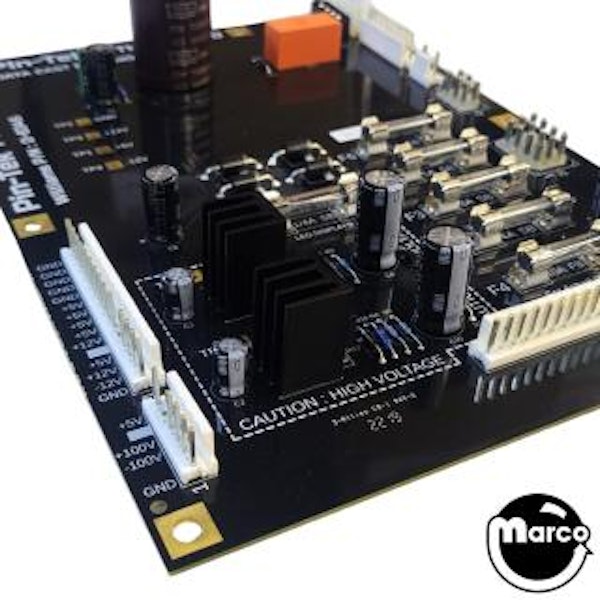

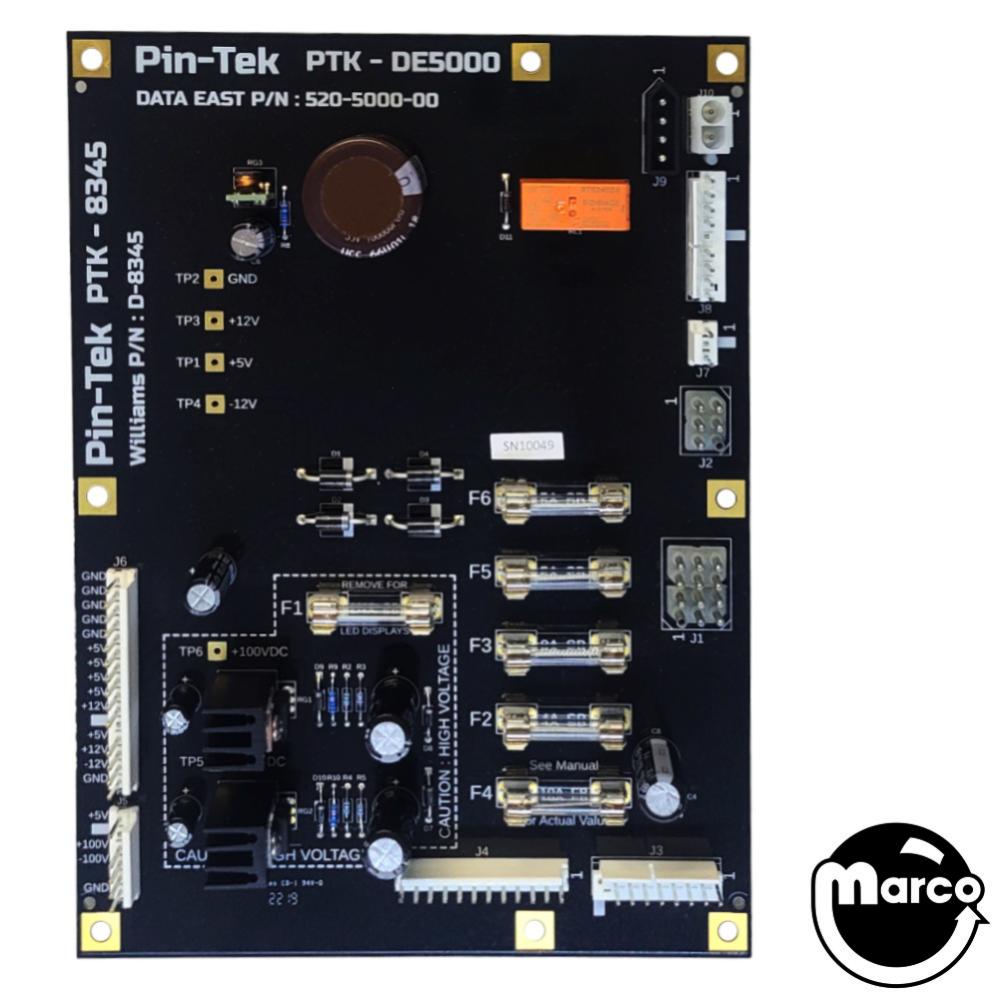

Refurbished Pin Tek drop in replacement for Data East, Williams pinball machines and United shuffle alleys using the Williams System 3 - 11A power supply board part D-8345 or D-7999.
Replaces original part number D-7999-XXX. (where XXX is the game model number)
For Data East dot matrix display games, use 520-5047-00 under related items below.
Features:
Plug and Play replacement
Thicker board for more stability to help reduce stress cracks
Power resistor upgraded to flame-proof Metal Oxide for safety
High Efficiency 5V Switch Mode power supply regulator
Obsolete components replaced with current high reliability production parts
This is a refurbished part, and as such it may have evidence of minor repairs, witness or other surface wear.
Reference:
D-7999-GP
D-7999
1D-2001-134 pcb
Williams D-8345
Data East 520-5000-00
Pin-Tek PTK-5000
