PINSCORE Display PS-10749-P System for Williams pinball machines. PIN CONNECTOR STYLE
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
NEW! PINSCORE Display Systems!
Brilliant design makes brilliant displays. New PINSCORE LED displays for pinball machines are the best performing, most feature-packed and economical replacement systems for obsolete glass plasma digital displays.
This system replaces Williams D-10749. Printed circuit is the board revision
PINSCORE Model PS-10749-P Display System model fits the following Williams pinball machines with pin connectors on the master board 5760-10846-XX:
COMET (Driver board with header style male/female connectors)
SORCERER (Driver board with header style male/female connectors)
SPACE SHUTTLE
CAUTION: These 3 games were built with two different circuit board styles. The controller board may have a card edge connector or header pin connectors. The CARD EDGE style PINSCORE model is PS-8363-P.
Features:
Plug & Play installation
Adjustable brightness
Pushbutton diagnostics
Low power consumption uses only 5V circuit & no high voltage
Beautiful black matte finish
Foam light shields prevent glare from surrounding general illumination lamps
Crisp alpha-numeric digits illuminate in original font & color
2 year warranty
Assembled in USA
RoHS compliant

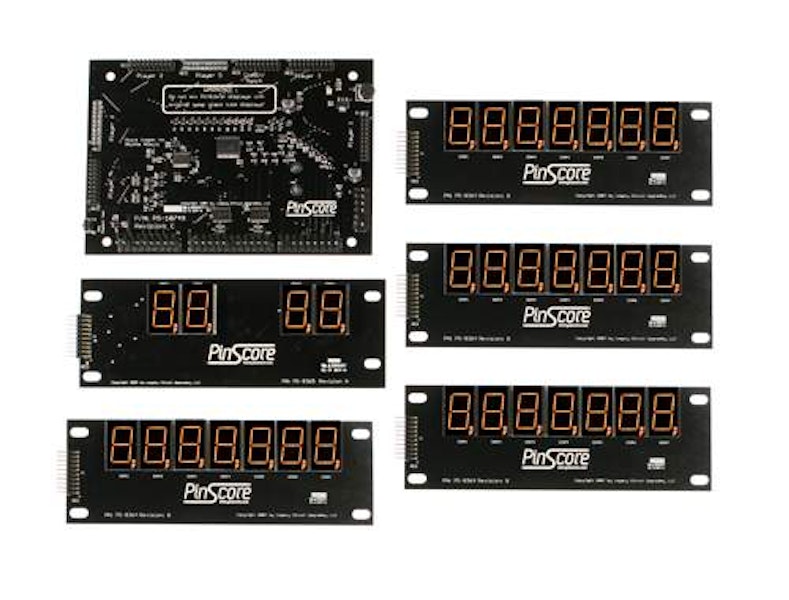

This system contains:
(1) PS-10749 PINSCORE Master Driver Board
(1) PS-8365 PINSCORE 4 digit LED Credit/Ball Display
(4) PS-8364 PINSCORE 7 digit LED Display Board
(1) PS-LS-6 Foam light shield for PS-8365 Credit/Ball Display
(4) PS-LS-7 Foam light shield for PS-8364 Score Displays
INSTALLATION INSTRUCTIONS:
INSTALLATION TIME: About 20 minutes
TOOLS REQUIRED: 1/4” Nutdriver
CAUTION: This PS-10749-P Display System CANNOT be used with any original display or driver boards. Damage to both new and old boards will occur if the systems are mixed. Please remove all original boards and install only these new boards.
Unplug the AC power from your pinball machine. Remove game backglass. Unscrew and remove all original glass displays, master driver board and all inter-board connecting cables.
Mount all new boards in their respective locations and only hand tighten the mounting screws. You may slide the LED display boards horizontally to adjust their positions for alignment with your backglass windows. If not already mounted, place the foam light shields on their respective LED display boards.
Connect the cables. You may re-use existing cables or optionally purchase new ones. Observe correct polarity on all ribbon cables - the red striped wires on all ribbon cables go to PIN #1 (also labeled as RED) on all boards.
Double-check all connections, plug in the machine, and turn the game on. The LED’s will light up. Pressing the DIAGNOSTIC pushbutton on the Master Driver board will illuminate all segments of all displays. This indicates that all boards and cables in the PINSCORE System are operating correctly. Use the thumbwheel BRIGHTNESS control on the Master Driver board to set your preferred illumination level.
PLAY PINBALL! You’ll enjoy your PINSCORE Displays for years to come!
