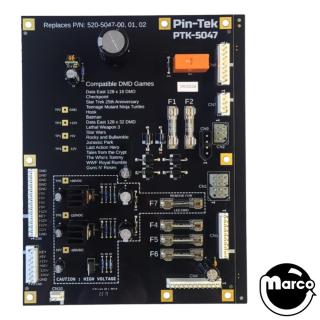

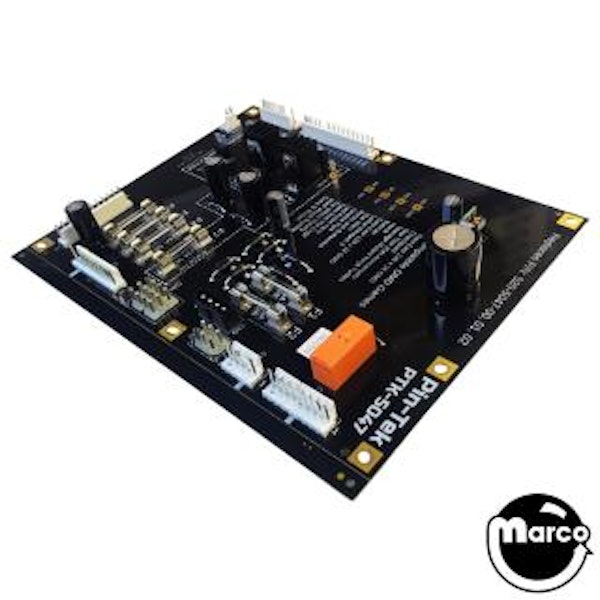

Power supply board DE 520-5047-00, 01, 02


Pin-Tek PTK-5047 Power supply board for Data East pinball machines with standard or small dot matrix displays.


  • Increased efficiency over original power supplies.
  • New switching regulator technology for efficiency and reliability.
  • Through hole components for ease of maintenance.
  • Clearly marked High Voltage fuse removal option for LED displays
  • Easy access Test points

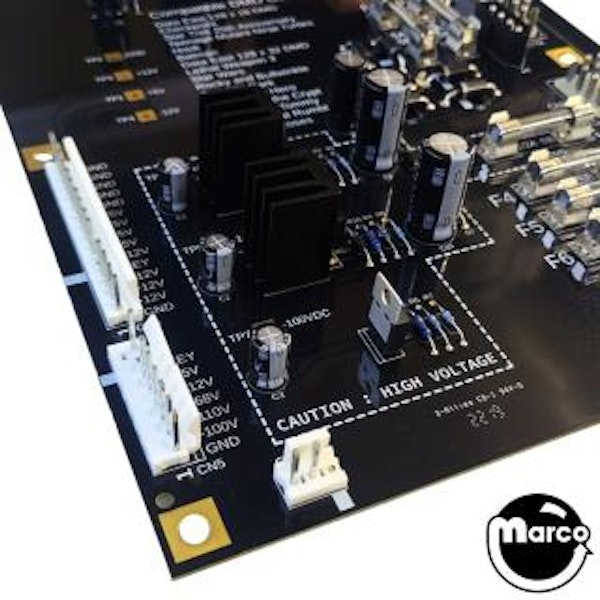

  • High voltage area clearly marked.
  • Matte black pcb.
  • Assembled in the USA

    Not for use in Sega games with large 192 x 64 DMD display (BAYWATCH, BATMAN FOREVER, MAVERICK, Mary Shelly's FRANKENSTEIN)

    For large 192 x 64 dot displays, see 520-5047-03 under related items tab below.


    • 520-5047-00
    • 520-5047-01
    • 520-5047-02
    • DPS005

1 lb
