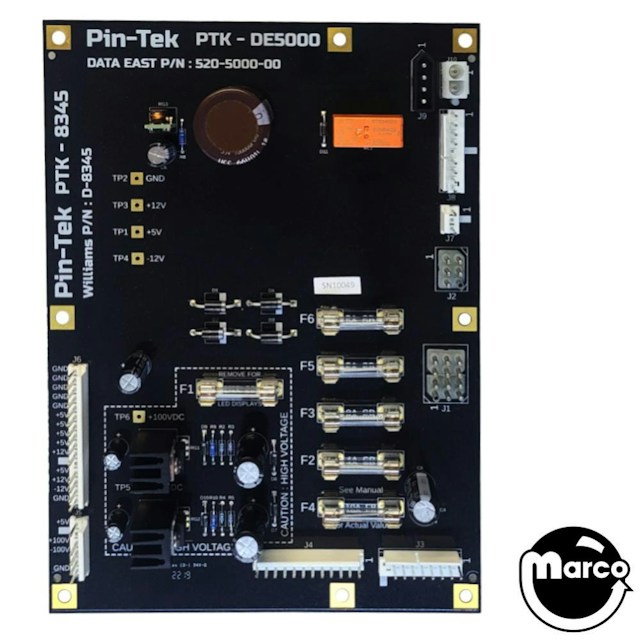

Power Supply board United/Williams/Data East D-8345
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
New, Pin Tek drop in replacement for Data East, Williams pinball machines and United shuffle alleys using the Williams System 3 - 11A power supply board part D-8345 or D-7999.
Replaces original part number D-7999-XXX. (where XXX is the game model number)
For Data East dot matrix display games, use 520-5047-00 under related items below.
Features:
Plug and Play replacement
Thicker board for more stability to help reduce stress cracks
Power resistor upgraded to flame-proof Metal Oxide for safety
High Efficiency 5V Switch Mode power supply regulator
Obsolete components replaced with current high reliability production parts
Reference:
D-7999-GP
D-7999
1D-2001-134 pcb
Williams D-8345
Data East 520-5000-00
Pin-Tek PTK-5000
Select manufacturer to view game compatibility

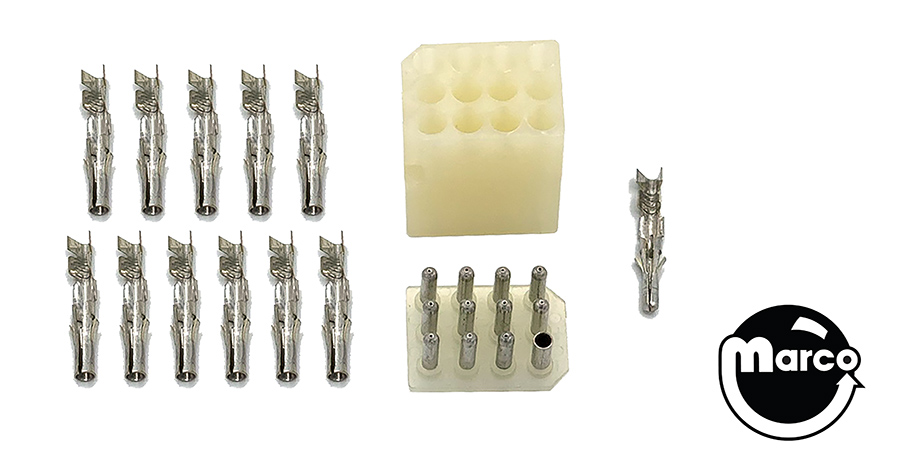

14 piece power supply connector rebuild kit fpr Data East / Williams boards

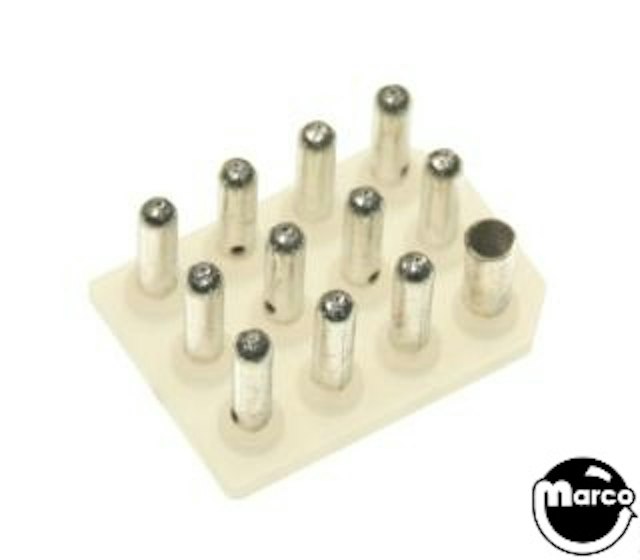

Connector pcb .093 inch 12 position wafer
12 position receptacle with no ears uses 0.093 inch crimp terminals.

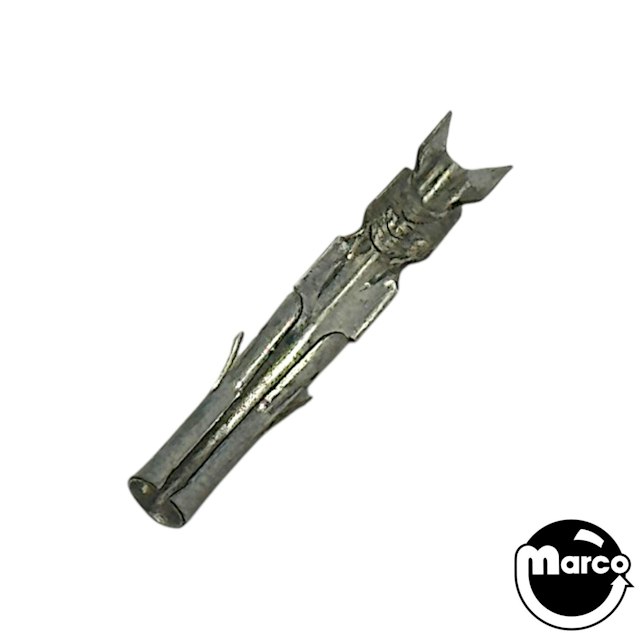

.093 female round Molex connector pin terminal that mates CT093M male.
USE 08-52-0113 AWG 18-20 wire

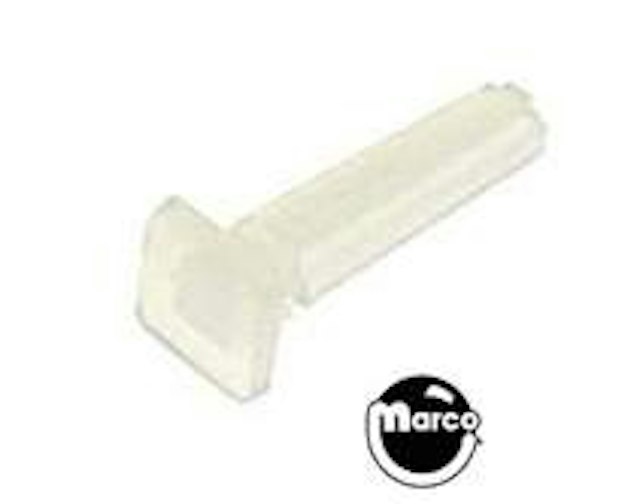

Plastic plug for keying .156" center spacing Molex female housings.

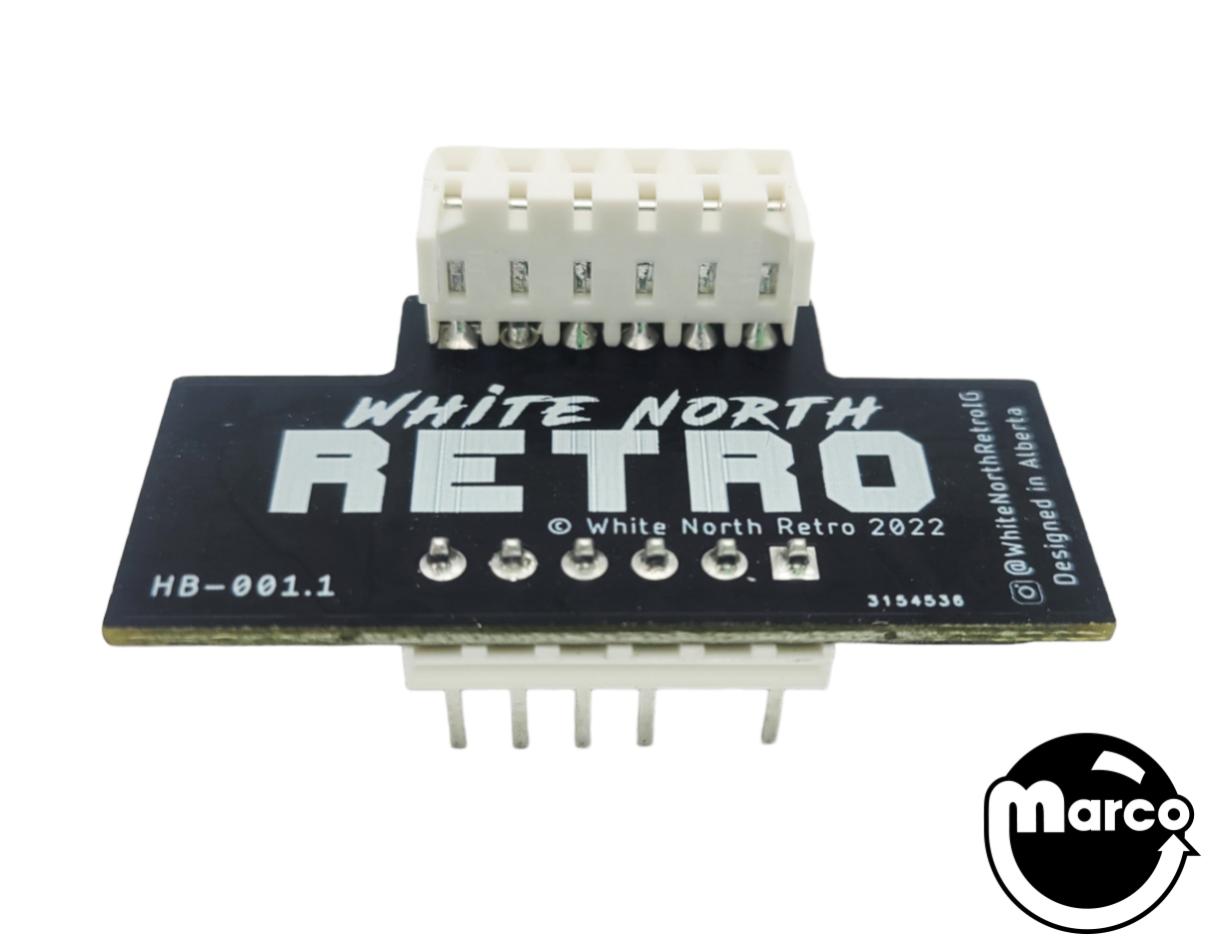

Humbucker noise filter for Data East pinball machines

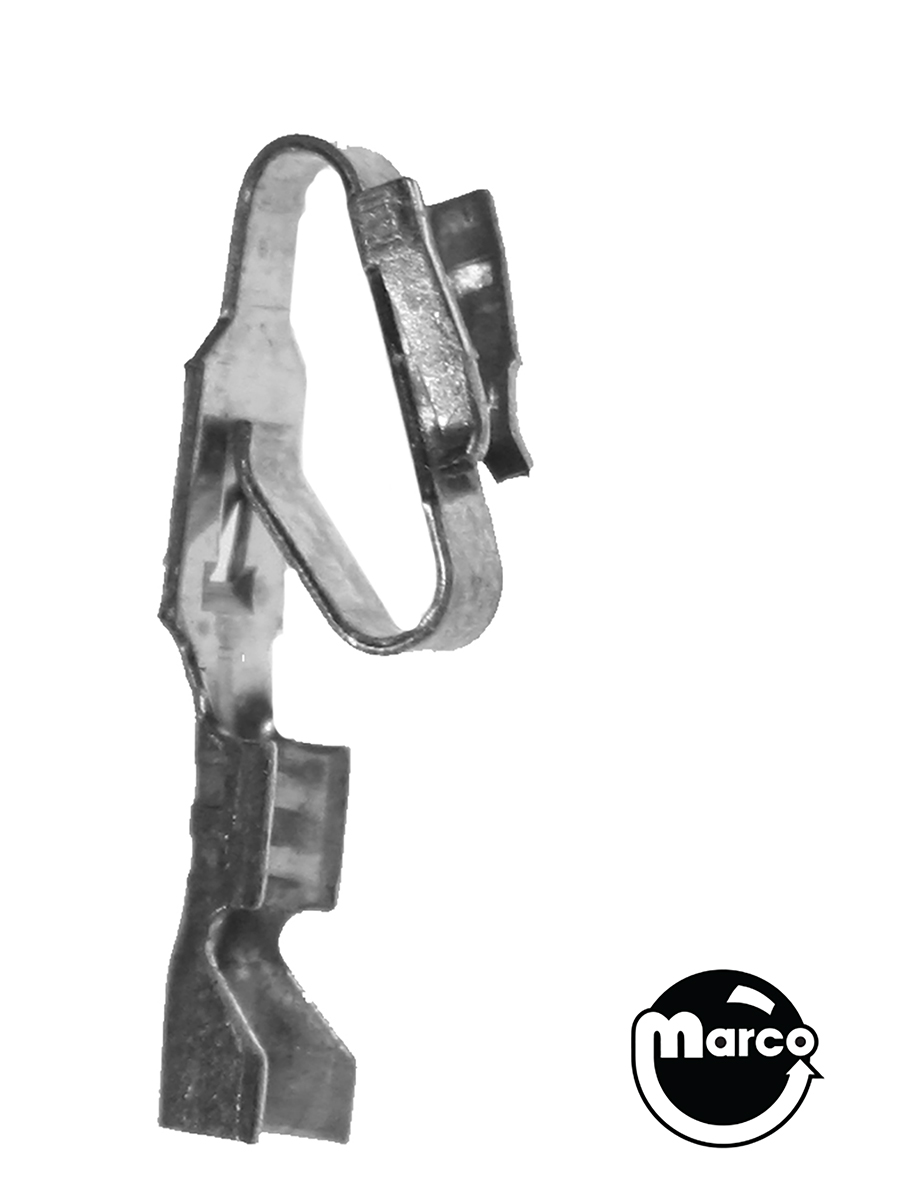

0.156 inch on center spacing Trifurcon crimp terminals for 22-26 AWG wire.

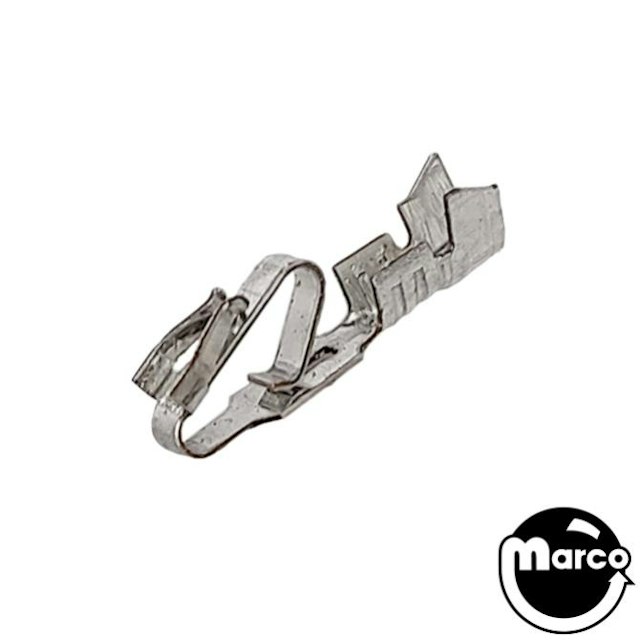

0.156 inch on center spacing Trifurcon crimp terminals for 18-20 AWG wire.
