NIP IT (Bally) Ball grabber bracket

#P-7810

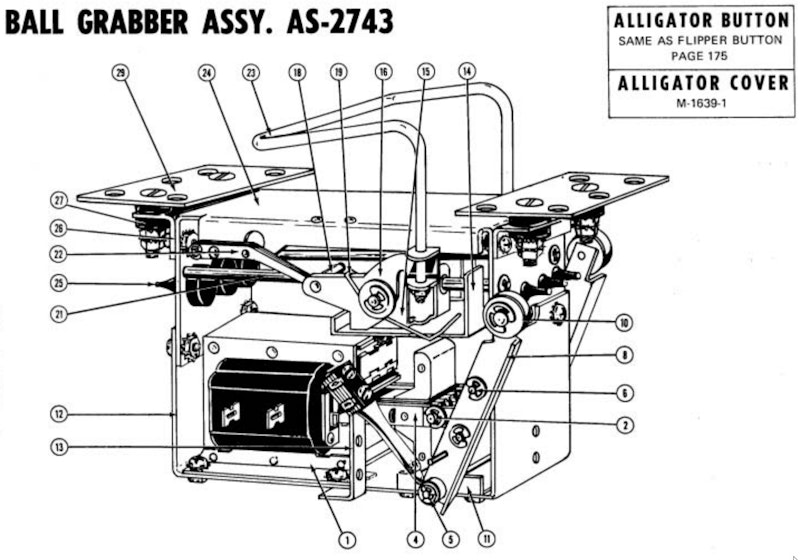

Bally NIP IT Alligator ball grabber assembly bracket.

Reference:

  • 1. E-184-276 Solenoid SECURED TO SOLENOID BRACKET BY
    4 Lock washer, external... M-1700
    4 Nut................. N-01032-2112
    4 Screw............... LSPR-01032-1106
  • 2. S-739-208 pin, link
  • 3. Split spacer not visible in sketch encases item 2
  • 4. P-1973-299 Link (4 used)
  • 5. S-739-207 Pin, Pivot
  • 6. S-181-70 Pin. Connector Link (2 used)
  • 7. R-111-40 Grommet (4 used) not visible in sketch encases item 6 above
  • 8. A-3573 Pivot arm & stud assembly. Cam & Stud assembly VISIBLE IN SKETCH..... A-3576-3
  • 9. A-3576-2 Pivot arm & stud assembly on opposite side of assembly from item 8, above
  • 10. S-2087 Roller (2 used)
  • 11. P-7812 Bracket, pivot secured to solenoid bracket by
    4 Lockwasher. external ... M-17008
    4 Nut. ................ N-00832-2112
    4 Screw ............... LSPR-00832-1106
  • 12. P-7810 bracket, solenoid
  • 13. AS-982-892
    Bracket P-126-672
    Screw (2 used) .......... MSSR-00540-11
    Switch ................ ASW-A2024
    Switch plate. ........... P-137-5
    SECURED BY SAME FASTENERS WHICH SECURE SOLENOID above. ... M-1481-42
  • 14. P-7811 carriage
  • 15. A-3571 bearing bracket & stud (2 used) EACH SECURED TO CARRIAGE BY 3 OF EACH FASTENER WHICH SECURES ITEM 11, ABOVE
  • 16. A-3572 grab arm bracket & hub VISIBLE IN SKETCH.
  • 17. A-3572-1 grab arm bracket & hub assembly ON OPPOSITE SlDE OF ASSY. FROM ITEM 16, ABOVE
  • 18. 5-231-787 bushing, nylon
  • 19. SP-256 spring, torsion
  • 20. SP-100-306 spring. extension not visible in sketch attached to underside of item 14 above
    Pin, guide (2 used)
  • 21. S-739-196
  • 22. A-3573 cam & stud
  • 23. M-1597 ball grab arm SECURED TO ITEMS 16.17 ABOVE BY
    2 Lockwasher, split. M-1705-6
    2 Screw, Torq patch, hexagon head. slotted 6-32 x 3/8

    • 24. A-3570 mounting bracket & stud SECURED TO SOLENOID BRACKET BY MEANS USED TO SECURE ITEM 11 ABOVE
    • 25. R-231-14 plug bumper (6 used)
    • 26. P-6665-326 bracket. Mounting (2 used) SECURED TO ITEM 24, ABOVE BY MEANS USED TO SECURE ITEM 11, ABOVE
    • 27. R-111-7 grommet (4 used)
    • 28. S-231-658 bushing (4 used) not visible in sketch, inside of item 27 above

      Miscellaneous components not all visible in sketch:
      C-537-3 Nyliner (6 used).
      retaining ring identified by shaft diameter:
      3/32 inch (1 used). ........ P-6316-1
      1/8 inch (1 used). ......... P-2891-2
      3/16 inch (18 used) ....... P-6316-4
      1/4 inch (2 used). ......... P-6316-6
      Washer
      5/8 inch dia. (2 used) ......... P-801-514
      11/16 inch dia. (2 used). ...... P-801-581
      Plain (4 used). ............. PW-008-12
