General Illumination update cable kit for WMS WPC Games
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

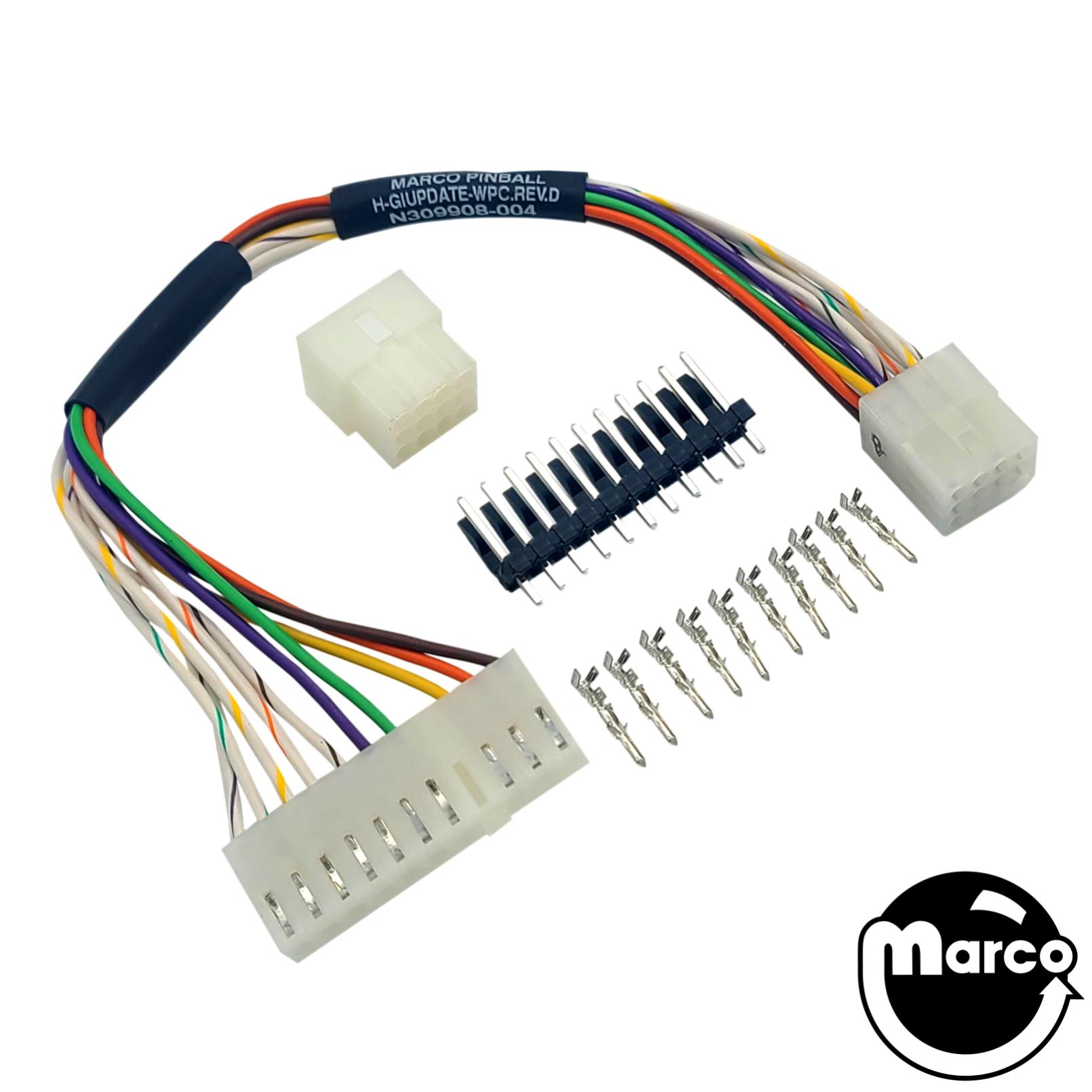

General illumination update cable kit for Williams WPC System games. Includes keyed male and female connectors.
Replacement parts for burnt connectors on WPC games. Replaces Playfield and Insert cables at J120 and J121.
Kit includes:
Update cable with Molex Trifurcon? pins
Keyed 11 pin .156 inch spacing header
12 pin Molex .062 inch diameter standard plug and crimping pins
4 Cable ties
INSTALLATION NOTES:
Additional tools required! Crimping tool, and a
Remove and replace the J120 or J121 header on your driver board. Remove keying pin (pin 4) from the header during install.
Cut back burnt playfield or backbox cable, strip wires and crimp on new pins, insert wires into connector to match mating connector on update cable. All wires terminate in the same position, so pin 1 is the same on both connectors, so on.
Reference:
H-GIUPDATE-WPC
Select manufacturer to view game compatibility

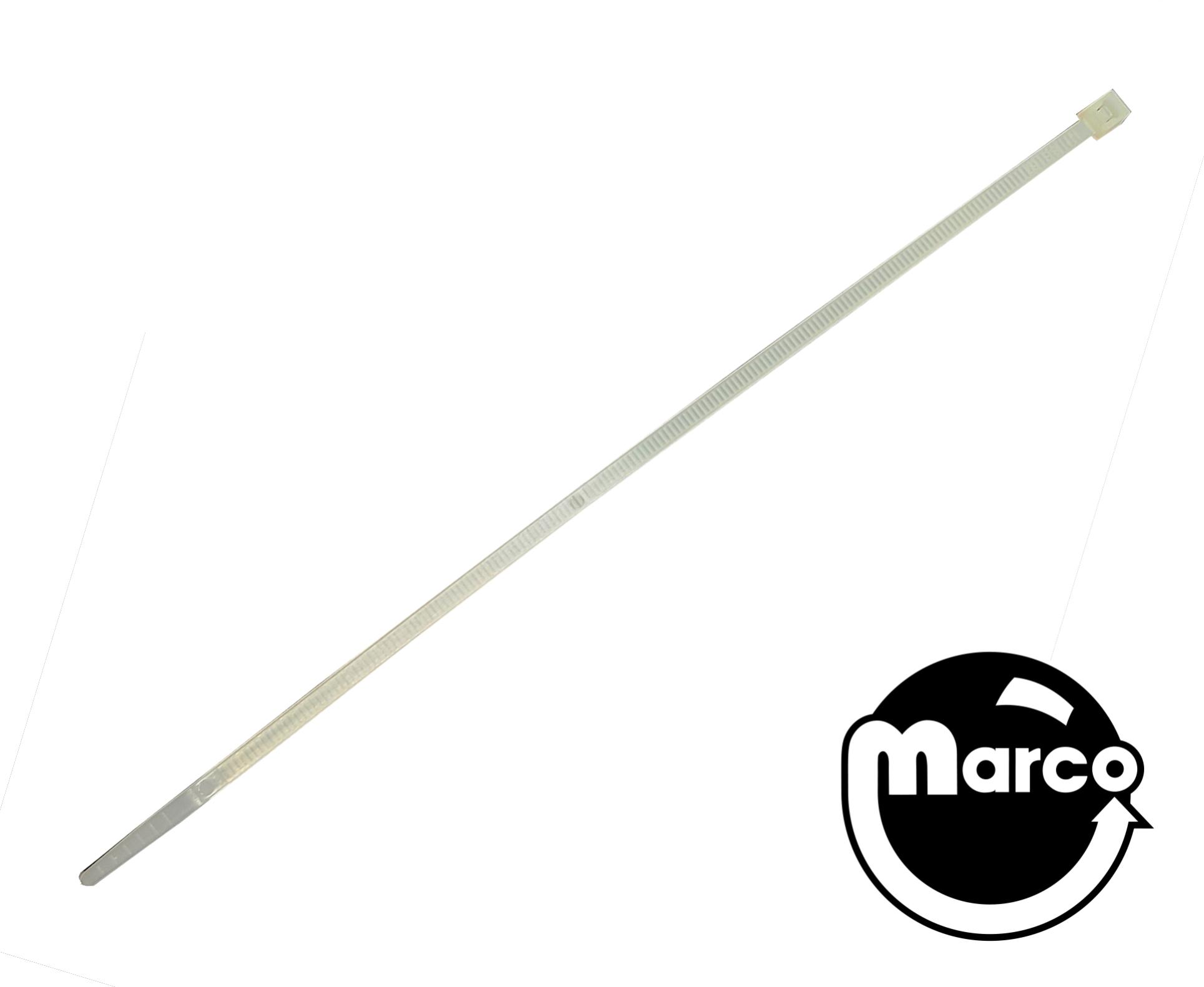

Cable tie 8-1/2 inch

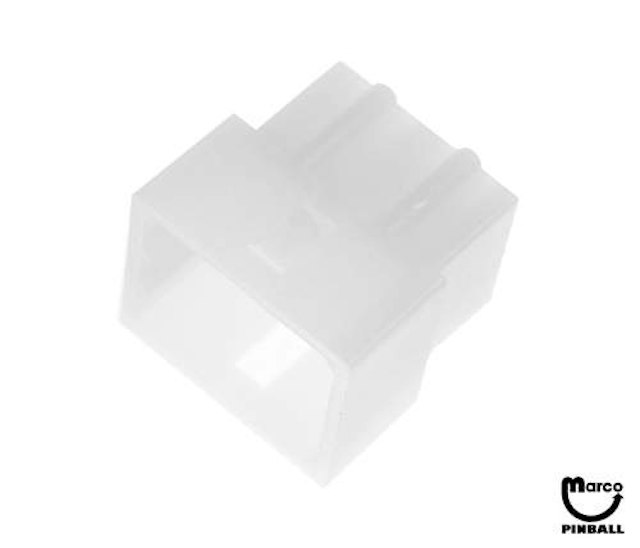

12 position plug uses .062 inch diameter crimp terminals. Reference: 579...
Crimp terminal .062 inch male
.156 inch spacing 11 position male Molex® header
General Illumination update cable for WMS WPC Games
